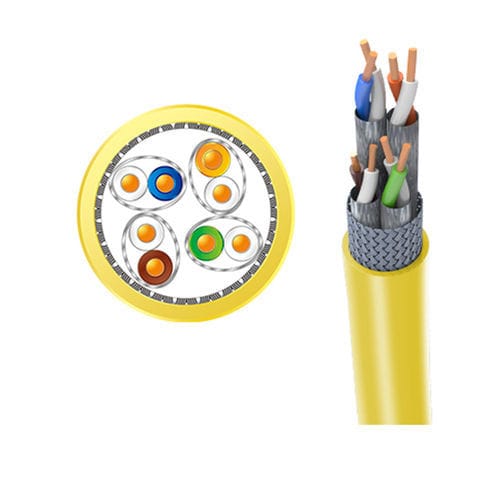

CAT 7 electrical cable LONGTRONIC®

dataEthernetoil-resistant

As a high-speed data cable, it can be applied to the generic cabling system of cloud computing center, large data room, office, residential area, factory and other buildings. It is especially suitable for the wiring of machines, equipment, instruments and control cabinets in industrial environments, and is suitable for limited flexible applications. Cable flame retardancy meets iec60332-1-2 Wire to aluminum foil shielding and tinned copper braiding Excellent anti external electromagnetic interference ability Pur sheath is particularly oil resistant and abrasion resistant Signal transmission frequency can reach 600MHz Conductor: stranded bare copper conductor Insulation: foamed PE Shielding: wire to aluminum foil shielding plus tinned copper braiding Sheath: PVC / pur / LSZH Color: yellow characteristic impedance 100±15Ω@100MHz insulation resistance ≥5GΩ.km Minimum bending radius Fixed application: 8D (d = cable diameter) Occasional movement: 15d (d = cable diameter) Reference standard IEC61156-5,EN50173&ISO/IEC11801
