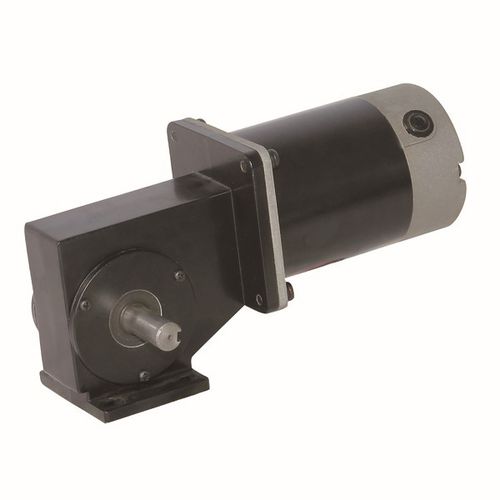

DC gear-motor 90JW/83ZY125

permanent magnetwormright angle

Motor type : Permanent magnet DC Motor Gearbox type : Worm/Right angle Size : DC motor:83mm,Gear motor:90mm No-load Current : 0.8A;0.9A Nominal voltage : 12V/24V or Customized Nominal speed : 1700rpm;2500rpm Permissible load range : Up to 10N.m for S1 duty cycle Nominal power : 42W;77W Compact design DC worm gear motor The 83ZY125 model of DC motor is equipped with a 90JW gearbox Options Left ,right or hollow output shaft are available. Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds up to 3000 RPM possible Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc. Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc.
