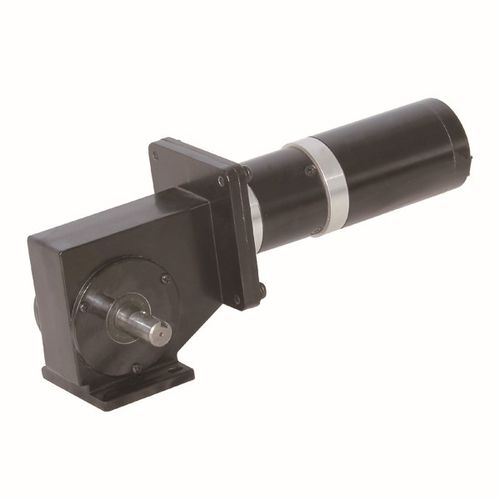

High-torque gear-motor 90JW/60JX/60ZY
DCpermanent magnetplanetary

high-torque gear-motor
high-torque gear-motor
Add to favorites
Compare this product


Characteristics

Motor type
DC, permanent magnet
Type
planetary, worm
Shaft orientation
right angle
Power
100 W...500 W, 10 W...50 W, 50 W...100 W, 0 W...10 W
Voltage
24 V, 12 V
Torque
1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm, 0.1 - 0.2 Nm, 0 - 0.1 Nm
Product applications
for automation, for industrial applications
Other characteristics
compact, low-noise, high-torque, custom, with encoder
Gear ratio

Min.: 106 unit

Max.: 1,175 unit

Description

Characteristics Motor type : Permanent magnet DC Motor Gearbox type : Mixed planetary and worm gearbox Diameter : DC motor:60mm Nominal voltage : 12V/24V or Customized Combined Ratio : 1:106;1:136;1;325;1:450;1:375;1:1175 Nominal speed : 2rpm;4rpm;6rpm;8rpm;11rpm;14rpm Permissible load range : Up to 20N.m for S1 duty cycle Nominal power : up to 150W Description Compact design DC motor is equipped with two gearboxes The 60ZY model of DC motor is equipped with a 90JW worm gearbox and a 60JX planetary gearbox Options Left ,right or hollow output shaft are available. Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning. Capacitor& resistor for EMC suppression Special shaft material and dimensions Custom design; OEM products available Features Ball bearing at output shaft Magnetic field generated by permanent magnets Operation in both directions of rotation(CW & CCW) Speeds up to 3000 RPM possible Various gear ratios enable either speed reduction or to increase the torque capability Advantageous torque with minimum space requirements Suitable for continuous, reversing and intermittent operation Can be installed in any mounting position Typical applications Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc. Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc., The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.
