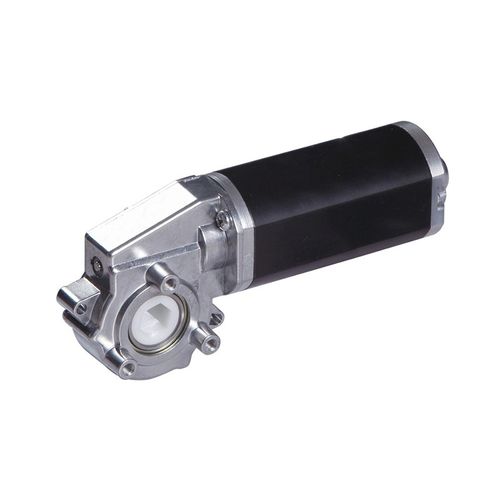

DC gear-motor F45ZY-23JWpermanent magnetwormright angle
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Performance
- high-efficiency, high-torque, low-noise
- Product applications
- for lifting applications, for furniture
- Gear ratio
18 unit, 36 unit
Description
1. Voltage: 12 ~ 60VDC
2. Gear Ratio: 18:1, 36:1
3. DC Motor Available ( OD ): 60mm, 52mm, F45mm
4. With 2 Hall Sensors
5. Reach, CE, RoHS compliance
6. Application: Table Lift, Furniture, Others
7. Solid Shaft Available Upon Request
DC RIGHT ANGLE GEAR MOTOR F45ZY-23JW SPECS AND FEATURE:
· Voltage 29V DC
· No-Load Speed 100rpm
· Max. Efficiency 38.3%
· Max. Efficiency Point 17.13Kg.cm@83rpm
· Stall Torque after Gearbox 100.79Kg.cm ( Stall Current 6.60A )
· Gear Ratio 36/1
