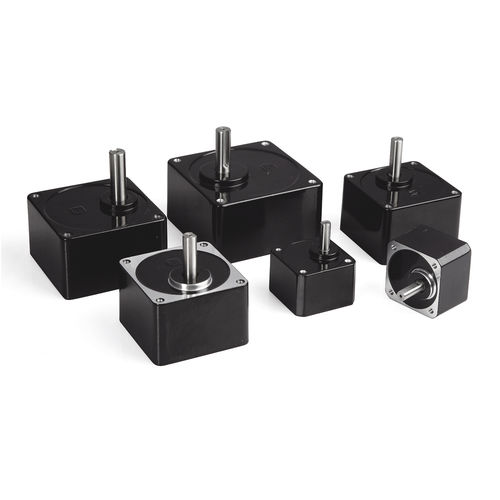

Spur gearbox JB JX JW Seriesparallel-shaftsolid-shafthollow-shaft
Add to favorites
Compare this product
Characteristics
- Type
- spur
- Shaft orientation
- parallel-shaft
- Shaft configuration
- solid-shaft, hollow-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 20 - 50 Nm, 10 - 20 Nm, 5 - 10 Nm
- Mounting
- shaft-mounted, foot-mounted
- Configuration
- compact
- Number of stages
- multi-stage, two-stage
- Performance
- low-noise, high-efficiency, high-torque, maintenance-free, for heavy loads
- Applications
- transmission, for agricultural machinery, for the chemical industry, for automation, for conveyor, for heavy-duty applications, fishing boat, for food industry machinery, for robotics, industrial, packaging machine, for continuous operation
- Other characteristics
- custom-made, high-quality, mechanical transmission, combined
- Rotational speed
Min.: 5 rpm
(31.4159 rad.min-1)Max.: 500 rpm
(3,141.5927 rad.min-1)100 rpm
(628.3185 rad.min-1)- Power
Min.: 0.01 kW
(0.01 hp)Max.: 1 kW
(1.36 hp)200 kW
(271.92 hp)
Description
DYD Parallel Shaft Gearbox Series
Parallel Shaft Gearboxes / Spur Gearboxes
Gearbox Dimensions ( Frame ): 42JB ~ 180JB
Gear Rations: 3:1 ~ 500:1
Optional Motors: Brushed DC Motor, Brushless DC Motor, Stepping Motor, AC Motor, AC Synchronous Motor
