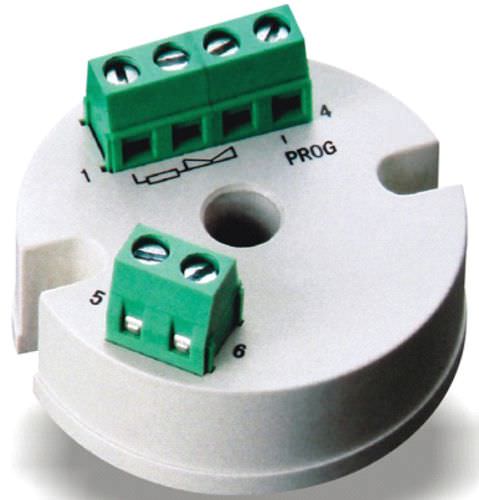

Probe head-mounted temperature transmitter CE, -20

thermocouple4-20 mAprocess

TST-181 series integration temperature transm- itter module is a kind of field installation type tem- perature transmitting unit. It USES two wire mode (power input and the signal output of two root pu- blic conductor), output and measured temperature. Temperature Transmitters is muti-input for the most common Pt100All Type of thermocouple. Temperature Transmitters is especially convenient for being mounted in sensor connection head. TMT-181 MiniBlock is a cost-effective 2-wire ,programmable temperature transmitter for head mounting. It’s wildly used in the connection head of thermocouple and RTD’s sensor.The input signals could be 2 or 3 wires PT100 and all kinds of thermocouples, doing the linerization of the input signals,and output 4-20mA standard signal. Users could program it with our programmer or handhold instrument MD-1. TMT-181 MUTI_INPUT MiniBlock is part of head mount 4-20mA temperature transmitter for the most common temperature applications. One single model can be configured to accept several measuring ranges. Input: Muti-input Measuring Range: Program With our programmer or handhold instrument MD-1 Handhold Instrument Maximun Range: Full Range Two wire loop powered 4-20mA output 2 0r 3-wire Pt100 with linearization All Type of thermocouple Power supply: 10-30V DC Operating temperature:-20 to +50 deg.C Dimensions: 44mm(Diam)*24mm(H,including bores)
