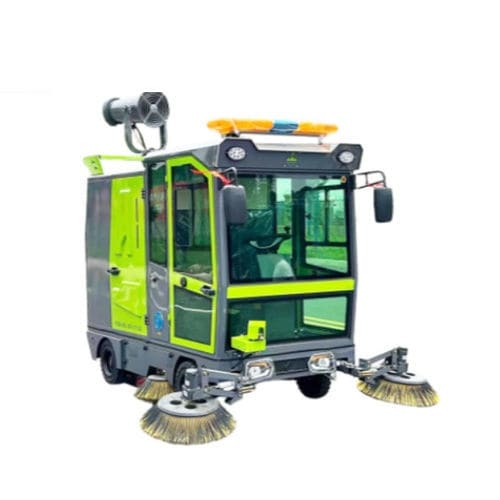

Ride-on suction sweeper YG-25

electricbattery-poweredstreet

Overview
YG's electric sidewalk sweeper provides an efficient, eco-friendly solution for street and sidewalk cleaning in urban environments, parks, campuses, hospitals and other public spaces. It reduces labor costs, minimizes emissions and improves cleaning productivity while being suitable for dense foot-traffic areas.

Featured Models (examples shown on page)

• Model: YG-25
  • Cleaning width: 2500MM
  • Main brush width: 800MM
  • Work efficiency: 20000-35000 m²/h
  • Operating hours: 3-8H
  • Trash bin capacity: 220L
  • Side brush diameter: Front 700mm / Rear 600mm
  • Walking speed: 14 km/h
  • Water tank: 300L
  • Vacuum filtration area: 10 m²
• Model: YG-2000
  • Sweep width: 2200MM
  • Work efficiency: 22000 m²/h
  • Grade ability: 25%
  • Main brush length: 800MM
  • Power source: 48V 150AH
  • Side brush diameter: 2 × 550MM
  • Continuous working hours: 6-8H
  • Trash capacity: 260L
  • Drive motor power: 2000W
  • Water tank capacity: 100L

Key Features

• Sweeping Width: Range from approx. 1500 mm to 2500 mm to suit various tasks.
• Working Time: 4–8 hours per charge depending on model and battery specification.
• Vacuuming Power: Effective for removing dust, leaves and small debris; equipped with vacuum filtration area on some models.
• Smart Control Panel: Intuitive operation and real-time monitoring on supported models.

Core Technical Advantages

• Battery-powered: Uses high-performance batteries (examples: 48V 52Ah / 58Ah / 100Ah / 150Ah) for low emissions and quiet operation.
• Smart Navigation: Adjustable cleaning modes and route optimization on some configurations.
• Durable Design: Corrosion-resistant materials and robust structure for long service life.
• High Efficiency: Select models advertise cleaning capacities up to 20,000–35,000 m²/hour depending on configuration.

Sidewalk Sweeper Parameter (table extracted from page)
Model | YG-1 | YG-2 | YG-3 | YG-4
Sweeping width (mm) | 1260 | 1400 | 2000 | 2100
Main brush width (mm) | 500 | 700 | 700 | 800
Working capacity (m2/h) | 6500 | 8500 | 16500 | 18500
Trash can capacity (L) | 80 | 120 | 180 | 220
Water tank (L) | 30 | 130 | 100 | 100
Side brush width (mm) | 450 | 500 | 500 | 500
Working speed (km/h) | 8 | 8 | 12 | 15
Working time (h) | 6-8 | 3-4 | 4-5 | 6-8
Charging time (H) | 5-6 | 3 | 4 | 5-6
Net weight (kgs) | 380 | 480 | 870 | 950
Battery | 48V 52Ah | 48V 58Ah | 48V 100Ah | 48V 150Ah
Dimension (mm) | 1500*1160*1200 | 1600*1400*1250 | 2250*1900*1900 | 2400*2050*1950

Applications

• Parks and recreational areas
• City streets and community cleaning
• Schools, hospitals and institutional campuses
• Winter snow removal variants (mini snow sweepers) for light snow/ice clearing in cold regions

Client Case (summary)
Deployment in São Paulo, Brazil: municipal use in parks and street cleaning resulted in an improvement in cleaning efficiency (reported ~40% improvement over three months) and significant labor cost reductions. The reported feedback highlighted improved cleaning process efficiency and good environmental performance.

Features and Technical Advantages (concise)

• Multiple model options with varying sweep widths, brush sizes and bin capacities
• Battery-powered platforms with varying battery capacities for different operating durations
• Vacuum filtration systems and water tanks for dust suppression
• Smart control and adjustable cleaning modes on selected configurations
• Robust, corrosion-resistant construction for durability

Specifications

• Sweeping widths: approx. 1260 mm up to 2500 mm depending on model
• Main brush widths / lengths: 500 mm, 700 mm, 800 mm (model dependent)
• Side brush diameters: single 450–700 mm or dual 2×550 mm
• Working efficiency: from ~6,500 m²/h up to ~35,000 m²/h depending on model
• Trash bin capacities: 80 L, 120 L, 180 L, 220 L, 260 L (model dependent)
• Water tank capacities: 30 L up to 300 L (model dependent)
• Battery options: 48V series (examples on page: 52Ah, 58Ah, 100Ah, 150Ah)
• Drive motor example: 2000W (YG-2000)
• Working speed: typical ranges 8–15 km/h
• Operating duration per charge: typical 3–8 hours depending on battery and model
• Charging time examples: 3–6 hours depending on battery
• Net weights: examples 380 kg to 950 kg depending on model
• Dimensions (examples): from 1500×1160×1200 mm up to 2400×2050×1950 mm
