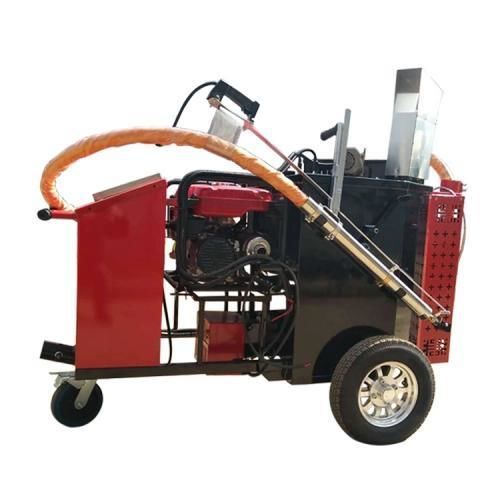

Asphalt crack sealing melter and applicator YG series

manual

Product overview
In asphalt pavement maintenance, unsealed cracks allow water intrusion that causes subbase failure and potholes. A crack seal machine injects hot-applied modified bitumen or crack sealant deep into fissures under pressure to create a watertight bond and extend pavement life by 3–5 years at a fraction of the repaving cost.

Key benefits

• Reduce Maintenance Costs: Preventive sealing is far less expensive than large-scale asphalt repairs.
• Increase Daily Productivity: Professional crack sealing equipment with heated hoses can deliver 2,000–3,000 linear meters of output per day for typical crews.
• Extend Pavement Service Life: Properly applied hot-applied rubberized sealant prevents water damage and stops crack propagation.
• Field operator tips: Always clean and dry the crack first. Use a road router and hot air lance to remove dust and debris to improve sealant adhesion. Run the pump in reverse for ~60 seconds at the end of the day to clear residual material from the hose.

Small Crack Seal Machine Parameter (table rows)
Model | YG-50L | YG-60L | YG-80L
Hopper volume | 50L | 60L | 80L
Discharge method | Self flow | Asphalt pump feed | Asphalt pump feed
Heating method | Liquefied gas | Liquefied gas + heat transfer oil | Liquefied gas + heat transfer oil
Temperature control | Temperature sensor 180 ° (temperature control call) | |
Filling speed | 10 m/min | 15 m/min | 15 m/min
Walking mode | Push-type + brake device | |
Mixing method | Manual mixing | |
Power configuration | Solar panels + batteries | Yamaha gasoline generator + battery | Solar panels + batteries
Dimensions | 1200 X 700 X 1200 mm | 1200 X 700 X 1200 mm | 1200 X 700 X 1200 mm
Weight | 120 kg | 120 kg | 250 kg

Large Crack Seal Machine Parameter (table rows)
Model | YG-100 | YG-200 | YG-350
Filling Capacity | 100 L | 200 L | 350 L
Heating Time | 30 min | 30–40 min | 30–40 min
Temperature Range | 0–200 °C | 0–200 °C | 0–230 °C
Discharge Capacity | 0–12 L/min | 8 L/min | 0–30 L/min
Generator | 2.3 kW | 2.8 kW | 5 kW
Walking Mode | Manual or Traction | Manual or Traction | Trailer or Self
Burner | Riello 445T1 Diesel Engine | Riello 445T1 Diesel Engine | Riello 445T1 Diesel Engine
Thermostat Control | SLA-5000 Temperature Controller | SLA-5000 Temperature Controller | SLA-5000 Temperature Controller
Length of Electric Heating Tube | 4–5 m | 4–5 m | 6–7 m
Dimensions | 1350*1000*1900 mm | 2400*1400*1700 mm | 3500*1000*2000 mm
Weight | 240 kg | 860 kg | 1000 kg

Applications (summary)
Municipal streets & residential roads | Recommended: 50L–100L walk-behind crack filler machines | Compact design for narrow streets
Highways & arterial roads | Recommended: 200L–350L towable/self-propelled units | Fast melting (30–40 min) and 7 m heated hose for continuous work
Airport runways & large plazas | Recommended: 350L–500L truck-mounted hydraulic equipment | Digital PLC control and high-pressure output for smooth finish
Parking lots & industrial parks | Recommended: 100L–200L trailer-type machines | Easy transport; processes 200–300 kg sealant daily

How to select a high-performance crack seal machine — 4 key factors

• Heat transfer oil indirect heating system: Prefer indirect thermal oil jacketing with a reliable burner (for uniform heating and to avoid scorching sealant).
• Electrically heated constant-temperature hose: Choose 5–7 m heated hoses with a Teflon inner lining and integrated sealing tips to prevent blockages and maintain flow.
• Smart two-way agitation system: A kettle with 360° vertical hydraulic or electric bidirectional agitation reduces melt time (30–45 min) and prevents bottom buildup.
• Reliable engine and reversible material pump: Use trusted engine/generator brands and a material pump with variable speed and reverse pumping to clear hoses after work.

Real client case (summary)

• Client profile: Road maintenance contractor working on interstate highways.
• Problem: Older low-end machine clogged frequently and took >1.5 hours to melt material, limiting output to under 800 m/day.
• Solution supplied: A YG-200L towable crack seal machine configured with an Italian Riello burner, a Honda engine, and a 5 m heated hose.
• Results: Heating time reduced to ~35 minutes; smooth flow and reverse pumping enabled >2,200 m/day, improving operational efficiency by ~40%.

Caractéristiques / spécifications techniques

• Model series: YG (examples include YG-50L, YG-60L, YG-80L, YG-100, YG-200, YG-350)
• Hopper / filling capacities: 50 L, 60 L, 80 L, 100 L, 200 L, 350 L (models up to 500–600 L available on larger configurations)
• Heating methods: Liquefied gas; liquefied gas + heat transfer oil (indirect thermal oil jackets recommended)
• Temperature control: Temperature sensors and SLA-5000 temperature controller on larger units; operating ranges up to 0–230 °C depending on model
• Discharge capacity: 0–12 L/min (YG-100), ~8 L/min (YG-200), 0–30 L/min (YG-350)
• Generators / engines: Options include 2.3 kW, 2.8 kW, 5 kW generators; Riello 445T1 diesel burner on larger models; option for Honda/gasoline engines on auxiliaries
• Walking / mobility modes: Push-type walk-behind with brake, manual or traction, trailer-towed or self-propelled, truck-mounted hydraulic for large applications
• Heating accessories: Electric heated hoses (4–7 m lengths), electric heating tubes, thermostat and temperature controllers
• Mixing / agitation: Manual mixing on smaller units; 360° vertical hydraulic/electric bidirectional agitation on higher-end kettles
• Typical dimensions & weights (example ranges): small units ~1200×700×1200 mm and 120–250 kg; larger units range up to 3500×1000×2000 mm and 860–1000+ kg
• Key operational outputs: Typical 200 L unit supports 2,000–3,000 linear meters/day with a standard 4–5 person crew, applying ~200–300 kg sealant/day
