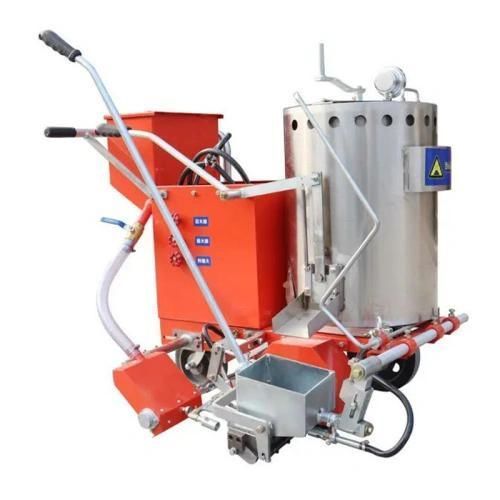

Walk-behind paint striping machine

hydraulicroadmanually-operated

Overview
Choosing the wrong road marking machine leads to downtime, material waste, and failed inspections. Thermoplastic lines last 2–4 years while cold paint lines last only 3–6 months. Picking the right unit optimizes budget, schedule, and line durability.

Applications / Where to deploy

• Highways and Arterial Roads: Use a thermoplastic road marking machine. Heating paint to 180°C–210°C produces durable lines (1.5–1.8 mm thickness) that dry in seconds and offer high visibility.
• Parking Lots and Residential Paths: Opt for a cold paint road marking machine or a manual thermoplastic unit such as YG360 / YG380. Standard 150 mm screed boxes help navigate tight corners.
• Speed Bumps and Warning Zones: Use a raised-profile thermoplastic marking machine to lay 3–5 mm raised bumps in a single pass for tactile alerts.
• Old Line Removal and Surface Prep: Pair marking equipment with a line remover (example: YG1050) and a road blower to clear debris and old paint for solid adhesion.

Comparison — Thermoplastic vs Cold Paint
Feature / Metric | Thermoplastic Road Marking Machine | Cold Paint Road Marking Machine
Line Thickness | 1.5 – 1.8 mm | 0.2 – 0.4 mm
Service Life | 2 – 4 Years | 3 – 6 Months
Drying Time | Extremely Fast (~6 seconds) | Slower (1–2 hours)
Required Setup | Needs a pre-heater for max speed | Works as a standalone unit
Daily Output | 60 m² (solo) / 300–2000 m² (with pre-heater) | 500 – 2500 m²

Materials, Mix Ratios & Performance
Thermoplastic application requires melting powder paint. Typical mix guidance: 1 ton thermoplastic paint : 1 bucket primer : 4 bags of glass beads for reflective grip. Cold paint systems spray liquid paint under high pressure (example unit YG-13L hydraulic airless operating at ~8–25 MPa). Coverage per ton: standard thermoplastic ~220 m²; profile raised paint ~120 m²; one ton cold spray paint ~70 m².

Key Practical Features to Inspect

• Line Width and Screed Boxes: Check for interchangeable screed boxes. The YG series supports widths from 50 mm to 450 mm.
• Power Source: Electric thermoplastic models (example: 48 V, 15 AH lithium battery) can run up to two days per charge; gasoline engines (example: Honda 5.5 HP) suit remote jobs.
• Pre-Heater & Agitation: Mechanical dual-kettle pre-heaters are suited for mid-sized projects (600–800 m²/day). Hydraulic double-kettle models (YG800 / YG1000 / YG1200) with bi-directional mixing can yield up to ~2000 m²/day.
• Spare Parts & Serviceability: Keep extra copper nozzles, copper sleeves, screed box grounding knives, and spray tips on hand to reduce downtime.

Operational Tips

• For indoor or underground garages, consider electric models (e.g., YG380S) or electric cold sprayers to eliminate exhaust and reduce noise.
• If daily coverage target exceeds ~300 m², include a pre-heater with the marking cart to avoid heating downtime and increase continuous output.

Global Case Study (summary)
A contractor using a single hand-pushed marking cart achieved only ~60 m²/day. By supplying one YG1000 hydraulic double-kettle pre-heater and two YG380 marking carts with continuous hot material supply, daily production rose to over 1500 m²/day and the project was delivered ahead of schedule while reducing labor costs.

How to adjust line thickness and width

• Thermoplastic units: adjust screed box bracket height for thickness and swap screed boxes for width.
• Cold sprayers: adjust spray gun height to change width (typical adjustable range 5–45 cm).

FAQ (selected)

• How much area does 1 ton of road marking paint cover? One ton of standard thermoplastic paint covers ~220 m²; profile raised paint covers ~120 m²; one ton of cold spray paint covers ~70 m².
• How do you adjust line thickness and width? On thermoplastic units, change screed box height and swap boxes for width; on cold sprayers, change spray gun height (5–45 cm) and nozzle settings.

Technical specifications

• Thermoplastic melting temperature: ~180°C–210°C.
• Thermoplastic line thickness: 1.5–1.8 mm (standard); raised profile: 3–5 mm.
• Cold paint line thickness: 0.2–0.4 mm.
• Thermoplastic drying time: ~6 seconds; cold paint drying: 1–2 hours.
• Typical mix for thermoplastic: 1 ton paint : 1 bucket primer : 4 bags glass beads.
• Cold spray system pressure example: 8–25 MPa (YG-13L reference).
• Daily output examples: thermoplastic solo ~60 m²; with pre-heater 300–2000 m²; cold paint 500–2500 m².
• Screed box width range: 50 mm – 450 mm.
• Electric battery spec example: 48 V, 15 AH (up to ~2 days per charge).
• Gasoline engine example: Honda 5.5 HP for remote/harsher sites.
• Pre-heater model examples: YG800, YG1000, YG1200 (mechanical and hydraulic versions available; hydraulic double-kettle yields higher daily output).
• Recommended spare parts: copper nozzles, copper sleeves, screed box grounding knives, spray tips.
