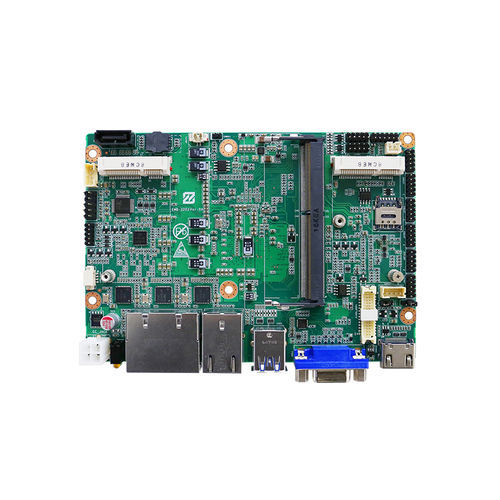

3.5" motherboard EMB-3203Intel® Kaby Lake ProcessorIntel® Skylake ProcessorIntel®
Add to favorites
Compare this product
Characteristics
- Format
- 3.5"
- Processor
- Intel® Kaby Lake Processor, Intel® Skylake Processor
- Chipset
- Intel®
- Memory
- DDR4 SDRAM
- Applications
- industrial
- Connectivity
- LVDS, HDMI, VGA, Ethernet, eDP
Description
➢ Operating temperature support -20~60°C
Function - Support wake up and PXE
GPIO - Header Pin - 2 x GPIO 16bit
Audio - Chipset - Integrated High Definition Audio Stereo (ALC897)
Header Pin - 1 x Audio
Other - Button - 1 x Clear CMOS(Header Pin) 1 x Remote SW(Header Pin)
LPC/TPM/SMBUS - 1 x LPC/TPM/SMBUS
Power Supply - ATX 1 x 4Pin
Power - Adapter - 12/19/24V, Max 5A
Consumption - 60W
Standby Power - under 0.5W
Physical - Dimension (L*W) - 146*101 mm
Color - Green
Operation Temperature - -20~60#C
Environmental Conditions - Operation Humidity - 5-95% (non-condensing)
Storage Temperature - -40~80#C
Storage Humidity - 5-95%
Random Operating - 0.5g rms/5 - 500Hz
