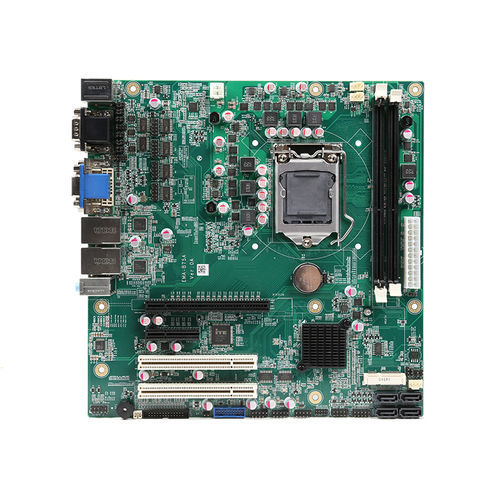

Micro-ATX motherboard ZRT-EMA-B75AIntel® Core i5Intel® Core i3Intel® Core i7
Add to favorites
Compare this product
Characteristics
- Format
- micro-ATX
- Processor
- Intel® Core i5, Intel® Core i3, Intel® Core i7, 3rd generation Intel® Core™, Ivy Bridge, x86
- Chipset
- Intel®
- Extension slot
- PCI Express
- Applications
- industrial
- Connectivity
- USB, VGA, DVI-D
Description
• Based on Intel Ivy Bridge platform
• Support multiple PCI/PUI-E expansion, support multiple serial ports, multiple USB interfaces
• Working temperature support -10~60°C
Max. Speed -
L3 Cache -
TDP (W) -
Chipset - Intel PCH B75
BIOS - AMI 64MBit SPI
Graphics - Controller - Intel HD Graphics
Connector -
Audio - 1 x Line In
1 x Line Out
1 x MIC In
Seria -
GPIO - 1 x 8bit GPIO (1 x 2.54mm_2*5Pin)
Power Requirements - Power Type - ATX
Power input Voltage -
Power Consumption -
Environment - Operating Temperature - -10°C - 60°C
Storage Temperature - -40°C - 85°C
