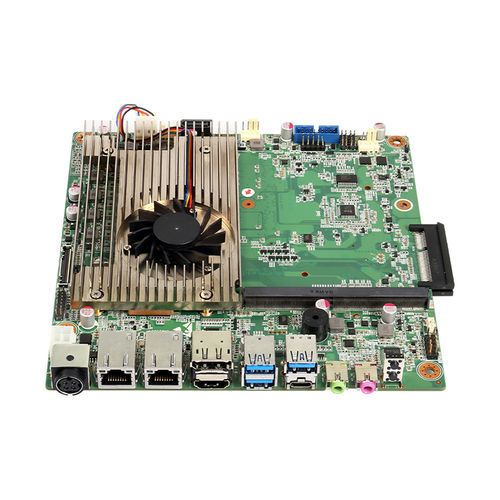

Mini-ITX motherboard ZRT-ITX-71101quad-coreIntel® Skylake ProcessorIntel® Kaby Lake Processor
Add to favorites
Compare this product
Characteristics
- Format
- mini-ITX
- Processor
- quad-core, Intel® Kaby Lake Processor, Intel® Skylake Processor
- Chipset
- Intel®
- Memory
- DDR4 SO-DIMM
- Extension slot
- SATA, PCI Express
- Applications
- industrial
- Operating system
- Linux, Windows 10, Windows 7
- Memory frequency
- DDR4 3200 MHz, DDR4 3600 MHz
- Connectivity
- USB 2.0, USB 3.0, HDMI, RJ45, DisplayPort, eDP
Description
• With EDP output port (integrated display)
• With one-key restore function
• With one-key off-screen
Max. Speed - 3.2GHz/3.5GHz/3.5GHz/3.8GHz
L3 Cache - 6 MB
TDP (W) - 45 W
BIOS - AMI EFI BIOS 64M
Max. Capacity - 64G
Graphics - Controller - Intel® HD Graphics 530
Ethernet - Controller - Realtek RTL8111H
SATA - Max Data Transfer Rate - SATA 6Gb/s
Q'ty - 1
Audio - 1* Line OUT
1* Mic(using ALC662 chip)
Extended Display Port
Power Requirements - Power Type - DC
Power input Voltage - 12V-19V DC,
Power Consumption - /
Environment - Operating Temperature - 0-50℃
Storage Temperature - -40°C - 70°C
Physica - Dimensions - 170mmX170mm
