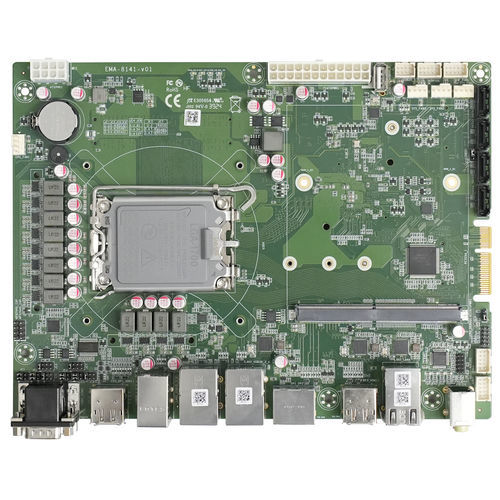

ATX motherboard EMA-8141

13th Generation Intel® Core™14th Generation Intel® Core™Intel® Alder Lake-S

The newly launched Alder Laker-S/Raptor Lake-S based motherboard EMA-8141 is originally designed for a mobile DR equipment. It can also be applied to multiple applications such as machine vision, edge AI and industrial automation. Here are main features: - 1*MXM slot for expanding GPU module - 243.8*180mm Chipset - Integrated High Definition Audio Stereo(ALC897) I/O - 1*Line Out - 1 *MIC In Header Pin - 1*lineOut+1 x MIC ln(1*2.54mm_2*5Pin) ESPI - 1 *ESPI(2.0mm_2*5Pin) Watch Dog - 255Level F Panel - 1 *F_Panel(2.0mm_2*5Pin) Power Type - ATX power supply, support ATX/AT mode(jumper head), DC ATX 24+8 input, support SO, S3, S4, S5 RTC - Limited 3.3V/210mAH Operating Temperature - 0~60°C Storage Temperature - -20~80°C Operating Humidity - 95%8i40°C(non-condensing) Dimensions - 243.8*180mm PCB color - Green
