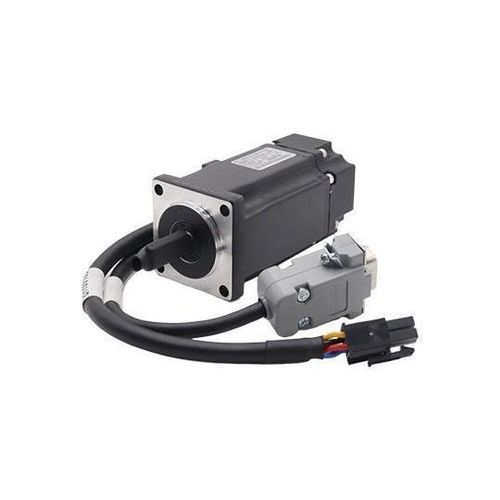

Servomotor CA 40B series

220 Vde alta velocidadeperformance

Features: 17-bit or 23-bit absolute value photoelectric encoder, with high quality and high responsiveness; Speed: Excellent high-speed performance, rated speed can generally reach 3000 rpm, maximum speed can reach 6000 rpm; Adaptability: Strong overload resistance, can withstand load three times the rated torque, especially suitable for occasions with instantaneous load fluctuations and requiring quick start; Stability: Smooth operation at low speed, no step operation phenomenon similar to stepper motors will occur during low-speed operation. Suitable for occasions with high-speed response requirements; Opportunity: The dynamic response time of motor acceleration and deceleration is short, generally in tens of milliseconds; Comfort: Heat and noise are significantly reduced. Product Specifications: ModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Length (mm) BST-M003302201.390.320.4889.8 BST-M00330Z2201.390.320.75137.8 Motor Specifications: Model40BST-M00130 (Standard)40BST-M00130Z (With brake)40BST-M00330 (Standard)40BST-M00330Z (With brake) Rated Power (W)5050100100 Rated Torque0.159 N·m / 1.62 kcf·cm0.159 N·m / 1.62 kcf·cm0.318 N·m / 3.25 kcf·cm0.318 N·m / 3.25 kcf·cm Detent Torque0.159 N·m / 1.62 kcf·cm0.159 N·m / 1.62 kcf·cm0.318 N·m / 3.25 kcf·cm0.318 N·m / 3.25 kcf·cm Max Instantaneous Torque0.56 N·m / 5.71 kcf·cm0.56 N·m / 5.71 kcf·cm1.11 N·m / 11.3 kcf·cm1.11 N·m / 11.3 kcf·cm Rated Speed (rpm)3000300030003000 Max Speed (rpm)6000600060006000 Rated Current (A)0.77 (0.86 with oil seal)0.77 (0.86 with oil seal)1.18 (1.24 with oil seal)1.18 (1.24 with oil seal) Detent Current (A)0.690.691.11.1 Max Instantaneous Current (A)2.502.503.923.92 Torque Constant0.2325 N·m/A / 2.372 kcf·cm/Asame0.2885 N·m/A / 2.944 kcf·cm/Asame Back EMF Constant24.37×10⁻³ V/r/minsame30.23×10⁻³ V/r/minsame Resistance (Ohm)60.5460.5431.7131.71 Inductance (mH)53.3853.3837.137.1 Mechanical Time Constant (ms)2.963.171.852.11 Electrical Time Constant (ms)0.8820.8821.171.17 Rotor Inertia (gf·cm·s²)0.02880.03090.0530.060 Rated Torque to Inertia Ratio9.128.5119.8817.46 Outline Drawing: Encoder: 17-bit or 23-bit absolute value photoelectric encoderRated speed: up to 3000 rpmMaximum speed: up to 6000 rpmOverload resistance: up to 3 times rated torqueDynamic response: tens of millisecondsReduced heat and noise
