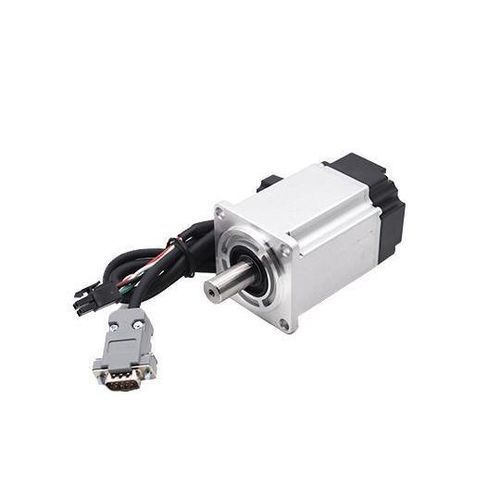

Servomotor CA 60B series

220 Vcom encoderem aço inoxidável

Features:17-bit/23-bit absolute value photoelectric encoder, with high quality and high responsiveness;Speed: Good high-speed performance, the rated speed can generally reach 3000 rpm, and the maximum speed can reach 6000 rpm;Adaptability: Strong overload resistance, can withstand a load three times the rated torque, especially suitable for occasions with instantaneous load fluctuations and requiring quick start;Stability: Smooth operation at low speed, no step operation phenomenon similar to stepper motors will occur during low-speed operation. Suitable for occasions with high-speed response requirements;Opportunity: The dynamic response time of motor acceleration and deceleration is short, generally in tens of milliseconds;Comfort: Heat and noise are significantly reduced.Product SpecificationsModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Body Length (mm)60BST-C00630-2B12201.60.64Without Brake74.560BST-C00630-2B1-Z2201.60.64With Brake9860BST-C01330-2B12202.61.27Without Brake9360BST-C01330-2B1-Z2202.61.27With Brake116.5Motor SpecificationsMotor Model60BST-CO0630-2B160BST-CO0630-2B1-Z60BST-CO1330-2B160BST-CO1330-2B1-ZRated Voltage (V)220220220220Rated Power (W)200200400400Rated Current (A)1.61.62.62.6Rated Torque (N·m)0.640.641.271.27Rated Speed (rpm)3000±10%3000±10%3000±10%3000±10%Max Speed (rpm)3600±10%3600±10%3600±10%3600±10%Line Back EMF Constant (V/Krpm)25253131Line Resistance (Ohm)5.85.84.054.05Line Inductance (mH)9.89.86.56.5Moment of Inertia (10^-3kg·m^2)0.280.280.520.52Torque Constant (Nm/A)0.40.40.490.49Electrical Time Constant (ms)1.691.691.61.6BrakeWithout BrakeWith BrakeWithout BrakeWith BrakeBody Length (L mm)74.59893116.5Outline DrawingEncoder: 17-bit/23-bit absolute value photoelectric encoderRated speed: up to 3000 rpm, max 6000 rpmOverload resistance: up to 3x rated torqueDynamic response: tens of millisecondsLow noise and heat
