ADDI-DATA offers a large range of interference-free PC boards for the industrial measurement, control and automation:
- Digital I/O, 24 V
- Analog I/O, multifunction boards
- Counter boards: incremental counter, SSI synchronous serial
interface, counter/timer, pulse acquisition, frequency , pulse width , period duration, velocity measurement, PWM, BiSS-Master, digital inputs and outputs, ...
- Serial interfaces
- Motion control boards
Protective measures:
- Optical isolation from 500 V to 1000 V
- Separation between analog and digital signals
- Protection against short-circuits, overtemperature and overvoltage
- Input and output filters
- Industry-standard SUB-D connectors
Free drivers for standard operating systems and programming samples.
|
|
* 16 bit A/D converter board
* 8 synchronous channels with seperate A/D
* Maximum sampling rate 1 MS/s on 8 channels
* Extremely high dynamic range
* 32 Bit 66 MHz PCI interface available
* PCI Express x1 interface available
* Up to 2 GSample memory
* 8 input ranges between ±50 mV and ±10 V
* Window/pulse width/re-arm/OR/AND trigger
* Automatic offset calibration
* Synchronisation to multi-board system possible
* ABA mode available as an option
The M2i.46xx series allows recording of two, four or eight channels with sampling rates of 200 kS/s up to 3 MS/s. These cards offer outstanding A/D features both in resolution and spees for PCI/PCI-X. They are available in several versions and different speed grades making it possible for the user to find an individual solution. The installed memory of up to 2 GSample can be used for fast data recording or sustained data streaming. The enhanced FIFO engine is capable of streaming even 8 channels with 3 MS/s sustained to memory or hard disk.
|
|
|
|
|
|
* 16 bit A/D converter board
* 8 synchronous channels with seperate A/D
* Maximum sampling rate 500 kS/s on 8 channels
* Extremely high dynamic range
* 32 Bit 66 MHz PCI interface available
* PCI Express x1 interface available
* Up to 2 GSample memory
* 8 input ranges between ±50 mV and ±10 V
* Window/pulse width/re-arm/OR/AND trigger
* Automatic offset calibration
* Synchronisation to multi-board system possible
* Synchronous digital channels and ABA mode available as an option
The M2i.47xx series allows recording of one, two, four, eight or sixteen channels with sampling rates of 100 kS/s up to 500 kS/s. These cards offer outstanding A/D features both in resolution and speed for PCI/PCI-X. They are available in several versions and different speed grades making it possible for the user to find an individual solution. The installed memory of up to 2 GSample can be used for fast data recording or sustained data streaming. The enhanced FIFO engine is capable of streaming even 16 channels with 500 kS/s sustained to memory or hard disk.
|
|
|
|
|
|
* 12 bit transient recorder
* 4 synchronous channels with seperate A/D
* Maximum sampling rate 25 MS/s on 4 channels
* Simultanous sampling on all channels
* Up to 64 MSample memory
* 8 input ranges between ±50 mV and ±10 V
* FIFO mode up to 50 MS/s sum samplerate
* Input offset up to ±100%
* Automatic offset calibration
* Synchronisation to multi-board system possible
* 32 Bit PXI / CompactPCI 3U interface
* Compatible with 3,3V and 5V PCI I/O-Voltage
The MX.31xx series allows recording of two or four channels with sampling rates of 1 MS/s, 10 MS/s or 25 MS/s. Due to the proven design a wide variety of 12 bit A/D converter boards for PXI bus could be offered. These boards are available in several versions and different speed grades making it possible for the user to find an individual solution. As an option 4 digital inputs per channel could be recorded synchronously. The installed memory of up to 64 MSample will be used for fast data recording. It can completely be used by the currently active channels. If using slower sampling rates the memory is switched to a FIFO buffer and data will be transferred online to the PC memory or to hard disk.
|
|
* 16 bit A/D converter board
* 8 synchronous channels with seperate A/D
* Maximum sampling rate 3 MS/s on 8 channels
* Extremely high dynamic range
* Up to 256 MSample memory
* 8 input ranges between ±50 mV and ±10 V
* Continuous FIFO mode
* Automatic offset calibration
* Selectable single-ended or differential inputs
* Synchronisation to multi-board system possible
* 32 Bit CompactPCI 6U interface
* Compatible with 3,3V and 5V PCI I/O-Voltage
The MC.46xx series allows recording of two, four or eight channels with sampling rates of 200 kS/s up to 3 MS/s. These cards offer outstanding A/D features both in resolution and spees for CompactPCI. They are available in several versions and different speed grades making it possible for the user to find an individual solution. The installed memory of up to 256 MSample can be used for fast data recording or sustained data streaming. The enhanced FIFO engine is capable of streaming even 8 channels with 3 MS/s sustained to memory or hard disk.
|
|
|
|
|
|
* 12 bit transient recorder
* 8 synchronous channels with seperate A/D
* Maximum sampling rate 25 MS/s on 8 channels
* Simultanous sampling on all channels
* 32 Bit 66 MHz PCI interface available
* PCI Express x1 interface available
* Up to 2 GSample memory
* 8 input ranges between ±50 mV and ±10 V
* Input offset up to ±100%
* Window/pulse width/re-arm/OR/AND trigger
* Automatic offset calibration
* Synchronisation to multi-board system possible
* Synchronous digital channels and ABA mode available as an option
The M2I.31xx series allows recording of two, four or eight channels with sampling rates of 1 MS/s, 10 MS/s or 25 MS/s. Due to the proven design a wide variety of 12 bit A/D converter boards for PCI bus could be offered. These boards are available in several versions and different speed grades making it possible for the user to find an individual solution.
As an option 4 digital inputs per channel could be recorded synchronously. The installed memory of up to 2 GSample will be used for fast data recording. It can completely be used by the currently active channels. If using slower sampling rates the memory is switched to a FIFO buffer and data will be transferred on-line to the PC memory or to hard disk.
|
|
|
The P635 is a single-width, 3U, PXI bus module with eight frequency measurement channels. This counter module can be used to monitor a variety of pulse sources. Moreover, its unique circuitry allows the monitoring of a wide range of frequencies without changing any module settings. TTL inputs are provided as well as differential input circuits, with filtering and hysteresis to provide high noise immunity. The switching threshold is programmable. The input voltage should be at least twice the threshold voltage for noise immunity. AC or DC coupling of the differential inputs is programmable on a per-channel basis.
|
|
|
|
|
|
The V200 is a single-width, C-size, register-based, VXIbus module that provides 16 or 32-channels of 16-bit resolution analog-to-digital conversion at sample rates up to 200 ksamples/s per channel. The sigma-delta architecture provides inherent filtering and synchronous sampling without the need for sample/hold amplifiers or sophisticated analog filters. A simple, 3-pole pre-filter assures no frequency aliasing. The module is divided into two channel groups, allowing one half of the channels to be operated at one clock rate, while the other half are operated at another clock rate. The groups can also be combined, operating the entire module at one clock rate.
Each channel has independently programmable input spans from +/-10 mV to +/-10 V provided by an Instrumentation amplifier front end. AC/DC coupling can also be programmed on a channel-by-channel basis. Channel calibration and self-test are performed automatically on command by the embedded DSPs. These DSPs also allow programmable level and slope limit checking.
|
|

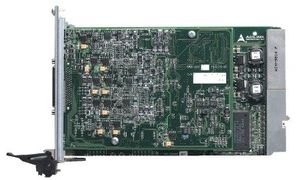

The P210 can simultaneously sample 4 analog input channels with differential input configurations to achieve maximum noise immunity. It also provides 2-CH 12-bit analog outputs with waveform generation capabilities, which can be performed together with analog input functions. If more analog input or output channels are required, multiple modules can be synchronized through the PXI trigger bus.
The P210 card also features analog and digital triggering, 24-CH programmable digital I/O lines, and 2-CH 16-bit general-purpose timer/counters. The auto-calibration feature adjusts the gain and offset to a specified accuracy, eliminating the need to calibrate the modules by adjusting trimpots.
|
|
CAMAC, an acronym for Computer Automated Measurement And Control, is an IEEE-standard (583), modular, high-performance, real-time data acquisition and control system concept. Born in 1969, CAMAC now appears in many thousands of scientific, industrial, aerospace, and defense test systems in more than 40 countries.
CAMAC is a non-proprietary, open-architecture concept providing:
* high-speed data throughput
* a wide variety of I/O interface modules
* distributed intelligence
* computer independence (see our most recent innovation: The Grand Interconnect System
* large I/O point capacity
The modular concept permits computer interaction with virtually any type of sensor, transducer, or final control element. Also available is a standardized Serial Highway that operates at transmission rates to 50 Mbit/sover distances to 3 kilometers between remote locations.
|
|
DT300 Series boards deliver high-quality, low-cost PCI data acquisition with the flexibility of six different versions to match your needs. Each board contains 16SE/8DI analog inputs, 23 digital I/O lines, and four counter/timers. Options include 12- and 16-bit analog inputs and analog outputs.
Key Features:
* High-speed dynamic digital inputs can time stamp your digital input in relation to A/D
* Flexible triggering and clocking capabilities
* 1024-location channel-gain list allows flexible channel selection in any sequence desired
|
|
Accurate conversion of physical parameters, such as temperature, pressure, and strain, into digital data is a challenging task.
VXI Technology combines superior accuracy, high-density, and modularity specifically targeting these applications.
Essential features such as integrated signal conditioning, internal self-calibration, open signal path detection, and flexible open standard programming interfaces are standard.
|
|
PC/104 8-Ch. A/D, 4-Ch. D/A, 12-Bit Multifunction Board
Eight differential or single-ended A/D inputs
12-Bit resolution
100K samples per second
Four analog outputs
And more...
|
|
|
PXI is the open, PC-based platform for test, measurement, and control. PXI provides the industry's highest bandwidth and lowest latency with modular I/O for high-resolution DC to 6 GHz RF. With more than 1,200 products from more than 70 vendors, PXI is the platform of choice for thousands of companies worldwide.
|
|
PCI/ISA/PCMCIA Accessories
- Channel Expansion
Model EXP-16 16-Ch Mux and Signal Conditioning Board (for Models DAS-8/16/800/1200/1400/1600)
Model S1600 Shielded Cable w/ 37-Pin Connectors, 0.5m (1.5ft) (for Models DAS-16, DAS-1600/1400/1200, EXP-16, EXP-16/A, EXP-GP)
- DIN Rail Mounting
Model STP-50/C Screw Terminal Panel w/ 50-Pin Male Header and Case (for Models DAS-20/1700/1800/HRES, KPCI-PIO96, PIO-96J, PIO-SSR)
- ISA Bus Expansion Chassis
- MB-Series Signal Conditioning
- Plug-In Board Cables
- Screw Terminal Boards
|
|
|
|
|
|
With the PCI board APCI-3701 from Addi-Data the user can acquire up to 16 inductive displacement transducers of the type LVDT or Half-Bridge directly with a precision of
0.1 µm according to the transducer type. Now the board is also available as 1-channel version, and is delivered with the calibration and update tool SET3701. The new unique calibration tool SET3701 is divided in two parts: In the first one, the administration area, boards and transducers are selected and in the second one, the calibration part, the transducers have micro-calibration. In the administration part the installed boards of the type APCI-3701 are recognised automatically. In the board firmware 14 common transducers with all parameters are already available. The user also can select pre-calibrated transducers or just add customer-specific transducers. The assistant, with integrated help-file, supports the user step by step. After the calibration a board test is possible: For each channel a window with a graphic opens, which reflects all acquired data. The standard delivery also includes programming samples for LabView, Delphi, C, VB, etc.
|
|
| ... products without technical information |
| |
|
|
|
|
The WCA mini AD3661 - It goes where you go- Portable 4-channel Noise & Vibration Analysis System
- USB bus power unit
- 24 bit, 4-channel measurements
- A channel exclusively for tacho pulse measurements
- WCAPRO (multi analysis software)
- FFT analysis and real-time octave analysis
- Tracking analysis and throughput recording/playback
- Equipped with WCA Lite (easy-to-use analysis software)
* Configuration
Standard configuration
- AD3661 Hardware (size: 30(H) x 139 (W) x 138(D) mm, weight: 330g,
including UBS cable and power adaptor)
- WCA Pro software and license for basic FFT analysis
* Options for WCA Pro software
2D tracking license
3D tracking license
Real-time Octave analysis license
Time-series filtering license
[Features]
A portable and lightweight, USB bus powered unit
The WCA mini is small and light enough to fit into your travel case. Its actual size is Height 30mm (height) x Width 139mm x Depth138 mm (width), and weights is only 330g. Power can be supplied from athe USB bus, allowing you to perform noise and vibration analyses anywhere.
User-friendly GUI and WCA Lite with improved ease of operation
With enhanced operability, the WCA mini has adopted the same design concept employed in the highly reputed WCA. WCA Lite will enable simple operation of FFT and tracking analyses.
Complete compatibility with the CompactWCA/WCAonPC
A compatible user interface eliminates the need for additional training of existing users.
WCAPRO, multi-analysis software
WCAPRO provides real-time FFT analysis for noise & vibration testing.
Please see the AD-3661 catalog for further details.
|
|
|
|
|
|
