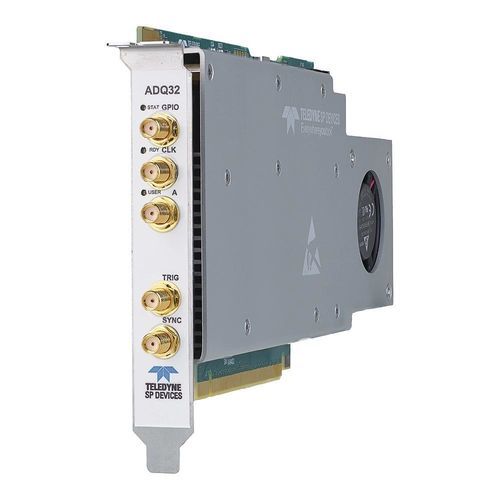

PCIe acquisition card ADQ32-PDRX

real-time

Product Overview
ADQ32-PDRX acquires the input signal via a single connector and uses an onboard splitter to separate the signal into two paths with different gain settings. The high gain path is used to accurately capture low-amplitude portions of the input signal whereas the low gain path ensures the acquisition of high-amplitude peaks without causing saturation. The two signal paths are then combined in real-time inside the onboard field-programmable gate array (FPGA) to create a digitized output with improved performance.

PDRX increases the dynamic range by 3 bits and is fully integrated into the digitizer for fast and easy system-level integration. ADQ32-PDRX is therefore comparable with a 16-bit digitizer in terms of dynamic range, but with the benefit of offering a higher sampling rate.

The increased dynamic range introduces new challenges as previously undetected signals are uncovered. Examples of such challenges include reflections caused by impedance mismatch as well as temperature-dependent baseline drift. Such artifacts can severely limit performance, distort signal characteristics, and/or give rise to false readings.

The ADQ32-PDRX, therefore, incorporates digital filters in the onboard FPGA that autonomously correct for baseline drift as well as signal reflections in both the digitizer and the detector.

The ADQ32-PDRX includes all features of ADQ32 including high-speed data streaming, open FPGA, extensive software suite, advanced triggering and clocking, general-purpose input/output (GPIO), and more.

Main Features

• 12 bits vertical resolution
• 3 bits dynamic range extension through built-in dual-gain channel combination
• 2.5 GSPS sampling rate
• 760 MHz input bandwidth
• DC-coupled with up to 760 MHz input bandwidth (1 Vpp input range)
• Programmable DC-offset for optimized detection of positive or negative pulses
• 8 Gbyte onboard memory
• Open FPGA for custom real-time signal processing (requires DEVDAQ development kit)
• Application-specific firmware options
• Peer-to-peer streaming to GPU at 7 Gbyte/s
• Hardware triggers and GPIO
• PCIe, USB 3.2 form factor

Applications

• Time-of-Flight Mass Spectrometry
• LIDAR
• Pulse data systems

Options and Accessories
Options | Comment
Hardware Options |
PCIe, USB 3.2 | Host PC interface
Firmware options |
FWDAQ | Always included. Default data acquisition firmware.
FWATD | Optional waveform averaging firmware.
FWPD | Optional pulse detection firmware.
DEVDAQ | Optional FPGA development kit based on FWDAQ.
Additional accessories |
W5Y | Optional 2-year warranty extension (and 5 years in total).
Software |
Digitizer Studio | Always included. Software for control and configuration.

OEM Solutions

• Software application development
• FPGA firmware development
• Modification of existing digitizer platforms
• Full-custom development of test & measurement equipment

Characteristics / Technical Specifications

• Model: ADQ32-PDRX
• Vertical resolution: 12 bits
• Dynamic range extension: +3 bits (dual-gain channel combination)
• Sampling rate: 2.5 GSPS
• Input bandwidth: 760 MHz
• Input coupling: DC
• Input range: 1 Vpp
• Onboard memory: 8 Gbyte
• FPGA: Open for custom real-time signal processing
• Peer-to-peer streaming: 7 Gbyte/s to GPU
• Form factor: PCIe, USB 3.2
• Hardware triggers and GPIO
• Software: Digitizer Studio included
