Up to 5 GS/s digitizer ADQ32

1-channel2-channel12-bit

Product Description

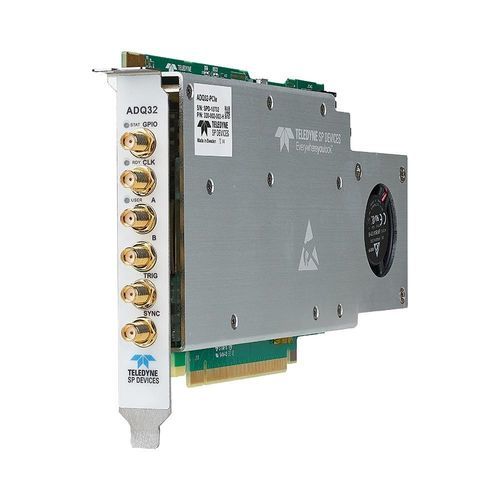

ADQ32 is a fourth-generation 12-bit digitizer with an open field-programmable gate array (FPGA). It is optimized for OEM integration in the most computationally demanding applications and provides built-in peer-to-peer streaming to graphics processing units (GPU) at 7 Gbyte/s.

Main Features

• 12 bits vertical resolution
• 2 channels at 2.5 GSPS or 1 channel at 5 GSPS (software-selectable) with option S2G5
• 2 channels at 2 GSPS or 1 channel at 4 GSPS (software-selectable) with option S2G0
• DC-coupled with up to 2.5 GHz input bandwidth (0.5 Vpp input range)
• Programmable DC-offset
• 8 Gbyte onboard memory
• Open FPGA for custom real-time signal processing (requires DEVDAQ)
• Application-specific firmware options
• Peer-to-peer streaming to GPU at 7 Gbyte/s
• Hardware triggers and GPIO
• PCIe, USB 3.2 form factor

Applications

• Swept-Source Optical Coherence Tomography (SS-OCT)
• Time-of-Flight Mass Spectrometry
• Distributed Fiber Optical Sensing
• LiDAR
• Scientific instruments
• Scanning acoustic microscopy

Options and Specifications
Options | S2G0 | S2G5 | Comment
Hardware options
BW1G0 | ✓ | ✓ | Default analog input bandwidth, 1 GHz.
BW2G5 | | ✓ | Optional bandwidth extension, 2.5 GHz.
PCIe, USB 3.2 | ✓ | ✓ | Default form factor (interface).
Firmware options
FWDAQ | ✓ | ✓ | Always included. Default data acquisition firmware.
FWATD | ✓ | ✓ | Optional waveform averaging firmware.
FWPD | ✓ | ✓ | Optional pulse detection firmware.
LICPDRX | ✓ | ✓ | Optional license for dual-gain (PDRX) channel combination.
DEVDAQ | ✓ | ✓ | Optional FPGA development kit based on FWDAQ.
Additional accessories
W5Y | ✓ | ✓ | Optional 2-year warranty extension (and 5 years in total).
Software
Digitizer Studio | ✓ | ✓ | Always included. Software for control and configuration.

Characteristics / Technical Specifications

• 12-bit vertical resolution
• Up to 5 GSPS sampling rate (software-selectable)
• Up to 2.5 GHz input bandwidth
• 8 Gbyte onboard memory
• Open FPGA for custom real-time signal processing
• Peer-to-peer streaming to GPU at 7 Gbyte/s
• PCIe and USB 3.2 form factors
• Programmable DC-offset
• Hardware triggers and GPIO
