Up to 5 GS/s digitizer ADQ7DC

up to 10 GS/s10-channel2-channel

Product Overview

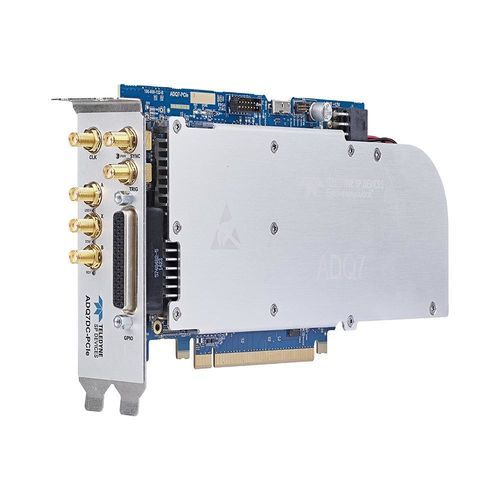

With 14 bits and 10 GSPS, ADQ7DC improves the resolution in high-sampling rate applications beyond what was previously possible. This performance-boost has effectively helped customers overcome performance trade-offs and has led to significant advances in many applications. ADQ7DC can be operated in either single- or dual-channel mode with 10 or 5 GSPS sampling rate respectively.
The DC-coupled front-end supports variable DC-offset and contains a user-programmable digital noise-reduction filter. It also offers 3 GHz analog input bandwidth and therefore supports a wide range of sensors and applications.
Stand-alone firmware packages simplify operation and offer time-savings by providing a rich set of real-time application-specific functions without any need for FPGA firmware development.

Main Features

• 14 bits vertical resolution
• 2 channels at 5 GSPS or 1 channel at 10 GSPS (software-selectable)
• DC-coupled with up to 3 GHz input bandwidth (1 Vpp input range)
• Programmable DC-offset
• 4 Gbyte onboard memory
• Open FPGA for custom real-time signal processing (requires DEVDAQ)
• Application-specific firmware options
• Peer-to-peer streaming to GPU at 7 Gbyte/s
• Hardware triggers and GPIO
• PCIe, PXIe, USB3.0, MTCA.4, 10 GbE form factors

Applications

• Time-of-flight Mass Spectrometry
• Imaging flow cytometry
• LiDAR
• RADAR
• Wireless Communication
• L-band direct sampling
• High-speed RF data recording
• Scientific instruments
• Particle physics
• Semiconductor test
• ATE
• Test and measurement
• Quantum technology

Options and Accessories

Options | Comment
Hardware Options |
PCIe, PXIe, USB3.0, MTCA.4, 10 GbE | Host PC interface
Firmware options |
FWDAQ | Always included. Default data acquisition firmware.
FWATD | Optional waveform averaging firmware.
FWPD | Optional pulse detection firmware.
FW2DDC | Optional digital downconversion firmware.
DEVDAQ | Optional FPGA development kit based on FWDAQ.
Additional accessories |
W5Y | Optional 2-year warranty extension (and 5 years in total).
Software |
Digitizer Studio | Always included. Software for control and configuration.
LabVIEW |

Caractéristiques / spécifications techniques

• 14-bit vertical resolution
• 10 GSPS single-channel or 2x5 GSPS dual-channel operation
• DC-coupled input, up to 3 GHz bandwidth
• Programmable DC-offset
• 4 Gbyte onboard memory
• Open FPGA for custom real-time signal processing
• Peer-to-peer streaming to GPU at 7 Gbyte/s
• Hardware triggers and GPIO
• PCIe, PXIe, USB3.0, MTCA.4, 10 GbE form factors
