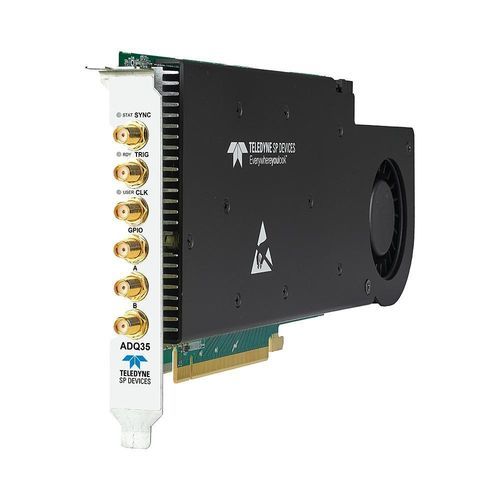

Up to 10 GS/s digitizer ADQ35

1-channel2-channel12-bit

Product Overview
ADQ35 offers a two-channel configuration with 5 GSPS sampling rate or single-channel at 10 GSPS sampling rate. The programmable DC-offset makes it ideal for sampling unipolar signals. The open onboard AMD Kintex Ultrascale KU115 FPGA offers plenty of available resources for custom real-time digital signal processing (DSP). ADQ35 supports peer-to-peer streaming of up to 14 Gbyte/s either to the host PC or to graphics processing units (GPUs).

Main Features

• 12 bits vertical resolution
• 2 channels at 5 GSPS or 1 channel at 10 GSPS
• DC-coupled with up to 2.5 GHz input bandwidth (0.5 Vpp input range)
• Programmable DC-offset
• 8 Gbyte onboard memory
• Open FPGA for custom real-time signal processing (requires DEVDAQ)
• Application-specific firmware options
• Peer-to-peer streaming to GPU at 14 Gbyte/s
• Hardware triggers and GPIO
• PCIe, USB 3.2 form factor

Applications

• Swept-Source Optical Coherence Tomography (SS-OCT)
• Time-of-Flight Mass Spectrometry
• Distributed Fiber Optical Sensing
• LiDAR
• Scientific instruments
• Scanning acoustic microscopy
• ATE

Options and Accessories
Options | Comment
Hardware Options |
PCIe, USB 3.2 | Host PC interface
Firmware options |
FWDAQ | Always included. Default data acquisition firmware.
FWATD | Optional waveform averaging firmware.
FWPD | Optional pulse detection firmware.
DEVDAQ | Optional FPGA development kit based on FWDAQ.
Additional accessories |
W5Y | Optional 2-year warranty extension (and 5 years in total).
Software |
Digitizer Studio | Always included. Software for control and configuration.

Caractéristiques / spécifications techniques

• Model: ADQ35
• Vertical resolution: 12 bits
• Channels: 2 at 5 GSPS or 1 at 10 GSPS
• Input bandwidth: up to 2.5 GHz (DC-coupled, 0.5 Vpp input range)
• Onboard memory: 8 Gbyte
• FPGA: AMD Kintex Ultrascale KU115
• Peer-to-peer streaming: up to 14 Gbyte/s
• Form factor: PCIe, USB 3.2
• Programmable DC-offset
• Hardware triggers and GPIO
• Application-specific firmware options
• Software: Digitizer Studio (included)
