RAD-CON Inc. specializes in bell-type batch annealing furnaces for the ferrous and non-ferrous, wire and strip industries. RAD-CON is a global leader in bell-type batch annealing technology, with installations worldwide.
RAD-CON has many years experience installing 100% Hydrogen Annealing systems. The RAD-CON design takes full advantage of the benefits of hydrogen, including cleaner product, shorter cycle times, lower utility costs, and greater production per base. RAD-CON is proud of its perfect safety record for hydrogen installations, and credits its redundant safety elements on the equipment and controls.
|
|
RAD-CON Inc. specializes in bell-type batch annealing furnaces for the ferrous and non-ferrous, wire and strip industries. RAD-CON is a global leader in bell-type batch annealing technology, with installations worldwide.
RAD-CON is the premier choice for Cold-Heading Quality wire producers. The 100% Hydrogen Super-High Convection™ system along with the AC/APEx™ atmosphere control system increase productivity while lowering operating costs. These innovative and proven technologies coupled with economical solutions to customers’ applications make RAD-CON the preferred brand for CHQ.
RAD-CON also services other steel wire processors. RAD-CON designs the best possible solution for specific annealing requirements based upon the customers’ needs. Providing 100% hydrogen systems, nitrogen systems, direct-fired furnaces or radiant-tubes, RAD-CON has a design for any situation.
|
|
Atmosphere controlled bell furnace
Designed for aluminising and coating of steel alloy components
Complies with international aerospace standards
Operating temperature : 1200°C
Maximum process temperature 1150°C
Uniform operating zone within the retort : 1500mm (diameter) x 1150mm (high)
Maximum charge weight : 2500kg
Power rating : 250kW
Supplied with 2 walking hearths and an overhead furnace transfer system
Fully programmable gas system with vacuum purge facilities
|
|
|
RAD-CON Inc. specializes in bell-type batch annealing furnaces for the ferrous and non-ferrous, wire and strip industries. RAD-CON is a global leader in bell-type batch annealing technology, with installations worldwide.
|
|
RAD-CON Inc. specializes in bell-type batch annealing furnaces for the ferrous and non-ferrous, wire and strip industries. RAD-CON is a global leader in bell-type batch annealing technology, with installations worldwide.
In many applications the requirements for sintering can be performed more economically with a bell-type batch annealing furnace. Please contact RAD-CON with specific project requirements
|
|
RAD-CON Inc. specializes in bell-type batch annealing furnaces for the ferrous and non-ferrous, wire and strip industries. RAD-CON is a global leader in bell-type batch annealing technology, with installations worldwide.
Our vacuum purge system rapidly reduces the contaminant levels to facilitate the brightest finish possible. Systems can operate using 100% hydrogen or a mixture of hydrogen and nitrogen to accommodate a variety of alloys. RAD-CON’s team of engineers, metallurgists, and technicians work closely with non-ferrous customers to support and optimize their cycles based on the needs of copper and brass annealing.
|
|
· Definition : electric furnace for glass work.
· Construction : robust constructed in bent plate. Hydraulic cylinders provide assisted opening. Interior surface treated to prevent deterioration.
· Aeration : upper vent with plug.
· Insulation : multilayer insulation with body ventilation.
· Heating : electrical coil resistors on furnace ceiling with quartz tube protection.
· Electricity : 3 x 400V, 50Hz.
· Regulation : 1 thermocouple with Axron PID temperature controller.
· Documentation : certification CE and operating instructions in English.
· Delivered with : vent plug.
|
|
Aluminium treatment furnaces
1. Bell furnace for aluminium ageing
2. Bell furnace for pre-heating aluminium
3. Solution heat-tratment furnace
4. Chamber furnace for aluminium ageing
|
|
REMIX S.A. offers furnaces for heat treatment of casting made of aluminium alloys for casting industry. According to the customer needs, for heat treatment of castings can be applied:
* chamber furnaces
* continuous furnaces
* process lines for continuous work
|
|
Bell furnace for heat treatments:
normalizing
annealing
tempering
Plant design according to Customer requierments by team of qualified engineers
- Construction and assembly undertaken by specialised personnel
- Plant commissioning and production assistance on a "Turnkey" basis
- After-Sales Service
- Repair and maintenance intervention on site
- Supply of spare parts
- Technical consultancy services, including operating improvment and calibration
|
|
Tmax: 1600 °C Useful volume: 1,2 x 1,2 x 1,3 m
Power: 2 x 90 kW
High temperature bell type furnace
For heat treatment applications up to 1600 °C, with short heating and cooling cycles. Insulation of ceramic fibre. Heating by Kanthal-Super heating elements in two heating zones, arranged one above the other. The furnace can be designed according to customers requirements.
Product-ID: 15
|
|
- Plant design according to Customer requierments by team of qualified engineers
- Construction and assembly undertaken by specialised personnel
- Plant commissioning and production assistance on a "Turnkey" basis
- After-Sales Service
- Repair and maintenance intervention on site
- Supply of spare parts
- Technical consultancy services, including operating improvment and calibration
|
|
LOI Italimpianti offers a broad range of annealing and galvanizing furnaces for steel strip based on in-house know-how and backed up by an extensive portfolio of reference plants.
Whether customers need bell-type furnaces for Hydrogen Batch Annealing (HPH), horizontal continuous galvanizing lines or solutions in special applications as annealing of grain oriented Si-Steel sheet, LOI Italimpianti is a reliable partner with comprehensive expertise in all aspects of steel strip annealing and galvanizing.
|
|
|
|
|
|
The key features of our Billet Homogenising are:
We can use multi-zone control for temperature, pressure and air circulation.
Multi fuel capability (gas or oil).
Use of self-recuperative gas burners with simple firing controls resulting in compact furnace mounted piping/ducting system.
Direct coupled, self cooling – recirculation fans for compact roof arrangements, invertor controlled for optimised speed control.
Double heat seal door reduce furnace heat losses
Gas tight explosion relief panels
Complete billet handling equipment, stacking equipment and charge/discharge car sub-supply and control integration.
Process control systems provided in PC/PLC based systems designed by our “in house” systems team, with continued development of the Solios Thermal predictive temperature model software reducing the requirement for load thermocouples.
Complete integrated exhaust systems including zone pressure control dampers.
Recipe based control systems allow various heating cycles to be chosen.
Forced air cooling chambers for rapid billet cooling.
Typical performance characteristics:
Reference Billet load – 150 mm diamater x 8 000 mm (10 billets high x 13 billets wide).
Heat to 590 Deg. C+/- 10 in 4.0 hours
Heat Head 620 Deg. C
Fuel usage (with gas heating) during homogenising 190 kWh/t and 12 kWh/t (Electrical for motors, instrumentation, etc..)
Homogenising - achievable Billet temperature uniformity +/- 3 Deg C.
|
|
Thermic Service is the european leader for services in heat treatment furnaces.
Our expertise :
Design & manufacturing of industrial furnaces & heat treatment equipment
Maintenance & repair
Spare parts
Regulation & supervision
Modernisation & upgrade
Norms & security
Calibration & measurements
|
|
|
This Wellman Furnace is used for annealing, brazing, stress relieving, oxide reduction and sintering. Vacuum or controlled atmospheres are available.
|
|
Design & manufacturing of furnaces & heat treatment equipment
Bell furnaces
Treatments:
- Carburising - Water quenching, polymer,
- Austenitisation oil and/or salt
- Carbonitriding - Tempering under N2 or air
- Nitriding - Annealing
- Nitrocarburising - Washing
|
|
Design & manufacturing of furnaces & heat treatment equipment
Bell furnaces
Treatments:
- Carburising - Water quenching, polymer,
- Austenitisation oil and/or salt
- Carbonitriding - Tempering under N2 or air
- Nitriding - Annealing
- Nitrocarburising - Washing
|
|
Tempering and annealing bell furnace
Technical data:
Weight of the load : from 50 to more than 1000 kg.
Height : from 300 to 1100 mm.
Useful diameter : from 400 to 1100 mm.
Treatment : annealing, tempering, nitriding, nitrocarburizing
Temperature upto 650°C
Manipulator : manual, semi or full automatic
|
|
|

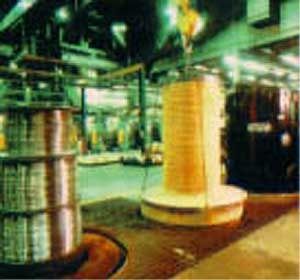

This type of furnace is widely used for the annealing of wires and aircraft parts. The weight of the heating cover has been reduced, and working efficiency and safety have been remarkably improved by the use of Moldatherm.
|
|
|
RAD-CON Inc. specializes in bell-type batch annealing furnaces for the ferrous and non-ferrous, wire and strip industries. RAD-CON is a global leader in bell-type batch annealing technology, with installations worldwide.
|
|
|

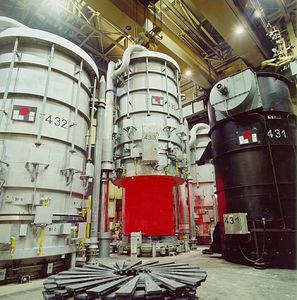

LOI is the world leader in HPH (High Performance Hydrogen) bell-type annealing plants. More than 2,000 HPH annealing basis have now been installed throughout the world
|
|
