Cable/hose sleeves are a simple, reliable and cost-effective method for protecting dynamic cables and hoses, either in a carrier or by themselves. Sleeves are available with zippers or hook and loop fasteners for accessibility, in a wide variety of materials for diverse application requirements. Gortrac cable/hose sleeves offer:
|
|
These divisible connectors are suitable for repairs or where cable protection systems have to be installed after wiring.
The divisible connectors in connection with the divisible conduits and divisible lock nuts are responsible for the highest possible mounting flexibility.
|
|
|
|
|
|
Copper braiding on tube former
Material: Tinned copper round braiding on PVC tube former
Properties: Highly flexible hollow wire braiding conduit, easy pulling in of cables due to the tube former
Application: CEM-screening an shielding braiding
Temperature range: -75°C / +150°C
Braided cable sleeving polyamide
Material: Polyamide PA 6.6, strand 0,25mm
Properties: Highly flexible, self-adapting, resistant to abrasion, free of cadmium, formaldehyde, halogen and graphite, self-extinguishing acc. to DIN 75200 (FMVSS 302), good resistance to fuel, mineral oil and many other chemicals
Approved: Smoke and toxic test acc. to NF F16-101 classing F2, behaviour in fire acc. to UNIFER E10.02.977 30 sec. flame impingement
Temperature range: -55°C / +125°C
Colour: Black
Braided cable sleeving polyester
Material: Polyester PET
Fire classification: V0 acc. to UL 94
Properties: Highly flexible, self-adapting, resistant to abrasion, free of cadmium, formaldehyde, chrome 6, nickel, lead, PVC, halogen and graphite, self-extinguishing acc. to DIN 75200 (FMVSS 302), good resistance to fuel, mineral oil and fatty matters
Approved: Smoke and toxic test acc. to NF F16-101 classing F1, behaviour in fire acc. to UNIFER E10.02.977 30 sec. flame impingement
Temperature range: -50°C / +150°C
Colour: Black matt
|
|
|

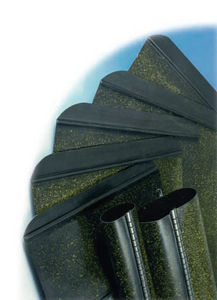

Tubing protection with closing system for mecanical, EMI/RFi or thermal protection Diameter between 9 and 100 mm
|
|
Optical Fiber Flexible Guide System
Features
●Fully modular system giving complete fiber
management and protection at PCB level applications
●For use with 250 and 900 micron fiber
●Fibercan enter and exit at any point, without risk of fibersnagging or kinking
●Angled and straight lugs located along the top of the guide preventing fiberfrom springing out
●‘Snake’the guide through and over components, where space is limited
●Flat and raised supports available, other support post heights and panel thicknesses available by special order
|
|
Richco's Slit Harness Wrap (SHR) is the answer to cable management problems in industrial applications, where the jumble of cables can be unsightly and dangerous.
The SHR is a revolutionary system that enables cabling to be tidied and managed in seconds via the use of a special applicator tool. The SHR can be removed at any time and is totally reusable.
|
|
|
ZIPPER TECHNIK : a full range of tubing protection to resist at abrasion, EMI perturbation or thermal ambiance. ZIPPER product are made with a track system...
|
|
RPS markers are heat shrinkable marking sleeves for wire and
cable identification. When RPS is printed with Tyco Electronics
recommended printers and ink ribbons, the marks remain legible,
without any post printing process, even when exposed to
abrasion, aggressive cleaning solvents, and industrial fluids.
RPS markers are designed to meet the wire identification needs of
commercial and industrial customers.
Features and benefits
Permanent identification sleeves
Computer printable
Excellent print performance
Configured for ease of kitting
Good chemical and solvent resistance
3:1 shrink ratio
CSA Certified, UL Recognized
|
|
TMS-SCE marker sleeves are designed to meet the wire and cable marking needs of manufacturers with high performance requirements.
Made from durable, flame retardant, radiation crosslinked heat-shrinkable polyolefin, TMS-SCE marker sleeves can be used in a wide variety of applications.
All TMS-SCE meet the performance requirements of SAE-ASM-DTL-23053/5 class 1.TMS-SCE-2X meets all of the requirements of SAE-AMS-DTL-23053/5 classes 1 and 3. The marks are permanent immediately after printing and remain legible even when exposed to abrasion, aggressive cleaning solvents, and military fuels and oils. The sleeves meet the mark permanence requirements of SAEAS81531 4.6.2 and MIL-STD-202 both before and after shrinking.
|
|

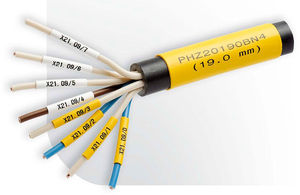

PHZ
- Flexible zero halogen thin wall polyolefin heat shrink tubing for marking on site.
- Excellent properties of fire safety characteristics.
- Low smoke generation and evolution of acid gases.
- Flexible and easy mounted on cables and wires.
- 2:1 shrink ratio.
- Reduced overall assembly and marking costs on site when using Partex marking machines and software.
|
|
