Calibration Hand Pumps (Pressure & Vacuum)
Types 2911, 2941, LPP 30, LPP 700 and LPP 1000

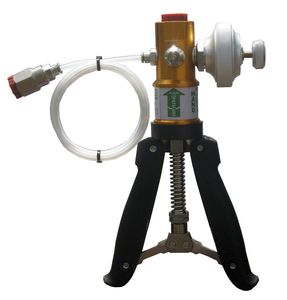

LPP 30:
Pneumatic up to 35 bar, switcheable to vacuum -0.95 bar
LPP 700 and LPP 1000:
Hydraulic up to 700 resp. 1000 bar
Together with our electronic pressure calibrators you get a "calibration laboratory" in a case.
All Calibration Handpumps supplied with test tube.
|
|
|
From small pneumatic 'bicycle' type pumps to a hydraulic pump that generates up to 15,000 psi (1,000 bar). These are durable pumps with features such as vernier valves, vent valves, manifold connections and swivel fittings, making the pumps ready for your calibration applications.
|
|
Beamex's calibration accessories complete your investment into calibration equipment. Utilizing calibration accessories means an ability to extend configuration possibilities. For instance, by using the external pressure modules you are able to calibrate a wide pressure range with one calibrator.
|
|
Scandura has a complete line of pressure/vacuum generators
PNEUMATIC LINE:
- series BA, vacuum up to 7 bar
- series GPP, vacuum up to 40 bar
HYDRAULIC LINE :
- field use: GHM series, ranges up to 300, 400 e 700 bar
- lab use: GHH, series, ranges up to 700 bar
Scandura’s BA series Pressure Generators play their role at the optimum level.
Its high performances are associated with an excellent price to performance ratio, including long terms performance stability and operating reliability as the market leaders only can ensure.
For large quantity supplies Original Equipment Manufacture (OEM) Agreements are possible with any Distributor/Provider of and Maintenance Process Control Equipment
What are you waiting for, surf in our web-site, visiting the incredible Scandura world!
|
|
|
|
|
|

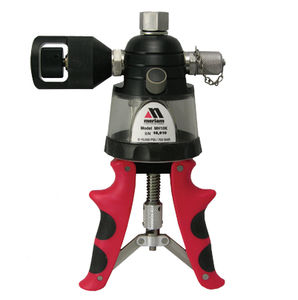

HTP1 Pressure Test System
1000 bar, 15 000 psi Hydraulic Pressure (compatible with most fluid media) HTP1-700 and HTP1-1000 are lightweight, easy to use and can generate pressures up to 700 bar / 1000 bar, 10 000 psi / 15 000 psi. HTP1 is well suited for calibrating pressure transmitters, pressure transducers, pressure switches and pressure gauges.
Features & Benefits:
Hydraulic Pressure up to 700 bar / 1000 bar, 10 000 psi / 15 000 psi!
Sealed Construction - NO LEAKS ! NO RUST !
Lightweight, hand held and easy to use.
Optional over pressure protection system (via adjustable relief valve)
Quick priming and pressure generation using scissor action pump.
High pressure / priming selector.
Fine adjustment control.
Pressure release valve.
Large see-through reservoir with a capacity of over 100cc.
Compatible with many different liquids. e.g. mineral oil, distilled water. ('Skydrol' / Brake fluid option also available).
Optional accessories include a carrying case, a set of adaptors and a flexible hose with quick fit connectors suitable for many applications.
|
|
|
|
|
|

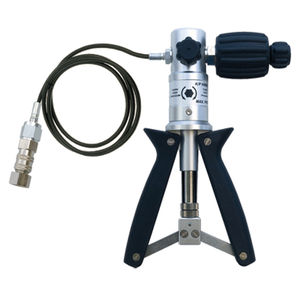

The hand pump with fine adjustment is a pneumatic compression device for a pressure output from 0 to 16 bar and is operable by hand.
The hand pump is especially suitable to check or to calibrate pressure measuring instruments, as for example load cells, pressure sensors and gauges. The pump is portable because of its compact construction and is to serve handily and easily. A fine automatic controller at the pump enables a fine regulation of the pressure output. The pressure pump was developed for a fast and simple pressure calibration.
The hand pump consists of a cylinder, a piston, a pressure release valve, a fine adjustment and the handles. Over the two available internal threads the pump can be attached to the test normal and the test sample, in order to check or calibrate. The handles have to be pressed and released by hand a few times. As result an initial pressure within an area from 0 to 16 bar or -780 to 0 mbar is produced.
Connect test normal and the instrument which is supposed to be calibrated with the pump by using the flexible hose and the supplied connections. During inflating you close the opening valve in clockwise direction. For pressure relief you turn the opening valve against clockwise direction. Before the calibration of the pressure measuring device each connection should be checked for tightness. After the calibration make sure that the pressure is relieved before unscrewing the instrument (otherwise danger of injury exists).
|
|
| ... products without technical information |
| |
|
|
|
|
APPLICATIONS
Recircling plants, heating, air conditioning, heat recovery, plants of water supply procurement, pressurising units and fire-fighting systems.
CHARACTERISTICS
Hydraulics: pump body with dimension and performances according to EN 733 rules, closed impeller dynamically balanced and with balance holes for the for the balancing of the axial thrust. Shaft completely in stainless steel, greased ball bearings, flanges (UNI EN 1092-2): up to DN 150: PN16, from DN 200:PN10.
Mechanical seal; see page 152, special seals on request.
For constructive materials, please, refer to page 6.
Motor: asynchronous with 2 or 4 poles and with external ventilation.
Protection: IP55
Insulation: class F
Standard tensions: 220-240V up to 4 kW, 380-415V / 660- 720V starting from 5,5 kW.
Frequency: 50 Hz
Available in three different metallurgies: Cast iron, Stainless steel AISI 316, Bronze
SPECIFICATIONS
DN aspiration: from 50 up to 100 (150 for IR4P) –
DN delivery: from 32 up to 80 (125 for IR4P).
Qmax: 275 m3/h @ 2900 1/min • 400 m3/h @ 1450 1/min
Hmax: 100 m @ 2900 1/min • 43 m @ 1450 1/min
Temperature of the pumped liquid: from -15°C up to +120°C
Max operation pressure (see table at page 4 of the catalogue)
Max environment temperature: 40°C (for higher temperature, please, verify).
|
|
The IC ISO Chemical Process Pump Is Designed In Accordance with ISO 5199EN25199 and Dimensionally Complies with ISO 2858EN22858 and DIN 24256.
Specifications:
Capacities to 340 m3/h (1490 USgpm) at 2900 rpm & 400 m3/h (1760 USgpm) at 3500 rpm
Heads to 160 m (525 feet) at 2900 rpm & 210 m (685 feet) at 3500 rpm
Temperature Range -40° C to 180° C (-40° F to 360° F), optional as ICP up to 280°C (530°F)
Pressures to 16 Bar (235 PSIG), optionally 25 bar (360 psi); sizes 65-40-315 and 80-50-315: 25 bar (360 psi) standard
Materials - Ductile Iron, 316 Stainless Steel, Duplex SS, Alloy 20, Hastelloy, Titanium
|
|
|
|
|
|
Goulds model 3700 API 610 (OH2) (ISO 13709) centerlined mounted process pump designed for optimum reliability. The Goulds 3700 employs state-of-the-art mechanical design features for sustained reliability and performance.
Specifications:
Capacities to 6500 GPM (1475 m3/h)
Heads to 1150 feet (350 m)
Temperatures to 800° F (427° C)
Pressures from full vacuum to 870 PSIG (6 MPa)
Design Features:
API-610 - Full compliance with 10th Edition.
Tangential Discharge - Maximum hydraulic efficiency.
Finned Bearing Frame - Accommodates high temperatures without need for cooling water.
Seal Chamber - Meets dimensional requirements of API-610 and API-682.
Bearings and Seal Chamber Cooling - For extremely high temperature services.
Mechanical Design - Extra heavy shaft and bearings.
Back Pull-out Construction - Designed for one craft maintenance.
Dual Volute Casings - 3-inch discharge and larger.
Impeller - Multiple closed impellers for most casing sizes.
Centerline Support - High temperature stability.
|
|
Goulds HT 3196 is specifically designed for superior performance for high temperature applications in the chemical industry.
Specifications:
Capacities to 4500 GPM (1023 m3/hr)
Heads to 925 feet (282 m)
Temperatures to 700° F (372° C)
Pressures to 450 PSIG (3102 kPa)
|
|
The model ICM is a metallic magnetic drive chemical process pump made of stainless steel, hastelloy, ductile cast iron, and special metals. Designed for normal and demanding chemical process applications.
Specifications:
Capacities to 340 m3/h (1490 USgpm) at 2900 rpm & 400 m3/h (1760 USgpm) at 3500 rpm
Heads to 160 m (525 feet) at 2900 rpm & 210 m (685 feet) at 3500 rpm
Temperature Range -40° C to 180° C (-40° F to 360° F), optional as ICMP up to 280° C (530° F)
Pressures to 16 Bar (235 PSIG), optionally 25 bar (360 psi); sizes 65-40-315 and 80-50-315: 25 bar (360 psi) standard
Materials - Ductile Iron, 316 Stainless Steel, Duplex SS, Alloy 20, Hastelloy, Titanium
|
|
|
Tefzel Lined Magnetic Drive process Pumps available frame mounted, close coupled, in-line and self priming.
|
|
Goulds Model 3620 API 610 (BB2) between bearings radially split double suction process pumps are designed for smooth, reliable operation.
Goulds has extended the hydraulic coverage on its Model 3620 process pumps. These new hydraulics augment existing hydraulics, extending the Model 3620 hydraulic coverage. The new performance curves can be accessed through the Pump Selection System (PSS).
Specifications:
Capacities to 20,000 GPM (4540 m3/h)
Heads to 1500 feet (455m)
Temperatures to 850° F (455° C)
Pressures from full vacuum to 1000 PSIG (6895 kPa)
|
|
The model ICM is a metallic magnetic drive chemical process pump made of stainless steel, hastelloy, ductile cast iron, and special metals. Designed for normal and demanding chemical process applications.
Specifications:
Capacities to 340 m3/h (1490 USgpm) at 2900 rpm & 400 m3/h (1760 USgpm) at 3500 rpm
Heads to 160 m (525 feet) at 2900 rpm & 210 m (685 feet) at 3500 rpm
Temperature Range -40° C to 180° C (-40° F to 360° F), optional as ICMP up to 280° C (530° F)
Pressures to 16 Bar (235 PSIG), optionally 25 bar (360 psi); sizes 65-40-315 and 80-50-315: 25 bar (360 psi) standard
Materials - Ductile Iron, 316 Stainless Steel, Duplex SS, Alloy 20, Hastelloy, Titanium
|
|
|
Tefzel Lined Magnetic Drive process Pumps available frame mounted, close coupled, in-line and self priming.
|
|
Seraphin's Motor Fuel Calibration Trailers dramatically increase calibration productivity when checking gasoline and high speed diesel fuel dispensers.
The Gasoline and Diesel Calibration System or commonly known as the "Hybrid" trailer is equipped with three stainless steel 5 gallon or 20 liter bottom drain provers and a 100 gallon or 400 liter prover. Three 115 gallon holding tanks enable you to conduct 69 gasoline test runs with the 5 gallon measures or 4 diesel test runs with the 100 gallon prover prior to returning the fuel to the storage tanks. The trailer is available with optional on board pump-off system and hose reel.
Gasoline Calibration System "Box Trailer" is fully enclosed with three stainless steel 5 gallon or 20 liter bottom drain provers. Three 115 gallon holding tanks enable you to conduct 69 gasoline test runs with the 5 gallon measures. Lockable doors on either side of the unit enable access to the storage area above the tanks.
|
|
The Model 4046 primary calibrator has a range of 2.5 to 300 liters per minute (lpm). This small, portable, battery-operated unit is lightweight and easy to use. Volumetric flowrate is displayed continuously so adjustments to pump flow can be made in real-time. This primary calibrator is accurate to 2% of reading.
Features and Benefits:
- Provides continuous real-time volumetric flow rate readings, so pump adjustment and calibration is fast and easy
- Battery powered, compact and lightweight
-Field portable—use the same primary calibrator for adjustment, calibration and periodic checks
- Comes with a NIST traceable calibration certificate
- Kits come complete and are ready to use
Applications:
- Environmental sampling
- Indoor air quality
- Industrial hygiene sampling
- Epidemiology health studies
- Field services
|
|
|
|
