* Customer developments and manufacturing since 1985
* Use of state-of-the-art technologies around microprocessors, CPU, PROFESSIONAL DSP ...
* Experts in low power and extended temperature designs
* HW and SW designs, and product support
* Solutions are used in Intrinsic safe applications, medicine, transportation, defense as well as the industry and aerospace
|
|
We supply a range of interfaces that either plug into, or are linked by a cable to your system. This can be either one of our standard Application Boards, or a custom design:
- Ethernet Module
- QVGA Display Driver Module
- Memory Card Interface
- Industrial I/O on I2C
- Digital and Analogue I/O ports on I2C |
|
ETX™ Baseboard with Mini PCI slot on board and Touch monitor controller on board
Main Features
* LVDS single or dual channels connector
* VGA connector
* Mini PCI slot
* Ethernet connector type RJ-45
* 4 USB ports
* 4 Serials R232 (one of them working with CC-Talk protocol)
* Touch Controller connectors manufacturers
* HDD2.5” connector
* PS/2 Mouse and Professional keyboards connector
* 2 Speakers (R/L), MIC Input connector and Headphone
* Power connection
* Dimensions: 150x140 mm (5.9"x5.5") |
|
CIERRE produces traditional cards and SMT of Civil and Industrial type.
Assembly SMT comes executed with automatic lines with ability until 30.000 members now.
|
|
Assembly component electronic traditional
Positioning automatic rifle component SMT beginning from CHIP-0201, SOT, SOIC, QFP, PLCC, and till BGA
Brazing to Wave, or double Wave
Remelting SMT with professional furnace 8 zones and control of the thermal profile
Spot welding
Washing cards
Resinatura and sigillatura cards.
Programming component, Micro, PAL, the GAL.
Passivation and tropicalizzazione cards.
Visual tests and work them
Burnin
|
|
| ... products without technical information |
| |
The Synthepark can be interfaced with any equipment or system for broadcasting sounds and messages: many applications are possible (parkings, public buildings, tollbooths, access control manufacturer, gates…)
Key features :
•Very high voice message reproduction quality
•Number of messages : 2 in wire configuration, up to 256 in RS 232 configuration (status also available through RS 232)
•The messages are stored on a MMC card : 15 minutes of broadcasting on 32MB, 8 hours on 1 GO…
•The messages or sounds can be self-recorded and personalized
•One stereo 0 dB output for external professional amplifier connection
Technical data :
•Digital audio player Mono/stereo
•All commands and status available through RS 232 interface
•Plays 2 messages through two dedicated, multi modes optoisolated inputs
•Reads standard audio wave files (.wav)
•Messages are stored on standard MMC (multi media cards) memory
•Plays single or multiple messages (sequence file)
•One stereo 0 dB output for external amplifier connection
•One mono 8 watts : 4 ohms amplifier on board
•2 free contacts (NO-NC), 2 A, activated during playback
|
|

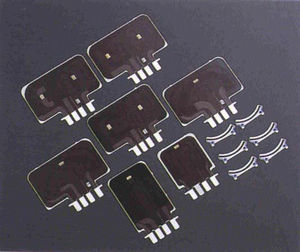

Flex circuits make electronic interconnection both simpler and more reliable. They translate the advantages of printed circuits to three dimensions, replacing conventional wiring. Minco specializes in tight tolerance, fine-line circuits for the medical and aerospace industries. From guidance systems to cardiac pacemakers, Minco flex circuits set the standard for assured quality.
Flexible and Rigid-Flex Circuits
* Fine pitch down to 0.003 inch (0.08 mm) lines & spaces
* Stiffeners or rigid zones for component mounting
* Up to 16 layers
* Impedance control with shield planes and other techniques
* Combine with surface mount technology for ultimate packaging density
* CAD/CAM interface
|
|
The Bergquist Company is the world leader in the development and manufacture of thermally conductive interface materials. Thermal Clad Insulated Metal Substrate (IMS®) was developed by Bergquist as a thermal management solution for today's higher watt-density surface mount applications where die size is reduced and heat issues are a major concern.
Thermal Clad Benefits Include:
Lower operating temperature
Reduce printed circuit board size
Increase power density
Extend the life of dies
Reduce the number of interconnects
Improve product thermal and mechanical performance
Combine power and control
Improve product durability
Enable better use of surface mount technology
Reduce heat sinks and other mounting hardware including thermal interface material
Replace fragile ceramic substrates with greater mechanical durability
|
|
YFLEXTM, developed based on Toshiba's B2itTM technology, is a build-up printed professional circuit board with conductive bumps applied between the interconnection layers.
Not requiring through-hole professional drilling or plating, YFLEXTM is an environmentally friendly product that allows users to reduce drilling debris or chemical usage. |
|
| Tech-Etch manufactures high reliability flexible printed circuits on polyimide substrates using advanced manufacturing processes. We specialize in single and double-sided circuits, as well as multi-layer and flex circuit assemblies. The flex circuits are built to the exacting specifications of our customers, meeting the most demanding of applications in the ultrasound probe, medical device, semiconductor test & manufacturing equipment, industrial machines, and aerospace markets. With all engineering, tooling, and manufacturing operations housed in our state of the art 150,000 sq. ft. facility in Plymouth, MA, Tech-Etch is the perfect choice for all of your flex circuit needs from quick turn and prototype through production volumes. |
|
| ... products without technical information |
| |
| ERNI offers the industry's widest array of cable housings, strain reliefs and guide elements. These complementary items to the DIN 41612 / IEC 60603-2 connector manufacturer family are available for all of the popular types including B, C, D, F, H, Q and R and 1/2 sizes. The cable housings offer rear and two sided exit options, with strain relief for wire, jacketed cable or flat wires. The guide elements are available with keying and screw lock features for applications including: edgecards, backplanesm front panel, rear panel and other 19" Eurocard subrack mounting applications |
|
Richco offers a range of vertical, horizontal mount and tensioning professional rack card professional guides. Vertical design keeps boards in place, yet allows easy professional slide in and slide out. Horizontal guides are available with a funnel entry for easier board insertion, while others come with tension grips, applying professional spring pressure to hold the board securely in place.
In professional chassis and rack system applications, PCB access needs to be quick, accurate, safe and easily accessible to avoid damage to the components on board, which need to be utilised without compromising on overall performance.
The wide range of Richco card guides and pullers provide a solution to PCB safety access for when routine installation, maintenance and repair needs to take place. Custom parts are available. Please contact you local Richco office to discuss your requirements.
|
|
Please use the link to check our full range of Circuit Board Hardware.
We can custom mould if you require a special size or configuration. |
|
|
|
