Horizontal Zeropoint Quickclamping professional cylinder with piston-catching
Hydraulic release
Cover and piston hardened
Repeat accuracy < 0,005 mm
Size: K20, K40
Explanation:
With our new Zeropoint Quickclamping cylinder with piston-catching, we make the palletizing asier and quicker.
• No search of drilling
• No damage of zero point drilling and nipples
• No risk of injury
Releasing and taking out of the pallet, take place still faster and simpler, because of the linking with the professional crane which is not more necessary during the release phase
Thanks to the speed of pelletizing, you reduce considerably your pelletizing period and consequently your costs.
Advantages:
• With and without blow out
• Completely in stainless steel
• Applicable in all positions without fit-up aids
• When the mechanism is out of service, the piston-catching stay out, it can be locked, thus the discs spring are not forced.
Can be integrated in:
• Clamping towers
• Clamping angles
• Automatized handling devices
• General mechanical
Note:
As standard, there is a manual or hydraulic advance motion of the piston-catching.
On request:
- Installation diagrams on request |
|
Bluid-in Zeropoint Quickclamping professional cylinder K5, round
Screw-in version
Hydraulic release (or pneumatic)
Cover and piston hardened
Repeat accuracy < 0,005 mm
Assembling diameter Ø 39 mm
Pull in force 5 kN (hydraulic)
Pull in force 1,5 kN (pneumatic)
Holding force 13 kN
Use:
With a small footprint for installation in base plates, machine tables, clamping profiles, columns and towers, swivel bridges, machine pallets and clamping pallets. Also suitable for use as „cylinder locks“ with high repeatability.
Note:
Installation Zeropoint Quickclamping cylinder with a low installation height of 19.8 mm and an installation diameter of 45 mm (M45 x 1). Hydraulic pressure is only needed for unclamping (min. 40 bar / max. 50 bar). The installation Zeropoint Quickclamping cylinder is mechanically locked in the clamped position. The advantages of this are that there are no cumbersome lines and no danger of leakage. The contact surface is the upper surface of the housing.
On request:
- Installation diagrams on request
- Automation solutions such as media ducts, sensor of locking monitoring, blowing off and isolated applications |
|
Bluid-up Zeropoint Quickclamping cylinder K5, round
Hydraulic release (or pneumatic)
Cover and piston hardened
Repeat accuracy < 0,005 mm
Global diameter Ø 62 mm
Pull in force 5 kN (hydraulic)
Pull in force 1,5 kN (pneumatic)
Holding force 13 kN
Use:
For mounting on machine tables, clamping profiles, columns and towers, industrial measuring machines, assembly stations.
Note:
Hydraulic pressure is only needed for unclamping (min. 50 bar / max. 60 bar). The Zeropoint Quickclamping cylinders are mechanically locked in the clamped position. The advantages of this are that there are no cumbersome lines and no danger of leakage. The contact surface is the upper surface of the housing.
On request:
- Individual housing can be supplied on request
- Automation solutions such as media ducts, sensor of locking monitoring, blowing off and isolated applications |
|
The media duct of Zero.Point.Systems® is with a very simple mechanism and integrable in any cylinders of Zero.Point.Systems®. The media ducts goal is to transfer any fluids (water, hydr., oil) or gases, from pallet to pallet.
The opening of the media duct is mechanically and automatically during the starting release of the cylinder and inversely during the unrelease of the cylinder, the media ducts is simultaneously closed.
Advantages and technical data:
• Leakage free
• Entirely stainless
• Easier assembling
• Standard pressure 0-500 bar
• Vacuum function
• Coupling under pressure
• Standard temperature until 160°C
• Different application domains
• Media duct couples by pull in force and the automatic movement force of Zeropoint Quickclamping cylinder
• Short coupling way (ex.: K20, nominal width 7 mm, couple way 2 mm)
• Great position tolerance (ex.: K20, nominal width 7 mm, tolerance 2 mm)
• Surface cleaning through blowing off
• High pressure cleaning through fluid and gas
• Long durability, also in case of pulsating operation
• Available for any types of Zero-Point-Systems®´ cylinders |
|

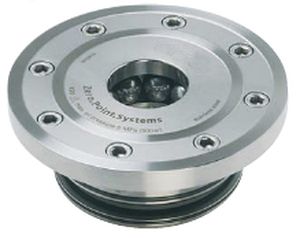

Bluid-in Zeropoint Quickclamping professional cylinder K10, K20, K40, round
Hydraulic release
Cover and piston hardened
Repeat accuracy < 0,005 mm
Assembling diameter: K10: Ø50mm, K20: Ø78mm K40: Ø102mm
Max. pull in force 40 kN (hydraulic)
Max. pull in force 30 kN (pneumatic)
Max. holding force 105 kN
Use:
With a small foot-print for installation in base plates, machine tables, clamping profiles, columns and towers, swivel bridges, machine pallets and clamping pallets.
Note:
The installation Zeropoint Quickclamping cylinders have high holding and pull-in forces with very small installation dimensions. Hydraulic pressure is only needed for unclamping (min. 50 bar / max. 60 bar). The Zeropoint Quickclamping cylinders are mechanically locked in the clamped position. The advantages of this are that there are no cumbersome lines and no danger of leakage.
On request:
- Installation diagrams on request
- Automation solutions such as media ducts, sensor of locking monitoring, blowing off and isolated applications
- Also available as an individual flange version
|
|

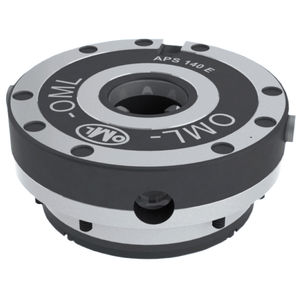

Bluid-up Zeropoint Quickclamping professional cylinder K10, K20, K40, round
Hydraulic release (or pneumatic)
Cover and piston hardened
Repeat accuracy < 0,005 mm
Global diameter: K10: Ø78mm, K20: Ø112mm K40: Ø148mm
Max. pull in force 40 kN (hydraulic)
Max. pull in force30 kN (pneumatic)
Max. holding force 105 kN
Use:
For mounting on machine tables, clamping profiles, columns and towers, industrial measuring machines, assembly stations in connection with clamping flange no. 6370ZB.
Note:
Hydraulic pressure is only needed for unclamping (min. 50 bar / max. 60 bar). The modules are mechanically locked in the clamped position. The advantages of this are that there are no cumbersome lines and no danger of leakage. The hydraulic version has 1 connection for clamping / unclamping (G1/4 or G1/8).
On request:
- Automation solutions such as media ducts, sensor of locking monitoring, blowing off and isolated applications
- Can also be supplied with centering pins for quicker and more precise installation |
|
Bluid-in Zeropoint Quickclamping professional cylinder K10, K20, K40, square
Hydraulic release
Cover and piston hardened
Repeat accuracy < 0,005 mm
Assembling diameter: K10: Ø50mm, K20: Ø78mm K40: Ø102mm
Max. pull in force 40 kN (hydraulic)
Max. pull in force 30 kN (pneumatic)
Max. holding force 105 kN
Use:
Can be used as a single clamping point or combined with round installation Zeropoint Quickclamping cylinders in base plates, machine tables, clamping professional profiles, columns and towers, swivel bridges, machine pallets and clamping pallets. A square Zeropoint Quickclamping cylinder prevents the pallet from twisting. The indexing function enables positioning every 90°. Specially suitable for use in turning.
Note:
The installation Zeropoint Quickclamping cylinders have high holding and pull-in forces with very small installation dimensions. Hydraulic pressure is only needed for unclamping (min. 50 bar / max. 60 bar). The Zeropoint Quickclamping cylinders are mechanically locked in the clamped position. The advantages of this are that there are no cumbersome lines and no danger of leakage. Square pallet for screwing onto the pallet see item no. 6370ZA.
On request:
- Installation diagrams on request
- Automation solutions such as media ducts, sensor of locking monitoring, blowing off and isolated applications |
|
Bluid-up Zeropoint Quickclamping cylinder K10, K20, K40, square
Hydraulic release (or pneumatic)
Cover and piston hardened
Repeat accuracy < 0,005 mm
Size: 85x85mm, 120x120mm, 150x150 mm
Pull in force 40 kN (hydraulic)
Pull in force 30 kN (pneumatic)
Holding force 105 kN
Use:
Can be used as a single clamping point or combined with round surface-mounted Zeropoint Quickclamping cylinders in machine tables, clamping profiles, columns and towers, industrial measuring machines, assembly stations in connection with clamping flanges no. 6370ZB). Clamping flange size 20 for K10, size 40 for K20, for K40 integrated onto the housing.
Note:
Hydraulic pressure is only needed for unclamping (min. 50 bar / max. 60 bar). The Zeropoint Quickclamping cylinders are mechanically locked in the clamped position. The ad-vantages of this are that there are no cumbersome lines and no danger of leakage. The hydraulic version has 1 connection for clamping / unclamping (G1/4 or G1/8). Square pallet for screwing onto the pallet see item no. 6370ZS.
On request:
- Automation solutions such as media ducts, sensor of locking monitoring, blowing off and isolated applications
- Can also be supplied with centering pins for quicker and more precise installation |
|
Zeropoint Quickclamping compact cylinder
Hydraulic release
Cover and piston hardened
Repeat accuracy < 0,005 mm
Size: K10, K20
Use:
For retrofitting to modular profiles, columns, tombstones and cubes. Can be used with thin wall sections..
Note:
There are 5 standard connection options. 4 connections are installed laterally on the outside surface at a 90° angle. Connection is also possible in the base of the Zeropoint Quickclamping compact cylinder.
On request:
- Installation diagrams on request
- Automation solutions such as blowing out, blowing off, isolated applications, sealing air and media ducts
- Individual solutions, such as nipple and installation compatible or installation compatible for existing systems |
|
Zeropoint Quickclamping cylinders with pusher and central locking against pollution for automatised solutions
Hydraulic release
Cover and piston hardened
Repeat accuracy < 0,005 mm
Assembling diameter Ø 78 mm
Pull in force 20 kN
Holding force 55 kN
Use:
For installation in base plates, machine tables, clamping profiles, columns and towers, machine pallets and clamping pallets.
Note:
Through the central locking the pollution particles can not go into the nipple bore. The central locking element advances with an individually defined spring force
Blowing out and sputter functions
On request:
- Installation diagrams on request
- Hydraulic move-out of central locking
|
|
Zeropoint Quickclamping professional cylinder with release and contact controls for automatised solutions
3 possibilities of monitoring:
- Pneumatic monitoring:
Function of blowing out by compressed air for the cleanliness of support surfaces. After the installation of the pallet of workpieces, it occurs in the pressure line a dynamic pressure, of which this one could be detected by the mean of a pressure sensor manufacturer.
- Electric monitoring:
Direct position monitoring of the clamping piston in the Zeropoint Quickclamping cylinder by the mean of an inductive detector. Electric signal when the Zeropoint Quickclamping cylinder is clamped. Small height necessary for the assembling like for the Zeropoint Quickclamping cylinders K5 (19,8 mm) and K40 (42 mm).
- Hydraulic monitoring:
Monitoring of the clamping piston by a hydraulic closure cock. Dynamic pressure when the Zeropoint Quickclamping cylinder is opened, which can be detected by mean of a pressure sensor. Free hydr. flow when the Zeropoint Quickclamping cylinder is closed. Despite a hydraulic sensor, only small height for assembling is necessary. |
|
Size: K20 ITH6
Zeropoint Quickclamping cylinders with turbine for automatised solutions with:
• Turbine function for complete cleaning of support surfaces without „shady side“
• Central locking against pollution particles
• Hydraulic or pneumatic locking sensors
• Control of contact by air blocked
• Hydraulic pre-expulsion for palletizing solutions with also possibility to swing completely free during the catchment
• No damage of media-coupling |
|
Zeropoint Quickclamping extrusion cylinder for applications by:
• Round tables and 5 axes milling equipment, turning machines
• Better level holding
• Large support surface
• Free passage for flange piece, tubes, forks ... |
|
Twist Clamp suppliers Cylinders
Combines linear and 90-degree rotary motion with an internal pin/cam mechanism.
Rotary action moves a clamping arm away from the workpiece, allowing for easy loading and unloading of parts. |
|
We supply two types of hydraulic pivoting tension jacks with different pivoting angles.
- With the customary quality features.
- High quality
- Compact
- Hardened piston rods
- Short delivery times - large range
- Piston diameter 25 to 50 mm
- Various standard strokes |
|
| ... products without technical information |
| |
We supply two types of hydraulic pivoting tension jacks with different pivoting angles.
- With the customary quality features.
- High quality
- Compact
- Hardened piston rods
- Short delivery times - large range
- Piston diameter 25 to 50 mm
- Various standard strokes |
|
| ... products without technical information |
| |
Twist Clamp suppliers Cylinders
Combines linear and 90-degree rotary motion with an internal pin/cam mechanism.
Rotary action moves a clamping arm away from the workpiece, allowing for easy loading and unloading of parts. |
|
Features Include:
- Simple Inlet Design
- Constant Air Flow
- Up to 7,000 RPM Capability
- Standard Built in Trapping
- Optional Trip Rod and Thru Port |
|
| ... products without technical information |
| |
Located in the north of France, SP2i is specialize in the design and the manufacture of lifting and handling tools for all type of heavy loads.
Today, our experience and know-how in this field, allow us to offer you a large range of tongs adapted to your needs and to your working environment, in the respect of the standards and regulations in force, as well as your own requirements.
Even if the iron and steel sector is our main customer, we also work with the car industry, the railway industry and paper mills … too.
Our tongs are robust, reliable, and a great handiness.
A lot of options are available to satisfy your requests.
Horizontal grasp
Several Versions : mechanical, Electromechanical, Electrohydraulic
Types of loads :
- Coils,
- Flat products,
- Ingots, Slabs …
- Professional press Tools.
- Professional bars or pipes bundles …
- … |
|
|
|
