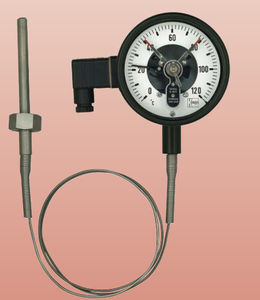

Badotherm contact gauges are manufactured with two types of switching methods. A SPDT micro switch build on the movement or a precision contact system. The micro switch can have a factory set point or with a on-site adjustable set point. The precision contact systems can be delivered as a magnetic, electronic, or inductive system. All gauges, contacts and wiring comply with the latest standards.
|
|
Indicators
Bimetal measuring system
Liquid- or gas-filled measuring system
Microswitch contact
Accessories
Panel- and surface-mounting
Panel-mounting
Slow-break contact
Accessories
Contact dial thermometers in a steel or stainless steel housing, 1 switching output, 100 and 160mm diameter or square bezel 96 x 96mm, Class 1, Protection up to IP65 (60.8425)
|
|
Applications:
- Universally suitable for plant, machinery, tank and
apparatus construction
- Facility management
- With liquid damping also suitable for applications, with extreme vibrations
- Twin-Temp combined bimetal thermometer with local
readout and electrical output signal
Special Features:
- Twin-Temp: Two independent measuring systems in one
instrument (bimetal and Pt100)
Description:
The Twin-Temp combined bimetal thermometer offers two measuring systems in one instrument. A bimetal thermometer displays the measured values on site, while the integrated Pt100 resistance sensor provides an electrical signal for further processing.
|
|

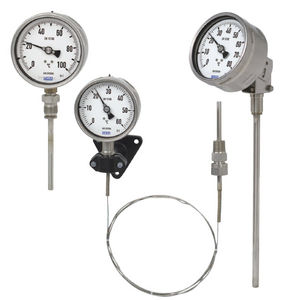

This range of instruments includes indicating and controlling thermometers using the gas expansion principle.
The measuring principle relies on the fact that a non toxic gas expands with increasing temperature. The resulting increase of pressure in a closed system produces a pointer deflection directly proportional to the change in temperature.
SIKA precision dial thermometers with gas filling are produced in accordance with DIN EN 13190 class 1.
Gas filled instruments have a minimum bulb diameter of 6 mm subject of course to the length of immersion.
Exact measuring results obtained by a ambient temperature between -25 and +60°C.
SIKA precision dial thermometers cover the ranges between -60 and + 600°C.
|
|
|
|
|
|
Available Models

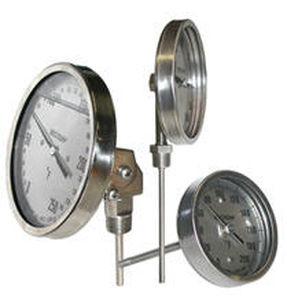

ADJ Series Adjustable Bimetallic Thermometers
U.S. Gauge offers 3" and 5" heavy duty, industrial bimetallic thermometers with a versatile case and stem that can be adjusted to almost any angle for easy viewing.
BAC Series Bimetallic
U.S. Gauge offers 3" and 5" heavy duty, industrial bimetallic thermometers with a 90º back angle, rear threaded union connection design. These thermometers, with 316 stainless steel wetted parts, are rugged and commonly used in industrial, pulp and paper, food and beverage processing, HVAC, and OEM applications.
BOTC Series Bimetallic
U.S. Gauge offers 3" and 5" heavy duty, industrial bimetallic thermometers with a threaded union connection and straight form design. These thermometers, with 316 stainless steel wetted parts, are rugged and commonly used in industrial and OEM applications.
BACO Series Bimetallic
U.S. Gauge offers 2" heavy duty, industrial bimetallic thermometers with a standard rear 1/4-18 NPT connection. These thermometers, with 304 stainless steel construction, are rugged and commonly used in light industrial and OEM applications. The thermometers may be silicone filled for additional vibration dampening.
POC Series Testing Thermometers
U.S. Gauge offers a pocket sized thermometer used by inspectors, service and maintenance personnel, and technicians for general checking in food service, refrigeration, air conditioning, hot asphalt, and food processing applications.
|
|
¡Ü Material of Case & Cover: 316 stainless steel
¡Ü Material of Stem: 316 stainless steel
¡Ü Lens: Glass, safety galss available
¡Ü Housing Enclosure: IP65, liquid filled available
¡Ü Type: AY/AI/AY-QS
¡Ü Range Limit: -50¨¬C to 600¨¬C
¡Ü Stem Dimensions: ©ª4,6,8,10mm available
¡Ü Stem Length Limit: 65~1000mm
£ External Zero Adjustable
¡Ü Accuracy: ¡¾1% (FS)
¡Ü Over Range Protection: 130% FS
¡Ü Dial Size: ©ª3",4",5" available
¡Ü Process Connection: 1/2"NPT standard, others available
|
|
Bimetal pipe mounting thermometers TBA 72
Fields: Machine and Process Industry, Power Plants and Distribution, Automotive Industry
Type TBA72
Bimetal thermometers TB-FIX ø 80 - 100
Fields: Machine and Process Industry, Power Plants and Distribution, Automotive Industry
Type TBFIX-TBHA
Small Bimetal Thermometer ø 32
Fields: Machine and Process Industry, Power Plants and Distribution, Automotive Industry
Type TB 32
|
|
KLT RXX - 2008/05 E
Application:
Bimetal thermometer is certain for contact measurement of temperature ofgaseous or liquid media.
Suitable for industry, heating, water supply, air-conditioning, pneumatics.
|
|
Models- 975, 2050
Stainless Steel Thermometers
Temperature element
(a) Bi-Metal System
(b) Inert Gas System
Case
AISI 304 Stainless Steel
Bezel Stainless Steel (Bayonet type).
Weatherproof Construction
Dial
White Aluminium (Black Printing)
Pointer
Black Aluminium
Window
Sheet Glass
Standard Size
100, 125,150mm
Accuracy class
1% Gas filled 1.5% Bi-Metal
|
|
|
|
|
|
Dresser Instruments pioneered the easy-to-read Maxivision® dial on the Ashcroft® bimetal thermometer. The Ashcroft® Maxivision® dial eliminates parallax error and can be read at any angle making it the easiest-to-read dial on the market today.
Ashcroft® bimetal thermometers are manufactured at an ISO 9001 certified facility in Stratford, CT to ASME B40.3 Grade A accuracy of 1% of span. The Ashcroft® bimetal thermometers come in 2", 3" and 5" dial sizes and in Farenheight, Celcius or dual scale ranges. Various configurations are offered with hermetically sealed cases such as lower, rear or everyangle connections with a tamper proof case or an external adjustment, depending on your needs. Standard stem lengths range from 2 1/2 through 24 inches while non-standard stem lengths up to 60 inches can be custom made. Trained product specialists are available to assist in the selection of thermowells for applications where the bimetal stem will be exposed to pressure, velocity or corrosive fluids.
|
|
Measuring range -30 ... +50 up to 0 ... 500 °C
Connection back or bottom
smooth, G1/2 AG, flange, megnetic case,
st. st., steel, copper alloy
Housing Material aluminum or macrolon
Diameter of housing 63, 80, 100 mm
Accuracy class 2,0
Option gliding pointer
|
|
Description & Features:

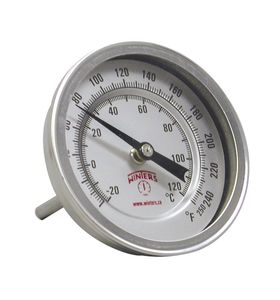

• A general purpose, tamper-proof, 304 stainless steel thermometer
• Hermetically sealed case
• Bi-metallic sensing element for reliable readings
• Back connected
• Stem length from 2.5" (63mm) and up
• ±1% accuracy
• Anti-parallax dial that reduces operator reading errors
• Lexan® lens
• 1 year warranty
Applications:
• Heating, ventilation, air conditioning, food processing, wastewater, industrial processes, compressors
|
|
|
Bimetal strips are used in temperature-measurement technology firstly as „sensors“ for bimetal thermometers and secondly as switching elements in temperature switches. Both processes are used in the Temperature Measurement Technology Division at tecsis.
|
|

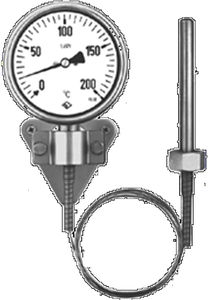

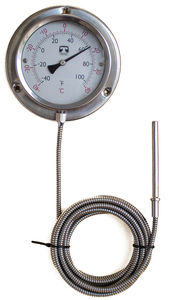

£ Remot Mounting Type
¡Ü Material of Case & Cover: 316 stainless steel, option available
¡Ü Material of Sensor Bulb Capillary Tube, Flex Tube: SS304, SS316 and others available
¡Ü Lens: Glassm safety glass, acrylic available
¡Ü Temp Range: -200¨¬C~+650¨¬C available
¡Ü Housing Enclosure: IP65, liquid filled available
¡Ü Accuracy: ¡¾1% (FS)
¡Ü Capillary Tube Length Limited: Liquid filled type: 10M, Gas filled type: max. 50M, Option available
¡Ü Stem Dimensions: ©ª6,8,10,12mm available
¡Ü Over Range Protection: 130%(FS)
¡Ü Contact Type Limit Switch: Available 7 functions for usage
¡Ü Process Connection: 1/2"NPT standard, other availalbe
|
|
standard, DN63-80-100-125
"all stainless steel" DN100-125-150
watertight estate, DS80-125
|
|
KLTCH - 2008/05 E
Application:
Thermometer is certain for contact ous or liquid media.
Suitable for chemical industry, food measurement of temperature of gase- industry, mechanical engineering.
|
|
KLT02XX- 2008/05 E
Application:
Thermometer is certain for contact measurement of temperature of gaseous or liquid media.
Suitableforindustry, heating, water supply,air-conditioning, pneumatics.
|
|
|
Bimetal thermometers are applied for industrial temperature measurement in liquid or gaseous media. This model with stainless steel bayonet ring case is mainly used in the chemical industry, petrochemistry, and in the food and beverage industry.
|
|
| ... products without technical information |
| |
|
REOTEMP is recognized as a leading manufacturer of temperature instrumentation. We provide bimetal thermometers to a variety of process markets worldwide. REOTEMP is an ISO 9001 certified manufacturer. We are dedicated to continual improvement, on-time deliveries, high quality products, and exceptional customer satisfaction.
|
|
|
|
