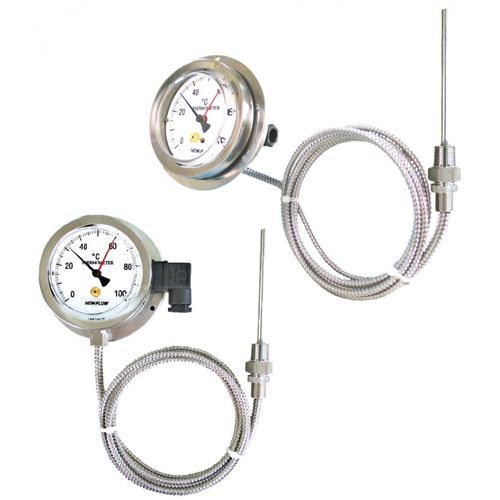

Liquid expansion thermometer SAE4dialIP65insertion
Add to favorites
Compare this product
Characteristics
- Technology
- liquid expansion
- Display
- dial
- Protection level
- IP65
- Configuration
- insertion
- Applications
- industrial
- Other characteristics
- stainless steel, glass, differential
- Temperature
Min.: -200 °C
(-328 °F)Max.: 600 °C
(1,112 °F)- Precision
1 %, 1.6 %, 3 %
- Dial diameter
100 mm, 150 mm
(3.9 in, 5.9 in)
Description
SME4/SAE4 Dial Size: ø100mm
SME6/SAE6 Dial Size: ø150mm
Technical Data
Remote Mounting Type
Material of Case & Cover: 316 Stainless Steel, option available
Material of Sensor Bulb Capillary Tube, Flex Tube:
SS304, SS316, and others available
Lens: Glass, safety glass available
Range Limit: -200~+600℃, option available
Housing Enclosure: IP66
Accuracy: Gauge Indication: ±1% F.S; Switch Acting Differential: ±1.6~3% F.S
Capillary Tube Length Limited: Liquid filled type: 10M;
Gas filled type: max. 50M; option available
Stem Diameter: ø6, 8, 10, 12mm available
Process Connection: 1/2"NPT standard; other available
Over Range Protection: 130% F.S
Switch Form: One setting point SPDT x 1 or Two setting point SPDT x 2
Set Point: Full scale range available
