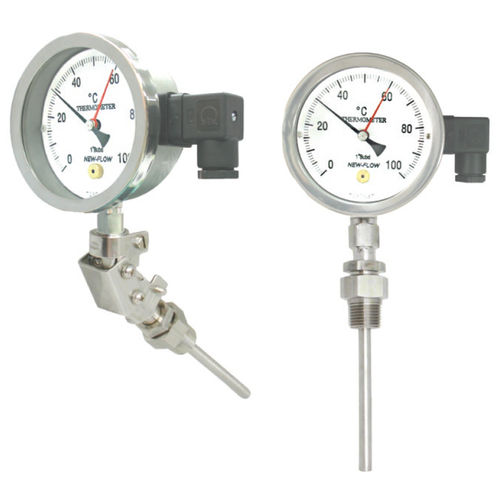

Liquid expansion thermometer SHE_SHEQS_4_6
dialIP65insertion

Liquid expansion thermometer - SHE_SHEQS_4_6 - Golden Mountain Enterprise - dial / IP65 / insertion
Liquid expansion thermometer - SHE_SHEQS_4_6 - Golden Mountain Enterprise - dial / IP65 / insertion
Liquid expansion thermometer - SHE_SHEQS_4_6 - Golden Mountain Enterprise - dial / IP65 / insertion - image - 2
Liquid expansion thermometer - SHE_SHEQS_4_6 - Golden Mountain Enterprise - dial / IP65 / insertion - image - 3
Liquid expansion thermometer - SHE_SHEQS_4_6 - Golden Mountain Enterprise - dial / IP65 / insertion - image - 4
Liquid expansion thermometer - SHE_SHEQS_4_6 - Golden Mountain Enterprise - dial / IP65 / insertion - image - 5
Add to favorites
Compare this product

Characteristics

Technology
liquid expansion
Display
dial
Protection level
IP65
Configuration
insertion
Applications
industrial
Other characteristics
stainless steel, glass, differential
Temperature

Min.: -200 °C
(-328 °F)

Max.: 600 °C
(1,112 °F)

Precision

1 %, 1.6 %, 3 %

Dial diameter

100 mm
(3.9 in)

Description

Technical Data Direct Mounting Liquid, Gas filled available Dial Size: SHE4/SHE4-QS: ø100, SHE6/SHE6-QS: ø150 Material of Case & Cover: 316 stainless Material of Stem: 316 stainless steel Lens: Glass, Safety glass available Housing Enclosure: IP66 Range Limit: -200℃ to 600℃ Stem Dimensions: ø6, 8, 10, 12mm available Stem Length Limit: 65- 1000mm, option available Accuracy: Gauge Indication: ±1% F.S; Switch Acting Differential: ±1.6~3% F.S Process Connection: 1/2"NPT standard, other available Over Range Protection: 130% F.S Switch Form: One setting point SPDT x 1 or Two setting point SPDT x 2 Set Point: Full scale range available
