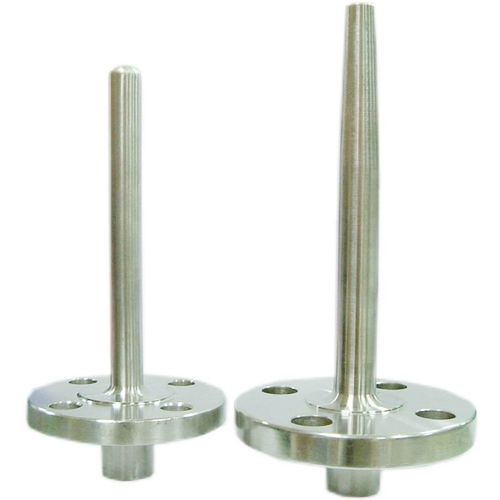

Flange thermowell BLFfemalestandardtitanium
Add to favorites
Compare this product
Characteristics
- Mounting
- female, flange, standard
- Material
- brass, titanium, stainless steel, carbon steel
- Other characteristics
- for temperature sensors
Description
Technical Data
Welded type: WSF, WLF
Drilled bar stock type: BSF, BLF, BTF, BTLF, BPSF, BPLF
Material: SS304, SS316, SS316L, Monel, Hastelloy C 276,
Brass, Carbon Steel, Titanium (special material available upon request)
Process connection: 1/2" ~4"flange available, flange rating-ANSI, DIN, JIS available (special flange upon request)
Instrument connection: 1/2"NPT, 3/4""NPT Female available (special thread upon request)
Flange Wells Series
* F: Length is suitable for flange size 3/4", 1", 1-1/2", 2", and flange rating 150# & 300#. Other size and rating (F) length is by makers standard.
Catalogs
Flange thermowell BLF
4 Pages
