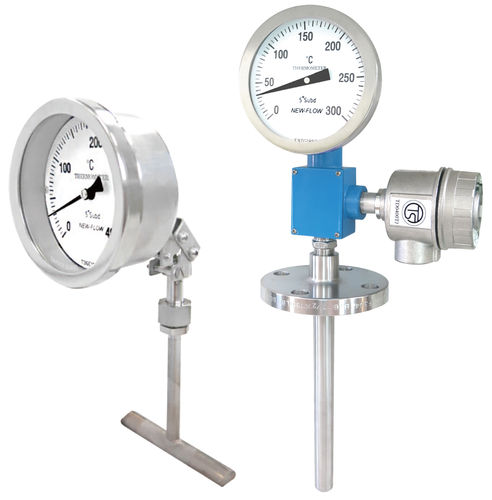

Dial thermometer SRG_SHG

IP66flangesurface-mount

Technical Data Liquid, Gas Filled Available Optional Type: • SRG-QS: Surface mount sensor bulb c/w every angle connection • SRG-W: Surface mount sensor bulb c/w capillary & wall mounting flange • SRG-P: Surface mount sensor bulb c/w capillary & panel mounting flange Case & Cover Material: SS304 or SS316 available Stem Material: SS316 Lens: Glass, Safety glass available Sensor Bulb Capillary Tube, Flex Tube Material: SS304 Capillary Tube Length Limited: Liquid filled type: 10M Gas filled type: max. 50M; option available Stem Dimensions: ø10, 12mm; option on request Stem Length Limit: Standard 100mm(H); option on request Sensor Bulb Length: Standard 120mm(L); option on request Over Range Protection: 130% F.S. Switch Form: Limit Switch: available 7 functions for usage Micro Switch: One setting point SPDT x 1 or Two setting points SPDT x 2 Switch Data: Please see the Contact Type Assemblies Table
