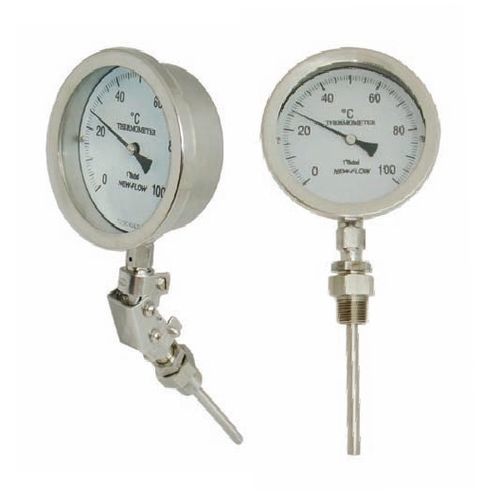

Liquid expansion thermometer SH seriesdialIP66IP65
Add to favorites
Compare this product
Characteristics
- Technology
- liquid expansion
- Display
- dial
- Protection level
- IP65, IP66
- Configuration
- insertion
- Applications
- industrial
- Other characteristics
- stainless steel, glass, contact
- Temperature
Max.: 600 °C
(1,112 °F)Min.: -50 °C
(-58 °F)- Precision
1 %
- Dial diameter
100 mm, 150 mm
(3.9 in, 5.9 in)
Description
Direct mounting
Liquid, Gas filled available
Lens: Glass, safety glass available
Stem dimensions: ø6, 8, 10, 12 mm available
Stem length limit: 65-1000 mm, option available
Process connection: 1/2”NPT standard , Other available
Over range protection: 130%(FS)
Contact type limit switch: available 7 functions for usage.
Catalogs
SH series
1 Pages
