The parts to be oriented are delivered to you in: containers, cases, boxes, loose or in bags.
You need to tip the parts into orienting hoppers which will supply the vibratory bowl feeders.
|
|
Hoist Tipper
ERI series
The ERI hoist tipper series is used to lift and tip up to a maximum quote of 3m, to unload industrial caissons which hold a maximum of 3000kg ; the rotating angle of the caisson can reach 130°. The loading of the caisson is carried out by using a lift truck or a transpallet. The machine has a reduced encumbrance seen from above and does not have any lateral protrusions which can be dangerous for workers. The upward and downward speeds are singularly regulated.
ERI-TCV series

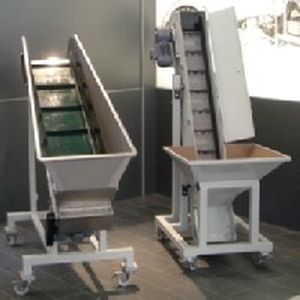

By applying a hopper with a vibrating channel which doses the pieces towards the interlocking point to the base model, it is possible to realise hoists with vibrating dosers. This series of equipment has an electro-hydraulic action. This equipment can be adapted to the different needs of the customer.
|
|
Elevator electric & pneumatic
Loads 200Kg, 350k, 500Kg

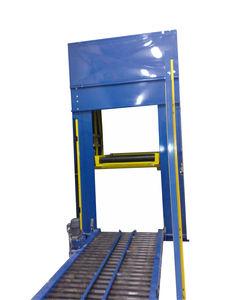

Elevators has pallets electric & hydraulic has chains or has screw
Loads 800Kg, 1200Kg, 2000Kg
|
|
|

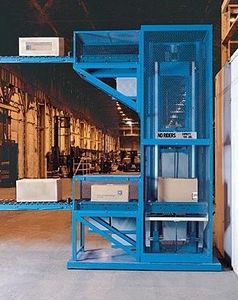

Pflow hydraulic lifts provide reliable and economical vertical lifting for mezzanines, balconies, and other two-level applications. Pflow hydraulic lifts offer heavy-duty construction and advanced safety technology with proven reliability. Our hydraulic lifts are available in straddle or cantilever design.
|
|
|
Pflow mechanical vertical lifts offer versatility and dependability for high-speed and multi-level applications and for moving large, heavy loads. Pflow mechanical vertical lifts offer durable, heavy-duty construction and maximum flexibility in carriage size, capacity and traffic patterns.
|
|
Model STXXS Double High Lift
This double-high hydraulic scissors lift table allows extended vertical travel with a compact platform length. It is ideal for applications such as sheet-stacking and transferring materials between different levels in a building.
|
|
|
|
|
|
Hydraulic VRC Material Lift Benefits:
- Lift Capacity: 1,000 to 4,000 lbs.
- Lifting Height: Up to 19 ft.
- Lifting Speed: 20 fpm
- UL-508A labeled control panel
- ’Gate Closed’ indicator light on control panel
- Momentary contact ‘Up’ and ‘Down’ push-button controls
- All control wiring stepped down to 24 volts for safety
- Control panel and hydraulic pump unit ship as a prewired assembly
- Fabricated by AWS D1.1 Certified Welders
- Constructed for “bolt-together” installation. Field welding not required
- All bracing material provided
- Structural grade fasteners and floor anchors provided
- Industrial strength carriage platform handles heavy point loads
- Roller bearings with easy-access grease fittings for all wheels and sleeves
- Hydraulic pump motor sized for continuous duty
- Dual hydraulic rams and lifting cables provide redundant safety
- Hydraulic rams pull, rather than push, for added strength and longer life
- Hydraulic operating pressure maintained below 1,600 psi for extended component life
- Oversized oil reservoir provided to reduce possibility of oil overheating
- Automatic shut-off valves for broken hydraulic hoses
- Manual lowering valve provided for emergency use
- High-flex IWRC lifting cable provides extended service life
- Broken cable free-fall safety cams rated for 7,000 lbs.
|
|

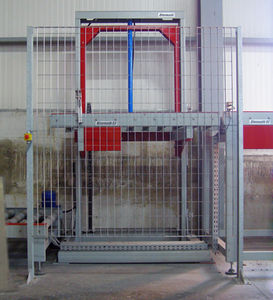

HYDRAULIC MONTACARGA
Defined to have solely a column of sustención and guidance of cylinder and platform, which together with its versatility in load and surface, makes extremely adaptable to the needs of the industry.
This one solution allows the access by three points different from plafaforma. what facilitates the load and distribution in conflicting points.
|
|
|
|
|
|
LAWECO guaranteeing their customers 'short notice' deliveries within a maximum of four weeks as from January 2002. Not only has the price level been kept unchanged for the majority of products, but quality and safety further improved. This holds especially true for the optimised maintenance free roller bearings. The exclusion of the less costly bush bearings entails a significantly longer operating life and a higher degree of utilisation. The self-contained base frame of the lift table does not require subsequent grouting, thus offering an unrivalled quality standard with its torsion resistant frame construction
LAWECO supplies the scissor arms exclusively of solid material instead of frame sectional steel in order to improve the stability and robustness of the lift tables even more. Freely adjustable limit switches leave the operator with more flexibility and permit him to universally use the lift table within its useful stroke. The maintenance supports are designed for the individual maximum load. The comprehensive installation kit, comprising of dowels, setting screws, shims etc. is included in the price. The li
|
|
|
|
|
|
LAWECO guaranteeing their customers 'short notice' deliveries within a maximum of four weeks as from January 2002. Not only has the price level been kept unchanged for the majority of products, but quality and safety further improved. This holds especially true for the optimised maintenance free roller bearings. The exclusion of the less costly bush bearings entails a significantly longer operating life and a higher degree of utilisation. The self-contained base frame of the lift table does not require subsequent grouting, thus offering an unrivalled quality standard with its torsion resistant frame construction
LAWECO supplies the scissor arms exclusively of solid material instead of frame sectional steel in order to improve the stability and robustness of the lift tables even more. Freely adjustable limit switches leave the operator with more flexibility and permit him to universally use the lift table within its useful stroke. The maintenance supports are designed for the individual maximum load. The comprehensive installation kit, comprising of dowels, setting screws, shims etc. is included in the price. The lift table can be connected by means of a CEE plug and is supplied ready for installation. The compliance with all required European safety related regulations goes with
|
|
Particularly safe:
- New double safety protection through safety microcontact rail beneath the shear blades·
Particularly economical:
- Modular design (accessories) allows more economical retrofitting
- Long service life due to optimized bearings (needle bearings) 20 cykles per hour, 2-shift-operation·
Particularly productive:
- Harmonious, jolt-free raising + lowering movement
- Optimum ergonomics due to precise product positioning·
Particularly flexible:
- High mobility when changing the work station
- Simple assembly, installation due to plug-in coupling connections·
Particularly compact:
- Low height of only 80 mm
- Minimum dimensions of the lifting table with reference to the Euro-pallet and skeleton container
|
|
With this innovation Laweco can offer their customers an increased level of availability, reliability and precision at comparable conditions.
Other benefits are specified in more detail, in particular with regard to the automobile industry. The advantages worth highlighting in this area are the precise positioning accuracy and excellent loading cycle. This is combined with a high lateral stability together with a uniform, harmonious motion – the Framo® push-pull chains play an important role in this. Laweco push-pull chain lift tables are distinguished by their low maintenance and long service life.
High lifting speeds and the environmental protection due to a hydraulic oil-free system, round off the advantages for the customer.
|
|
industrial application - lift applications :
This scisors lift platform is a Standard automotive lift table for automotive industry
A lift table, running on rails, enables vertical positioning of a car chassis to enable weld checks to be carried out, the table being fitted with a full wrap around security skirt.
lenght : 5000 mm
width : 1300 mm
lower position : 470 mm
higher position : 1200 mm
|
|
|
|
|
|
LAWECO-lifting platforms with spindle drive are a further development of, and complement to, the LAWECO hydraulic scissor lift platforms which are extremely successful in the market.Typical applications are wherever hydraulic oil is not desired, a high reproducibility throughout the entire effective stroke and low noise operation are required as well as specified heights must be absolutely observed.Lifting platforms with spindle drive meet these requirements:
High availability – Safety – Precision
Areas of application: Automobile industry – Chemical industry – Rubber industry – Loading area.
Higher, faster, reliable.... Our customers take these points for granted.
The lifting platforms are used in 3 shift operation for years to come. Reliability becomes standard.
Plant integrated lifting platforms are used in machine lines for feeding and stacking down as well as to bridge the height differences.
Wether in the automobile industry, food industry, chipboard production, steel and sheet metal processing or aircraft industry LAWECO plant integrated platforms ensure a trouble-free material flow.
|
|
|
Pflow Industries has the engineering capabilities, experience and technical know-how to solve a myriad of vertical lifting problems. We have designed custom vertical lifts to move materials that weigh 10 lbs. to over 100,000 lbs with carriages from 30" x 30" to 30" x 30". vertical heights from 4' to over 200'. We have built large load work platforms, over and under equipment for assembly lines, hopper transfer systems and more. Pflow offers complete single-source responsibility for system design, installation and total support for all components including conveyors, VRCs, and programmable controls.
|
|
The wide range of Bolzoni lift tables, with their usual safety and reliability features provide an effective solution to most lifting problems. Vertical double scissor lifts allow to achieve greater stroke without increasing the platform size are mainly used to transfer goods from one level to another.
Capacity from 500 to 3000 kg and wide range of accessories availabl to meet specificic requirmentes and customised solutions and to achieve eaven higer safety functions where conditions require.
Our tables comply with the European Safety of Machinery standards EN 292, Machinery Directive 98/37/EC and Safety requirements for lift tables EN 1570.
|
|
|
|
|
|
The Roto-Max was designed from the ground up with the operator in mind. The Roto-Max electric hydraulic work positioner places the load at the operator to determine where he or she would like the work load positioned.
t doesn't matter how short or tall the individual is since the operator determines the most comfortable working height. The Roto-Max allows complete flexibility to do the ergonomically safest job with maximum efficiency.
Whether the load is one pound or 3,500 pounds, the positioner height does not change until the individual wants it to change.
With a lowered height of only 6.5", an operator has easy access to the top layer of product. The raised height of 32.5" (plus pallet height) is ideally suited for most applications.
The 43" diameter top rotates easily, thus giving the operator access to product without having to stretch or walk around.
The high performance electric 1 & 1/2 hp motor runs on a standard 20 amp 115 volt single phase circuit.
Roto-Max has a capacity of 3,000 lbs. with a 14 second lift speed (RTMX-30). The high speed model (RTMX25HS) has an 8 second speed and 2,500 lbs. capacity.
A magnetic backed control box is standard and a foot control siwtch is available as an optional item.
|
|
|
|
|
|
The best value in lift tables with unparalleled features! Reduces awkward bending and lifting since the work load is always at the correct level. The possibility of back injuries is also reduced and productivity is increased.
The MAX-Lift is a superior scissor lift table currently offered in the 2000-6000 lb capacity range.
The MAX-Lift Scissor Lift table is a quality table with features such as:
* Integral, retractable maintenance safety bars
* Trapped top & bottom scissor arms
* Grease fittings on pivot points & cam rollers
* Magnetic backed control box allows operator to place controls within easy reach.
* Captured 'Lift-Lok' secures top and base leg rollers and allows for easy maintenance access in lowered position
* Easy access for service. Zerk fittings on camroller and pivot points extend the life of the table by allowing for lubrications in place of throw away, "sealed for life", bearings
The MAX-Lift Scissor Lift Table has a vertical travel range from 24" to 60" and can satisfy most applications. The MAX-Lift Specifications coupled with its unique Features raise the MAX-Lift Scissor Lift Table above any other.
|
|
The Max-M22 ergonomic scissor lift table incorporates all the popular features of the time-tested Max-Lift premium lift table into an economical quality lift table that competes handily with lower priced tables on the market.
The Max-M22 has a 2,200 lb capacity with a 36" vertical travel. There are 4 standard top sizes available with others available upon request.
Features high quality cam rollers, pivot pins and bearings. All welded construction meets AWS standard service. The Max-M22 conforms to or exceeds ANSI MH 29,1-1994.
|
|
Velmex announces a series of manually operated UniSlide Elevating Tables. Used in science and industry, applications include gauging, positioning, feeding, inspection, assembly, packaging, dispensing, and testing.
The positioners are constructed of 6062-T6 aluminum alloy and low-friction polymer bearings. The tables in the background have a stable base plate and a right angle platform shelf secured to the slider. The platform can be inverted to reduce the minimum platform height to 0.75"-1". Lead screw advance is 0.100"/turn. Travel distances range from 1" to 12". Load capacities range from 30 to 100 lbs. Options include black anodized finish, lock screws and position readout.
The table in the foreground uses a large thumb wheel to turn a central lead screw between parallel guides to raise and lower the top platform. With this design, the space above and around the table top is unobstructed. Retracted height is 2.25". Travel range is 1"-3". Load capacity is 25 lbs.
|
|
The wide range of Bolzoni lift tables, with their usual safety and reliability features provide an effective solution to most lifting problems, to augment the safety by increasing the productivity.
Loading lift tables are used to load and unload vehicles by pedestrian or fork lift trucks without a loading dock for quick handling and designed to operate with maximum safety for off-centred crossing loads.
Capacity from 1.000 to 10.000 kg and wide range of options available such as wheel stops, goal post barriers, safety handrails manual bridge plate etc to meet specificic requirmentes and customised solutions.
Our tables comply with the European Safety of Machinery standards EN 292, Machinery Directive 98/37/EC and Safety requirements for lift tables EN 1570.
|
|
Low profile lift tables, due to their low closed height, do not require a floor pit, offering flexibility of location and keeping installation costs to a minimum. It is possible to transport the table easily and in safety by a “mobility kit” from one work station to another providing an even higher flexibility in use.
Two versions are available, either full top platform or “U” shaped, which is particularly useful when loading a pallet safely onto the table using a hand pallet or pedestrian truck without the need for an access ramp.
Capacity from 500 to 2000 kg.
Our tables comply with the European Safety of Machinery standards EN 292, Machinery Directive 98/37/EC and Safety requirements for lift tables EN 1570.
|
|
|
|
|
|
In addition to offering all the safety features of our regular "Guardian" Series lift tables, our low profile models have a lowered height of only 3.25". The low profile feature provides greater flexibility since a variety of applications can be accommodated. And, installation costs are reduced since the need for a floor pit is eliminated.
With capacities ranging from 1,100 pounds to 3,300 pounds, the "Guardian" Series low profile lift tables are available in three versions with either a rectangular, "U" or "E" shaped top for numerous material handling applications.
The "U" shaped low profile table is ideal for handling wire baskets, containers and plastic and wooden pallets that have open bottoms. This design allows loading with either a manual or electric pallet truck without the need for a loading ramp.
The "E" shaped low profile table has all the features as the U-Lift and the other Guardian low profile tables. It is available in a 2,200 lb capacity. The advantage of the E-Lift is the center opening measures 28.9" which is ideal for a standard 27" wide pallet truck. The added center support of the E-Lift is designed to help prevent the pallet from deflecting downward in the center due to the wider center area. The center support is also shorter than the outside legs to allow easier access with the pallet truck. The E-Lift like the U-Lift is designed for use with open bottom pallets, skids, containers or wire baskets.
|
|
These practical and economical portable lift tables provide a convenient and cost saving solution to numerous material handling situations. The perfect answer for order picking, die handling, assembly operations or use as an efficient delivery cart. The Maxx-Mini Lifters are designed to reduce employee injuries and increase productivity.
With seven different models from which to choose, the Maxx-Mini Lifters have proven to be indispensable in all material handling operations. Ranging in capacities from 330 lbs. (150 kg) up to 2,200 lbs. (1,000 kg), they can handle virtually any job, big or small
|
|
The wide range of Bolzoni lift tables, with their usual safety and reliability features provide an effective solution to most lifting problems including heavy duty applications throughout industry (as part of production process, for machine feeding or stacking etc).
Ergo-lift range is designed as a “work station” to provide improved ergonomic conditions to ensure the health, safety and comfort of the operator together with improved productivity and efficiency.
Capacity from 500 to 10.000 kg and wide range of accessories available to achieve eaven higer safety functions where conditions require.
Our tables comply with the European Safety of Machinery standards EN 292, Machinery Directive 98/37/EC and Safety requirements for lift tables EN 1570.
|
|
|
|
|
|
Lift Products MAX-Tilt & MAX-LIFT & TILT tables are designed for those applications where tilting or lift and tilting the load provides for improved access to the product. Table available with 45, 60 or 90 degree tilt.
Both series are electric hydraulic with the 45 degree models powered up and gravity down while the 60 and 90 degree models are powered both up and down with double acting cylinders. With capacities of 2,000 - 6,000 lbs., the MAX-series table can handle most applications.
FEATURES:
* 3/4 or 1 1/2 hp motor. 115/230 volt single phases or 230/460 3 phase voltage. Motor is internally mounted on most models and externally mounted on table sizes with 24" wide base.
* Push button magnetic back control box standard with 6' cord
* 10' power cord standard
* Hydraulic gear pump with check valve, solenoid valve, filter and velocity fuse standard.
* Smooth steel deck with 4" high lip on hinge end.
* High quality chrome plated cylinder.
* Control box includes magnetic starter transformer, thermal overload and fuses
* Designed for surface mount or lift table mounting.
* Powered up on 45, 60 and 90 degree tilt. Gravity down on 45 degree and powered down on 60 and 90 degree tilt.
* Tilt limit switch
* Color yellow top with blue frame.
OPTIONS:
* Foot control switch.
* Tapered toe guards for pit mount.
* Lowering beeper.
* Remote power unit.
* Accordion bellows safety skirting.
* Special color.
* Adjustable tilt limit switch.
* Raised base.
|
|
The Stowaway features a generous work surface of 72-1/4" x 96-1/2" [1835 x 2450 mm] with a rugged, long-lasting felt top designed to reduce vacuum stick when used for cutting glass or other nonporous materials. High-strength construction provides durability without excess weight. Crossed support legs ensure a rigid and stable, 35" [889 mm] high work surface with a 500 lb [225 kg] load capacity.
The scissor-action tilt design of the Stowaway floats the pivot point forward as the top lifts, providing nearly effortless manual tilt . . . without the extra weight of a counter-balanced system. Bronze pivot bushings and nylon washers make movements smooth and quiet. Rubber rollers support glass, laminate or other sheet materials when tilted and flip out of the way when not needed.
|
|
Our goods only lifts are used in the industry to provide transport solutions for load shuttling between different levels.
The regulations for these lifts are far less constraining than those for goods lifts allowed to carry personnel.
Our lifts are CE certified, they comply with Machine Directive 98/37/CE and norm project PR EN 81-31.
Our lifts can be delivered with a self-bearing frame. A shallow pit allows for the cabin floor fitting at ground level. Some lifts can be fitted on the ground, with access through a ramp.
A 3D drawing is supplied for the integration of the lift in your building.
We can of course supply all peripheral protections, servo-driven doors and gates, carry out the installation, trying out as well as the maintenance (maintenance contracts).
In order to meet most of your requirements, this range of products can operate with 3 different technologies: column hydraulics, scissor hydraulics and electric winch.
|
|
Our goods only lifts are used in the industry to provide transport solutions for load shuttling between different levels.
The regulations for these lifts are far less constraining than those for goods lifts allowed to carry personnel.
Our lifts are CE certified, they comply with Machine Directive 98/37/CE and norm project PR EN 81-31.
Our lifts can be delivered with a self-bearing frame. A shallow pit allows for the cabin floor fitting at ground level. Some lifts can be fitted on the ground, with access through a ramp.
A 3D drawing is supplied for the integration of the lift in your building.
We can of course supply all peripheral protections, servo-driven doors and gates, carry out the installation, trying out as well as the maintenance (maintenance contracts).
In order to meet most of your requirements, this range of products can operate with 3 different technologies: column hydraulics, scissor hydraulics and electric winch.
|
|
|
Double Pantograph lifts provide their operators with a high traveling and adjustable work platform. These units also utilize a minimum amount of floor space. This style of lift allows a standard platform size with larger travel. This family incorporates the Autoquip Standard of Quality that is respected worldwide. They bring the work to the worker and increase a workstation's productivity.
|
|
|
|
