Hydraulic elevator FPSDJ 1016 PB-PN

battery-powered

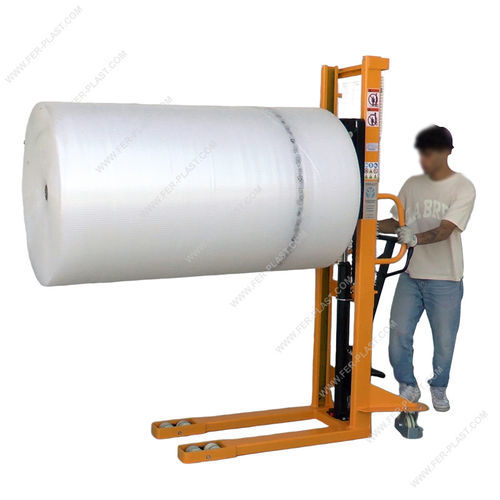

Manual elevator for lifting large size material rolls. Reel lifter with hydraulic pedal pump and rudder, steel structure with rounded fork tips, nylon directional wheels with parking brake and double front rollers, forks with fixed width. Available in the following models: - FPSDJ 1016 PB with reel holder cradle - lifting mm. 1600 - FPSDJ 1016 PN with fixed reel holder pin - lifting mm. 1600 The length of the table or the fixed bobbin holder pin is approximately 1100 mm. ATTENTION: all lifters are shipped already assembled, tested one by one before being packed in a professional way and complete with CE certification. MODEL: FPSDJ 1016 PB-PN Load: Kg. 200 (300 kg. model PB) Maximum height: mm 1600 Accessories length: mm 1100 Weight: Kg 230 Overall dimensions: mm 1750 x 740 x 2080 h The FPSDJ forklifts are very practical and robust forklifts, recommended in environments with smooth floors (for example warehouses) where the occasional and non-continuous lifting of pallets does not justify the purchase of a battery-powered model. The structure and function are similar to those of a standard pallet truck. It is possible to lift the load both by rudder and by pedal. With each stroke, the forks rise by about 3 cm. The descent takes place by pressing the lever on the rudder. Controlled descent and is at a safe speed. The load must be evenly distributed. As with all lifting appliances, attention must be paid to the safety diagram. Depending on the size and characteristics of the lift, the capacity decreases as the height or distance from the center of gravity increases. They are very robust and mechanically simple products. They rarely have any problems. In the eventuality we have all the spare parts in stock. All models are CE certified and are supplied with a specific use and maintenance manual. A specific license is not required to use the lift. The operator must be trained to be informed. It is necessary that the instructions in the manual are read and respected.
