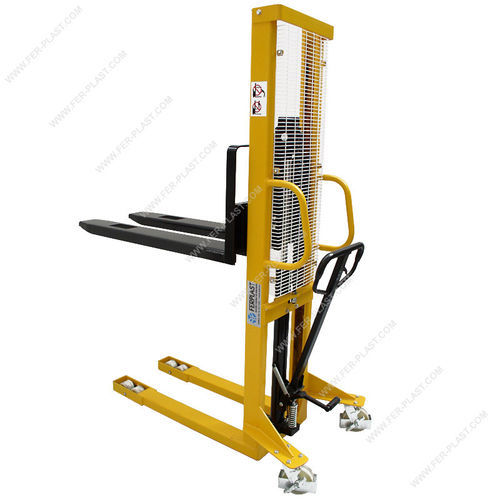

Pallet lift FP SDJ 1016

MANUAL LIFTER FOR PALLETS MOD. FPSDJ 1016 Pallet lifter with hydraulic foot pump and rudder (for low weight can use the pedal), steel frame with fork tip rounded, directional nylon wheels with brakes and double rollers, fixed width forks. WARNING: all the elevators are shipped pre-assembled, tested one by one before packing in a professional manner and with CE certification. MODEL: FP SDJ 1016 Capacity: Kg 1000 Max forks height: mm 1600 Min forks height: mm 90 Forks width: mm 550 Forks length: mm 1100 Weight: Kg 230 Overall dimensions: mm 1640 x 740 x 2080 h The elevators FPSDJ are very practical and robust, recommended where the paving is smooth (e.g. warehouses) where the occasional and not continuous lifting of pallets does not justify the purchase of a battery model. The structure and operation are similar to those of a standard pallet truck. You can lift the load both through rudder or pedal. For each pumping the forks are raised about 3 cm. The descent is done by pressing the lever on the rudder. And it is controlled and at a safety speed. The load must be evenly distributed on the forks. As with all lifting equipment, care must be taken to the security diagram. Depending on the size and characteristics of the elevator, with increasing height or distance from the center of gravity decreases the flow rate. Products are very robust and mechanically simple. It's rare that they have some problems. In the event we have all the spare parts on stock. All models are CE certified and are supplied with specific manual for use and maintenance. For the use of the elevator is not necessary a specific driving license. The operator must be trained and informed. It is necessary that the instructions in the manual are read and respected. - Manual lifter for pallets - Capacity load: 1000 kg - Lifting height: 1600 mm - Hydraulic foot pump and rudder - Steel frame with rounded fork tip - Directional nylon wheels with brakes and double rollers - Fixed width forks - Pre-assembled and CE certified - Weight: 230 kg - Overall dimensions: 1640 x 740 x 2080 mm (h)
