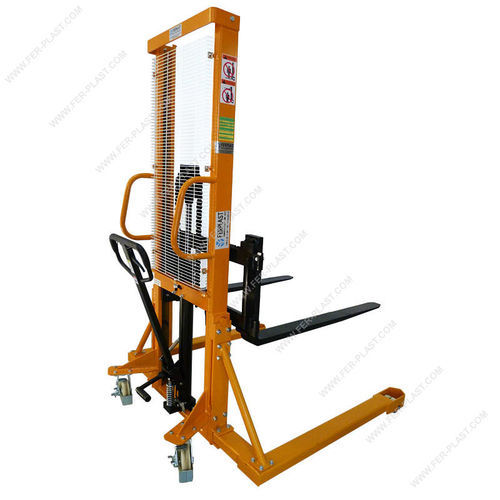

Manual lifter FPSDJ 1016 AS

hydraulicfor pallet

MANUAL LIFTER FOR PALLETS MOD. FPSDJ 1016 AS with wide structure and forks width adjustable Lifts for pallet with hydraulic foot pump and steering or battery operation, steel structure with rounded tip of the forks, directional wheels in nylon with brakes and two front needle roller, fixed forks. (CE certificate). Version with forks width adjustable from 220 to 950 mm and wide frame. WARNING: all the elevators are shipped pre-assembled, tested one by one before packing in a professional manner and with CE certification. MODEL: FPSDJ 1016 AS Load: Kg 1000 H lifting: mm 65-1600 Adjustable distance between forks: mm 220-950 Distance (inner light) between the supports: mm 1250 Forks length: mm 1060 Light from the floor: mm 25 Lifting speed: mm 25 per hit Weight: Kg 336 Overall dimensions: mm 1640x1450x2050 h The elevators FPSDJ are very practical and robust, recommended where the paving is smooth (e.g. warehouses) where the occasional and not continuous lifting of pallets does not justify the purchase of a battery model. The structure and operation are similar to those of a standard pallet truck. You can lift the load both through rudder or pedal. For each pumping the forks are raised about 3 cm. The descent is done by pressing the lever on the rudder. And it is controlled and at a safety speed. The load must be evenly distributed on the forks. As with all lifting equipment, care must be taken to the security diagram. Depending on the size and characteristics of the elevator, with increasing height or distance from the center of gravity decreases the flow rate. Products are very robust and mechanically simple. It's rare that they have some problems. In the event we have all the spare parts on stock. All models are CE certified and are supplied with specific manual for use and maintenance. For the use of the elevator is not necessary a specific driving license. The operator must be trained and informed. It is necessary that the instructions in the manual are read and respected.
