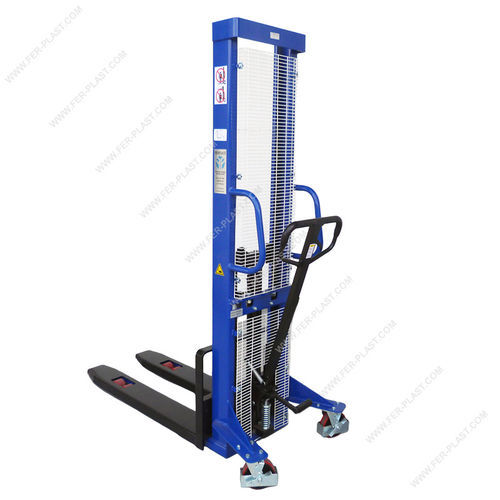

Hand pallet truck FPMT 15-16

hydrauliccompactsteel

MANUAL LIFTING PALLET TRUCK FPMT 15-16 Our FPMT 15-16 model is a robust and reliable manual lifting pallet truck, designed to improve efficiency in loading, unloading, and storage operations with Euro pallets. With a turning radius of 1380 mm and a lifting height of 1600 mm, the lifter is perfect for warehouses, commercial environments, and companies with limited space, thanks to its compact and functional design. FEATURES: - Easy maintenance and durability - Industrial steel frame resistant to corrosion and forks with rounded tips - Wheels with parking brakes - Safety protection grid NOTICE: all lifters are shipped already assembled, individually tested before professional packaging, and supplied with CE certification. Specification: FPMT 15-16 Load capacity: 1500 kg Lifting height (h3): Up to 1600 mm Free lift (h2): Included Lifting height per pump stroke: 20 mm Fork length (l): 1150 mm Fork outside width (b5): 550 mm Turning radius: 1380 mm Type of use: Manual hydraulic Load center (c): 600 mm Effective lifting height (h12): 1515 mm Minimum overall height (h1): 2080 mm Maximum overall height (h4): 2080 mm Tiller height (h14): 1200 mm Ground clearance (m2): 25 mm Ground clearance to top of forks (h13): 90 mm Single fork width (e): 170 mm Aisle width for Euro pallet (Ast): 1945 mm Turning radius (Wa): 1380 mm Fork spacing: 210 mm Dimensions: 1705 x 755 x 2080 mm Weight: 214 Kg Manual pallet lifter Capacity: 1500 Kg Lifting height: 1600 mm
