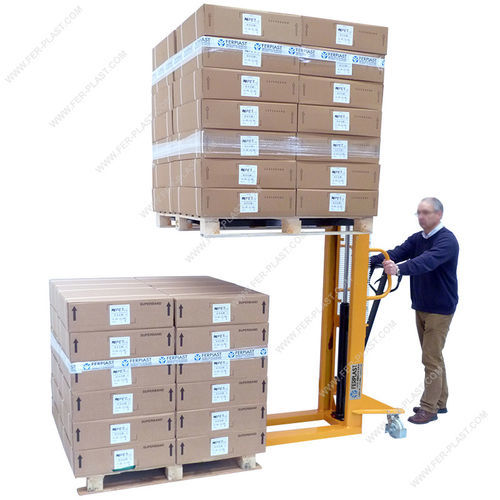

Pallet lift FPSDJ 1500

Manual lifter for pallets model FPSDJ 1500. Manual lifter with a capacity of 1500 Kg and a lifting height of 1600 mm. Features a hydraulic foot pump and rudder, steel frame with rounded fork tips, directional nylon wheels with brakes, and double rollers. Fixed width forks and equipped with a double chain for lifting. All elevators are shipped pre-assembled, tested individually, and come with CE certification. Model: FPSDJ 1500 Capacity: 1500 kg Max forks height: 1600 mm Min forks height: 90 mm Forks width: 550 mm Forks length: 1100 mm Weight: 245 kg Overall dimensions: 1650x755x2080 mm (height) Hydraulic foot pump and rudder Steel frame with rounded fork tip Directional nylon wheels with brakes and double rollers Fixed width forks Double chain for lifting Pre-assembled and CE certified The FPSDJ lifters are practical and robust, ideal for smooth surfaces like warehouses where occasional lifting does not justify a battery model. The structure and operation are similar to a standard pallet truck. Load can be lifted using the rudder or pedal. Each pump raises the forks by about 3 cm. Descent is controlled and safe, performed by pressing the lever on the rudder. Load must be evenly distributed on the forks. Attention to the safety diagram is necessary. Products are robust and mechanically simple, with spare parts available in stock. No specific license is required, but operators must be trained and informed. Instructions in the manual must be read and followed.
