Differents types of connectors:
LX.5
LC
MU
LSH
SC
SC Duplex
FCPC
LSA (DIN)
ST-LEAN
ST-HQ
FSMA
MT-RJ
ODC
FiberGate
SC-RJ IP67
E-2000
|
|
Today and future communication technology demands fast, efficient and safe performance in the data communication process. Large and complex databanks all interconnected must be able to receive and transmit data without outside interferences. CONEC manufactures an extensive fiber optic connector produce line. The CONEC developed and manufactured fiber optic connectors are the right solution for such complex systems. Also the fiber optic connectors such as PLUG-PLUG combination have the fiber ends incorporated.
In order to achieve accurate and precise connections of the fiber ends, very high quality ceramic components are used. The fiber optic connectors made with precision and high quality ceramic components provide a high reliability connection when used with the various adapters.
The standard fiber optic connector series is available in SC, ST, FC and LC. Type MT-RJ is for use with fiber modem applications. All fiber optic connectors are supplied
|
|
|

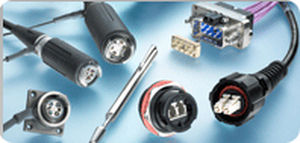

Fischer Connectors offers a wide range of fiber optic connector and cable systems. Rugged, they are specifically engineered to withstand difficult operating conditions (outdoor, submarine, or high pressure applications…).
|
|
The SC-Module from GES Electronic & Service enable simple wiring of optical transmitters and receivers with high transmission rates on long distances and can be equipped by "snap-in" with up to three fiber glass connections of different fiber-types. One complete system can consist of up to seven Modules adding up to 21 optical fiber connections!
Light waves do not have any potential risk concerning spark formation and are absolutely resistant against electric and electromagnetic fields. These advantages particularly enable the use of the SC-Module in explosive environments, in High Voltage Applications and generally under harsh industrial conditions and FTTx-Applications.
|
|
KITS
Amphenol Fiber optic provides termination kits for maintenance on cable assemblies and terminating cable assemblies on single or multiway butt joint and expanded beam connector. These kits contains all necessary tools to terminate connector.
To use the kit with benefits, a minimum training is required.
OTHER FIBER OPTIC PRODUCTS
As part of our Total System Support policy, Amphenol expertise and support are at your service from R&D to prototyping and production of transmission links as well as special devices and cabling or repairs.
|
|
The optical fiber optics has lot of
advantages in disturbe areas:
- insensitivity to the electric disturbances,
- increase in transmitted information
flow,
this is why, fiber optics division has
developed the optical connector 8038,
based on the 838 series connector,
approved by ABB (Asea Brown Boveri)
according to the German standard
BN 411 012 and the IEC 77 and 571
standards.
|
|
|
These fiber optic cable assemblies are designed to be used in cellular towers. Resistant to harsh environments, Amphenol's outdoor cable assemblies are totally immune to interference, EMI, RFI, and ESD including lightning. Cable assemblies come in 2 and 4 positions and are fully mate-able with Huber & Suhner.
|
|
|
Under the brand Multimedia Connect, CAE GROUPE develops a complete range of products dedicated to High speed networks LAN Cat5e / Cat6 / Fiber opic structured cabling system.
|
|
FIBER OPTIC CONNECTORS
The improved security...resistance to EMI, RFI and EMP...and low transmission losses inherent with fiber optic data transmission systems have resulted in thier increasing use in aerospace, defense and telecommunication applications. G & H Technology has met this growing demand by developing an expanded range of fiber-optic interconnect products incorporating single and multiple mode fiber diameters ranging in sizes from 50 to 1000 microns.
|
|
|
HellermannTyton offers a full range of Fiber Optic connectivity products including patch panels, jacks, faceplates, and patch cords. Continually updated, these products meet the latest industry standards, and aggressive system and product warranties are offered with this line.
|
|
Screw coupling optical connector, with metallic shell.
Ferrule of high performance zirconia ceramics, 2.5 mm diameter.
Sprung ferrule end offers stable connection, ensuring correct optical transmission.
Type FC (Conformed to JIS C 5970) Threaded coupling.
For single mode and multimode (Note) The plug housing and ferrule are sold separately.
|
|
|
Easy fiber patch & splice connectivity hardware for universal use - rack or wall mounted. Simplify your real world with factory performance stubbed hardware, patch cords and preconectorized cables.
|
|
In order to ensure the highest technical performance and to provide the optimum solution for a diversity of applications,
LEMO has developed four types of fibre optic contacts; designated F1, F2, F3, and F4. These contacts are designed to
operate with single fibre, multi fibre, and mixed fibre optical/electrical cable constructions and cater to single and multimode
fibres from 9/125 to 1500 µm diameter.
The choice of fibre optic contacts depends upon the following criteria:
- Cable construction (single fibre, multi fibre, mixed optical/electrical)
- Fibre type (single-mode or multi-mode).
|
|
Molex's MTP round jacketed ribbon cable assemblies provide easier installation than traditional flat ribbon cables in optical networks. System designers and installers have found it difficult to route flat ribbon cable in complex networks. The use of round ribbon cables allows the installer greater flexibility when routing multiple jacketed cables in dense system networks.
Molex developed a patented transition sleeve which maintains the routing features of the round cable while allowing the cable to be secured to the MTP connector. The primary benefit of the round ribbon cable is realized with the use of multiple ribbons within a single jacket. Stacked ribbons in traditional flat jacketed ribbon cables are prone to piston in relation to each other, causing attenuation in longer cable assemblies. The round ribbon cable prevents the "pistoning" effect by encasing the ribbons in a solid buffer core, preventing them from moving. Fiber counts up to 24 fibers are currently available while development continues on the 48 and 72 fiber versions.
|
|
Features:
- Exceed TIA/EIA-568-B.3 requirements
- Insertion loss: 0.3dB average (multimode and singlemode)
- Return loss: >26dB (10Gig™ multimode), >20dB (multimode), >50dB (singlemode)
- Include color-specific keys with positive and negative keying features to visually and mechanically distinguish connections to prevent unauthorized mating with unlike keyed or non-keyed adapters
- Part of a complete Keyed LC System that includes Opti-Core® Patch Cords and Pigtails, OptiCam® Pre-Polished Cam Connectors, Opticom® Fiber Adapter Panels (FAPs) and Mini-Com® Adapter Modules
- Translucent housing assembly is laser marked to identify fiber stub fiber type (9µm, 62.5, 50 or 50X)
- Spring-loaded "Senior" rear pivot latch LC connector
- Quick installation; provide field termination in less than half the time of field polish connectors
- Patented re-termination capability provides yield rates approaching 100%
- Factory pre-polished fiber endface eliminates time-consuming field polishing to reduce installation costs, labor, scrap and the number of tools required
- Cam activated fiber and buffer clamp mechanisms provide superior fiber and buffer retention - less sensitivity to fiber tensile loading
- No separate clamps, tools, or steps are required to secure both the fiber and the buffer
- OptiCam® Termination Tool simplifies tooling and termination, and virtually eliminates operator error by providing visual indication of proper termination after the cam step has been completed
- Cable retention boot assemblies consistently provide higher than industry standard cable retention
- Non-optical disconnect maintains data transmission under tensile loads for jacketed cable
- Fiber cable size: accept 900µm tight-buffered fiber with included boot(s); accepts 1.6mm - 2.0mm and 3.0mm jacketed cable with available OptiCam® Cable Retention Boot Assemblies (ten per package)
- For 250µm coated fiber termination, use 250 micron fiber build-up tube kit or fan-out kits
- Ferrule type: 1.25mm zirconia ceramic (highest durability for repeated matings)
- Use OptiCam® Termination Kit (FCAMKIT)
|
|
|
Amphenol Fiber Optic Products is a premier manufacturer of optical interconnect products. Amphenol's experience in fiber optics dates back more than twenty years when the company developed the first industry standard connector, the SMA. Today we offer a complete line of products including fiber management systems, attenuators, jumpers, couplers, and service node cables which all are designed to the most rigorous industry standards.
|
|
This hermaphrodite connector with 12 separate ferrules is designed for extra harsh environmental requirements.
It can be coupled with an identical connector interface or with a receptacle.
Four additional electrical contacts are possible.
Multi mode and single mode
Detachable alignment sleeve body for easy cleaning
Captive protection cap
Additional protection cover possible
|
|
The MTRJ Field offers an easy system to
upgrade from a standard to an environmental
MTRJ.
- Sealed against fluids and dust (IP67)
- Shock, Vibration proof,
- No cabling operation in field and no
tools required for installation
With the patented RJStop ® system you can use a standard MTRJ patchcord in a metallic plug which will protect it from shocks, dust and fluids. No hazardous field cabling.
This metallic plug is connected into a receptacle, using a Tri Start Thread coupling mechanism (MIL-DTL-38999 series III type) with anti-decoupling device for high vibrations.
Optical performance :
- Number of Channel : 1/2/4
- typical Insertion Loss : 0,5db in MM
- Durability 500 mating/unmating cycles
(changes for<0,2 db)
Applications: railway, radars, military headquarters, communication systems on battle fields, naval...
|
|
Application :
C41 indoor (C41 : Communication Control Command Computer Intelligence)
C41 outdoor (C41 : Communication Control Command Computer Intelligence)
Navy indoor
In Flight entertainment
In Flight remote control
Trucking
Robotic machining
|
|
Amphenol extensive range of Connectors for Fiber Optics Links provide Interconnect Solutions for most situations and environments : butt joint or expanded beam technology, single or multi- channel, singlemode or multimode fibers.
Amphenol supplies the complete interconnect assembly, including the connector, termini, fiber and optional accessories.
BUTT JOINT CONNECTORS
The Butt Joint Technology is generally used for indoor or outdoor applications in semi harsh environment.
This connector range is particularly suitable when very low loss links are required. It is also competitively priced.
EXPANDED BEAM CONNECTORS
Expanded Beam Lens Technology guarantees insertion loss and stability of transmission links in extremely harsh environment.
The hermaphroditic lensed connectors are recommended where rapid extendable field connections are required.
|
|
Greene, Tweed's fiber optic connector products meet and exceed today's demands for fast, secure, reliable and environmentally protected transmissions. Greene, Tweed is the exclusive distributor of Lancer Systems fiber optic connectors to our customers. Our fiber optic connectivity products completely guard against fiber optic terminations from liquids, gases and particulate that irreversibly degrade optical fiber without the need for secondary protection. These connectors are corrosion resistant and hermetically sealed--allowing them to withstand the pressures and conditions of harsh environments where the competition falters.
|
|
| ... products without technical information |
| |
|
The Fischer 1053TM Fiber Optic HDTV Camera Connector meets the Broadcast industry’s requirements for an effortless transition to fiber-based HDTV cameras. Proven reliable in the field, it is fast and easy to terminate.
|
|
|
|
