Model: CMT2501;CMT2102;CMT2202;CMT2502;CMT2103;CMT2203;CMT2503
Capacity: 50N; 100N; 200N; 500N; 1kN; 2kN; 5kN
Features:
SANS's line of desktop Electromechanical Materials Testing Machines are designed to test a wide spectrum of materials including metals, plastics, rubber, textiles, paper, yarn, wire, adhesives, ceramics, timber, foils, composites and finished components in tension, compression, flexure or shear. Maximum frame capacities are from 50N to 5kN.
All testing hardware is fully complemented by SANS developed software that turns your hardware into a sophisticated quality analysis system. Be sure to examine the software products to determine which package is right for your application.
Easy to use and operate
1. High accuracy: Measurement accuracy of testing speed, load, crosshead displacement can meet or surpass +0.5% of reading
2. High sampling rate: The sampling rate 50Hz, reach advanced international level
3. High load resolution: Better than 1/300000, no step, and unchanged in full range
4. Multi-cycle control modes: Control system is capable in load cycle, displacement cycle, extensometer cycle or their combination
5. High security: The system can inspect and protect automatically once overload, over currency; Position limiter; Emergency stop
6. Comply with different standards, such as ASTM, BS, JIS, ISO, IEC
|
|
Slip and Friction testing aids in the evaluation of chemicals and additives used to create or minimize the degree of friction between two contacting test specimens.
APPLICATIONS
Paper, Flexible Packaging, Foils, Rubber, Plastics, Wood,
Linoleum, Metal, Printing, Coatings, Composites
SPECIFICATIONS
* Selectable speed from 5 to 43 cm per minute (2 to 17 inches per minute)
* Selectable travel distance from 2.5 to 30.5 cm (1 to 12 in.)
* Meets TAPPI T816, T549, and ASTM D1894
FEATURES
* Digital display, storage and editing of up to 100 readings, and selectable units (COF or grams)
* Settable limits
* Statistics-average, standard deviation, high/low results.
* Report printout with built in printer
* RS-232
* Static and kinetic coefficient of friction calculated in one operation.
* Direct drive arm with unique skid control.
* Sled-connecting mechanism ensures level pulling action.
* Easily interchangeable sleds.
* Full color easy to read Display
|
|
Friction Testers 1 kN (225 lbf)
NEW PRODUCT: Dedicated Friction Tester for Accurate Measurement of Static and Kinetic Coefficient of Friction

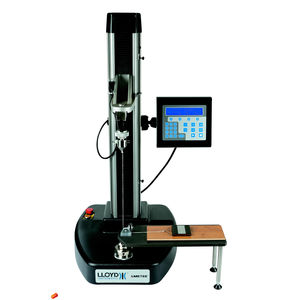

For use in the packaging and printing industries, the Lloyd Instruments FTPlus friction tester accurately measures static and kinetic coefficient of friction. These values are of importance in a wide range of industries including blown film, plastic sheet, paper and coating manufacture.
The FTPlus is a dedicated friction tester conforming to the requirements of ASTM D1894, ISO 8295 and TAPPI T549. The tester includes these standards as user configurable tests, with a further seven available for user custom configuration.
When using NEXYGENPlus material test and data analysis software , the FTPlus may also be configured as a universal material tester to perform tensile, compression, flexural and other mechanical tests up to 1 kN (225 lbf).
|
|
|
|
|
|

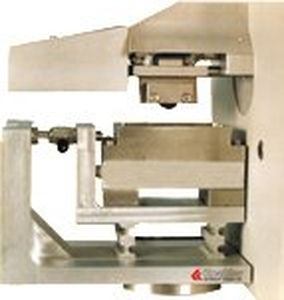

The Lab Master® Slip and Friction is designed to precisely determine the friction characteristics of numerous materials. It removes operator variability from the test procedure with specially designed features to control sled placement rate, orientation/angle, dwell time, and removal.
APPLICATIONS
Flexible packaging, Foils, Paper, Corrugated, Coatings, Metal, Wood, Printing, Nonwovens, Rolling resistance, Writing instruments, Medical devices, Composites, Rubber, Linoleum, Textiles and Leather
SPECIFICATIONS
* Selectable speeds from 0.4 to 550 in. per minute (10 to 13,970 mm per min.)
* Travel distance is selectable from 1 to 8.5 in. (25 to 216 mm )
* Load Cell 50 newtons (11 lb)
* Meets TAPPI T549 and T816, ASTM D1894 and D4521, DIN 53375, and ISO 15359
FEATURES
* Integrated PC system running Windows™ based software
* User can pre-select test speed, delay time, and test distance
* Units are displayed in gram force or COF
* The ability to create user-defined test setup with built-in ASTM, ISO and TAPPI methods.
* Individual test speed selection for both static and kinetic COF
* A high-speed data acquisition system accurately locates and captures the static peak
* A computer controlled elevator system automatically lowers and raises the sled at a repeatable rate
* Automated Elevator System removes operator variability from the test procedure with specially designed features to control sled placement rate, orientation/angle, dwell time, and removal
* Optional peel attachment available for 180° adhesion or release measurements
* Optional heated platen available
|
|
|
Four-ball friction testing machine is used under extraordinary high point touch pressure, through sliding friction, to evaluate the character of lubrication. Include index of PB, PD, ZMZ etc.
|
|
TesT 205 screw testing machines were newly developed based on the
experience of many years and essentially consist out of 4 components:
- 1 force/torque transducer
- 1 machine frame with regulated drive, angle measurement and table
- 1 PC with integrated data acquisition board and motor control
- 1 Software package
The evaluation takes place in real time processing and online during
the test sequences. The force/torque transducer is patented. Its shaping permits the measurement of the 3 quantities: total torque, head friction torque and clamping force without influence of one quantity by one of the others.
Sequences can be programmed by yourselves using the general instructions existing in the software. The available finished software packages according to international standards or standards of the car manufacturers can be adapted to the individual desires of the user at any time.
|
|
