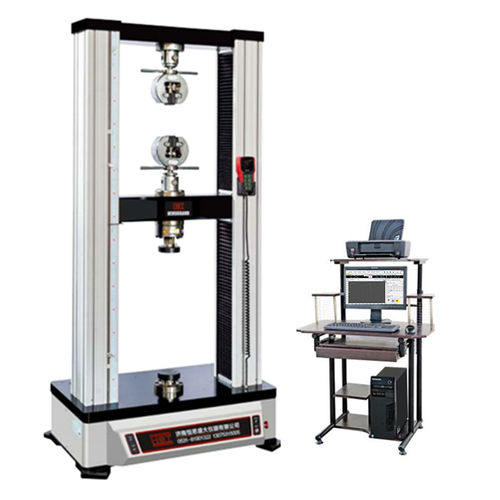

Shearing testing machine MWW seriescompressionuniversalbending
Add to favorites
Compare this product
Characteristics
- Test type
- shearing, compression, universal, bending, life cycle, tension, constant load, push-deformation, calibration, multiaxial fatigue, tensile strength, break force, coefficient of friction, force, torsion, creep, pressure, wire wrapping, peel, tensile stress relaxation, tension/compression, temperature, static load, durability, compression resistance, shearing resistance, quality, endurance, performance
- Operating mode
- computer-controlled, automatic, semi-automatic
- Test material
- for cement prisms and cubes, for cables, material, for plastics, for leather, for flexible materials, for cement and mortar, for geotextiles, for foam, for rubber, for building materials, for cardboard boxes, concrete, for springs, for composite materials, for wood panels, for rebar, for pipes, surface, for adhesive tape, adhesive, for fiber optics, for film, for round bars, for sheet metal, for bars and tubes, for textiles, fabric, for wire
- Sector
- for the construction industry, for research and development, for production, for laboratory, for the beverage industry, for the food industry, for the automotive industry, for quality control, for the optical industry, for medical applications, for railway applications, for the petroleum industry, for the electronics industry, for workshops, for the pharmaceutical industry, for the aerospace industry, for photovoltaic applications, for telecommunications, for the packaging industry, for the textile industry, for the aeronautical industry
- Technology
- electromechanical, electronic, servo-mechanical
- Configuration
- vertical
- Other characteristics
- static, double-column
Description
Computer control wood-based panels testing machine made for the wood manufacturing and quality supervision station.
Standards:
GB/T17657-1999, EN, ASTM, GB/T 16491-1996
Application:
Computer control wood-based panels testing machine made for the wood manufacturing and quality supervision station. Can do the following test: bone strength, surface bone strength, tensile strength, static bending strength, modulus of elasticity test, screw griping test and shear test of of MDF,shaving board, plywood, core-board.
Technical parameter:
Max test load - 10kN - 20kN - 50kN
Control method - Computer automatically control
Accuracy - 0.5 class
Test load test range - 0.2%～100%F·S
Test value relative error - ≤±0.5%
Displacement value relative error - ≤±0.5%
Displacement resolution - 0.01mm
Speed adjusting range - 0.01-1000mm/min
Speed relative error - ≤±0.5%
Effective tensile space (mm) - 700mm
Effective compression space (mm) - 650mm
Effective test width (mm) - 450
Power supply - AC220V±10%，50Hz
