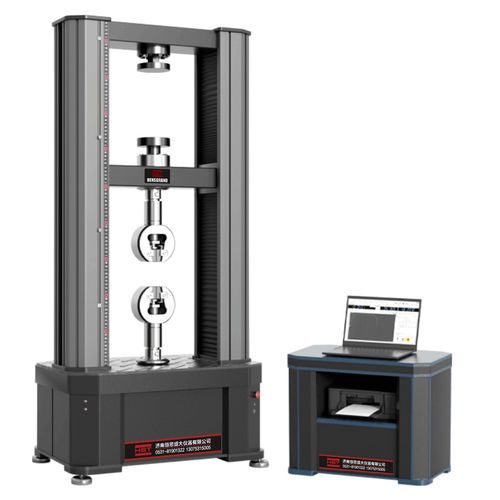

Universal testing machine HST WDW-200D

fatigueforcecompression

Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221. Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4. Standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221 1. Introduction WDW series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness. 2.Specifications: Load Capacity 200kN Calibration standard Class 0.5 according to ISO 7500-1 - Meets ASTM E-4 Testing Load Accuracy ±0.5% Testing Load Range 0.4%～100%FS Load Resolution 1/±500000FS Deformation measuring range 0.2%～100%FS Deformation accuracy ≤±0.5% Deformation resolution 1/±500000FS of the max deformation Test control mode Three closed loop control, stress, strain and displacement Displacement accuracy Within ±0.5% of the value Displacement resolution 0.1μm Testing space (Crosshead Travel) 1130mm Max. Tensile Testing Space(Include standard fixture) 630mm Test width 550mm Overall Dimensions 1010x560x2038mm Weight about 1200kg Power supply 1.5KW,1phase AC220V±10%,50/60Hz
