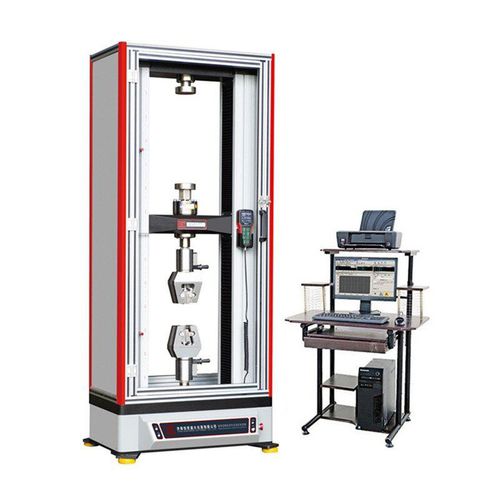

Compression testing machine WDW seriestensileuniversalbending
Add to favorites
Compare this product
Characteristics
- Test type
- compression, tensile, universal, bending, fatigue, tension, shearing, tension/compression
- Operating mode
- automatic, computer-controlled
- Test material
- for textiles, for metallic materials, for rebar, for plastics, for rubber, for composite materials, for workpieces, spring, for wire ropes and strands, for metal wire, for pipes, for round bars, for yarn, for leather
- Sector
- for production, for laboratory, for research and development, for quality control, for the packaging industry, for the textile industry, universal, for railway applications
- Technology
- electromechanical, servo-hydraulic, electro-hydraulic, electro-dynamic
- Configuration
- vertical, benchtop
- Other characteristics
- precision, static, high-stability, high-speed, high-temperature, stainless steel
Description
Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
2. Standards
ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
3.Specifications
• Load resolution : 1/500000
• Resolution of deformation : 0.04um
• Accuracy of displacement : Within±0.5%of indicating load
• Resolution of displacement : 0.01mm
• Test speed(mm/min) : 0.05-1000 stepless arbitrary setting
• Speed accuracy : within ±1% / ±0.5% of set speed
• E-Tensile space(mm) : 800 (can be customized)
• E-Compression space(mm) : 800 (can be customized)
• D-Test width(mm) : 400 (can be customized)
• F-Beam travel distance(mm) : 1140
• H-Workbench thickness(mm) : 30
• I-Base height(mm) : 210
• Power supply : AC220V±10%50Hz/60Hz (can be customized)
2. Standards
ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
3.Specifications
• Load resolution : 1/500000
• Resolution of deformation : 0.04um
• Accuracy of displacement : Within±0.5%of indicating load
• Resolution of displacement : 0.01mm
• Test speed(mm/min) : 0.05-1000 stepless arbitrary setting
• Speed accuracy : within ±1% / ±0.5% of set speed
• E-Tensile space(mm) : 800 (can be customized)
• E-Compression space(mm) : 800 (can be customized)
• D-Test width(mm) : 400 (can be customized)
• F-Beam travel distance(mm) : 1140
• H-Workbench thickness(mm) : 30
• I-Base height(mm) : 210
• Power supply : AC220V±10%50Hz/60Hz (can be customized)
