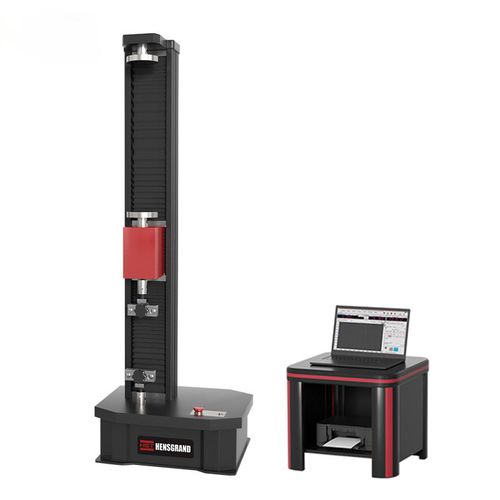

Tension and compression testing machine WDW seriescompressiontensileuniversal
Add to favorites
Compare this product
Characteristics
- Test type
- tension and compression, compression, tensile, universal, compression resistance, bending, static load, tension, fatigue, shearing, durability, performance, pressure, tensile strength
- Operating mode
- computer-controlled, automatic, semi-automatic, PLC-controlled
- Test material
- spring, for rubber, for materials, for round bars, for plastics, for cables, for composite materials, for rebar, for cardboard boxes, for leather, for plastic sheets, for pipes, for electronic components, for textiles, for yarn, for paper, for bars and tubes, for plastic film
- Sector
- for workshops, industrial, for laboratory, for research and development, for the automotive industry, for telecommunications, universal, for quality control, for the petroleum industry, for railway applications, for the construction industry, for the aeronautical industry, for the electronics industry, for medical applications, for the aerospace industry, for the packaging industry, for the pharmaceutical industry, for the textile industry
- Technology
- digital, electromechanical, electronic, servo-hydraulic, mechanical, electro-hydraulic, dynamic, electric, thermomechanical, pneumatic, electromagnetic, electro-dynamic, electrochemical
- Configuration
- vertical
- Other characteristics
- precision, high-stability, double-column, high-speed, 4-column, with touchscreen, high-temperature, rugged, stainless steel
Description
Applicable for wide range of material for tension, compression, bending, shearing and low cycle test.
Standards:
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Specifications
Max. Load(kN)
01,02,05,1,2,3,5
10
20
30
Calibration standard
ISO 7500
Load accuracy
Class 0.5
Load range
0.4%～100%F·S
Resolution of displacement(mm)
0.01
Test speed(mm/min)
0.05-1000 stepless arbitrary setting
Speed accuracy
within ±0.5% set speed
Tensile space(mm)
670
615
633
633
Compression space(mm)
670
615
633
633
Working environment
Room temperature 10℃ ~ 30℃,relative humidity≤80%
Power supply
AC220V±10%,50Hz/60Hz(can be customized)
Grips
Wedge type, plate type and other grips as consumer’s demand
Dimension(mm)
450*335*1351
500*400*1495
500*400*1525mm
Gross Weight(KG)
100
110
120
