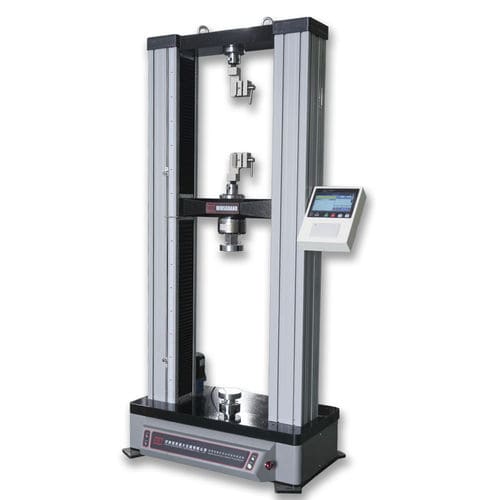

Fatigue testing machine WDS-E tensilecompressionuniversal
Add to favorites
Compare this product
Characteristics
- Test type
- fatigue, tensile, compression, universal, vibration, bending, tension, friction, shearing, pressure, abrasion, shearing resistance, push-deformation, performance, torsion, tension and compression, hardness, wire wrapping, mechanical, temperature, tensile strength, static load, force, durability, creep, compression resistance, tensile stress relaxation
- Operating mode
- computer-controlled, PLC-controlled, motorized
- Test material
- for building materials, for materials, for plastics, for textiles, for rubber, for electronic components, fabric, for adhesive tape, for foam, for fiber optics, for pipes, for flooring elements, for cardboard boxes, concrete, spring, for rebar, for geotextiles, for water nozzles, for compressors, for packaging, for cables, for shower, for cement prisms and cubes, for plastic pipes, breathing apparatus and face mask, adhesive, for leather, for cement and mortar, for composite materials, for flexible materials, for wire, for round bars, for plastic film, vehicle, PET bottle, for pipes, for sheet metal, for bars and tubes
- Sector
- for research and development, for laboratory, for production, for the automotive industry, for medical applications, for the food industry, for quality control, for the construction industry, for the textile industry, for workshops, for the electronics industry, for the aerospace industry, for the packaging industry, for the aeronautical industry, agricultural, for railway applications, for the petroleum industry
- Technology
- electromechanical, digital, servo-mechanical, electronic, electro-hydraulic
- Configuration
- vertical
- Other characteristics
- precision, static, high-stability, double-column, 4-column, high-temperature, rugged, with touchscreen
Description
Application It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable fo
Standards:
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Specifications
Structure
Doublecolumn double spaces
Max. Load(kN)
10
20
50
100
Load accuracy
Class1according to ISO 7500-1 - Meets ASTM E-4
Load range
2%～100%F·S
Accuracy of test load
≤±1%
Resolution of displacement
0.01mm
Test speed
0.01-1000mm/min
0.01-1000mm/min
0.01-500mm/min
Speed accuracy
within ±1% set speed
Tensile space
670mm
670mm
770mm
650mm
Compression space
900mm
900mm
1000mm
1000mm
Test width
450mm
450mm
450mm
550mm
Dimension(L*W*H)
850x590x1750mm
850x590x1750mm
840x570x1850mm
950x660x2000mm
Wight
370kg
370kg
420kg
690kg
Power supply
1kW, AC220V±10%,50Hz/60Hz
