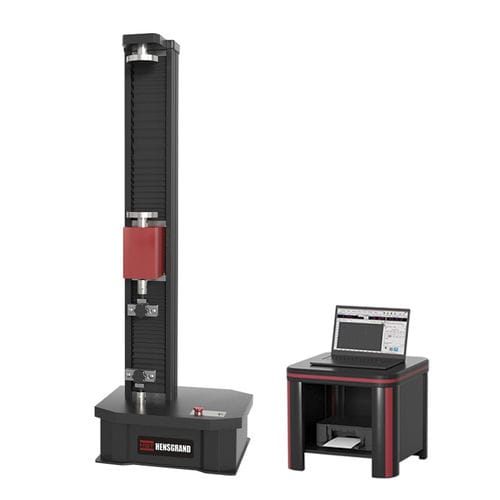

Universal testing machine HST WDW-H compressiontensilecompressive strength
Add to favorites
Compare this product
Characteristics
- Test type
- universal, compression, tensile, compressive strength, bending, fatigue, shearing, force, durability, tension/compression, static load, tensile strength
- Operating mode
- automatic, computer-controlled, semi-automatic, motorized
- Test material
- for rubber, for metallic materials, for insulating materials, for workpieces, for metallo-ceramic materials, for pipes, for foam, for plastics, for wire ropes and strands, for plastic pipes, for metal wire, for wire harness, for leather, for building materials, for packaging, for composite materials, for sheet metal, spring, for textiles
- Sector
- industrial, for laboratory, for research and development, for quality control, for the construction industry, for the packaging industry, for workshops, for the textile industry, universal
- Technology
- electromechanical, electronic, mechanical, dynamic
- Configuration
- vertical, benchtop
- Other characteristics
- precision, static, high-stability, double-column, high-speed, customized
Description
Applicable for wide range of material for tension, compression, bending, shearing and low cycle test.
Standards:
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Specifications
Max. Load(kN)
01,02,05,1,2,3,5
10
20
30
Calibration standard
ISO 7500
Load accuracy
Class 0.5
Load range
0.4%100%F·S
Resolution of displacement(mm)
0.01
Test speed(mm/min)
0.05-1000 stepless arbitrary setting
Speed accuracy
within ±0.5% set speed
Tensile space(mm)
670
615
633
633
Compression space(mm)
670
615
633
633
Working environment
Room temperature 10℃ ~ 30℃,relative humidity≤80%
Power supply
AC220V±10%,50Hz/60Hz(can be customized)
Grips
Wedge type, plate type and other grips as consumer’s demand
Dimension(mm)
450*335*1351
500*400*1495
500*400*1525mm
Gross Weight(KG)
100
110
120
Standards:
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Specifications
Max. Load(kN)
01,02,05,1,2,3,5
10
20
30
Calibration standard
ISO 7500
Load accuracy
Class 0.5
Load range
0.4%100%F·S
Resolution of displacement(mm)
0.01
Test speed(mm/min)
0.05-1000 stepless arbitrary setting
Speed accuracy
within ±0.5% set speed
Tensile space(mm)
670
615
633
633
Compression space(mm)
670
615
633
633
Working environment
Room temperature 10℃ ~ 30℃,relative humidity≤80%
Power supply
AC220V±10%,50Hz/60Hz(can be customized)
Grips
Wedge type, plate type and other grips as consumer’s demand
Dimension(mm)
450*335*1351
500*400*1495
500*400*1525mm
Gross Weight(KG)
100
110
120
