Shearing testing machine HGW series

compressionvibrationtensile

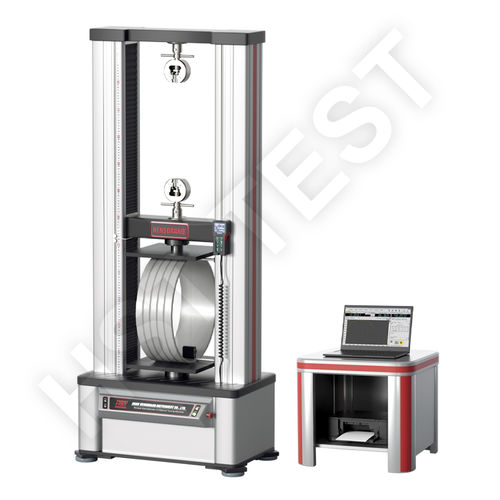

Ring Stiffness Testeris used to determine the ring stiffness of thermoplastics pipes having a circular cross section. Standards: ASTM D2412,ISO 9969,ISO 9967 Application: Ring Stiffness Testeris used to determine the ring stiffness of thermoplastics pipes having a circular cross section. It is widely applied in ferrous metallurgy, construction and building materials, aerospace, machine manufacturing, wire and cable, rubber and plastics, textile, household appliance and other industries, and also research institution, colleges & universities, industrial and mining enterprises and other departments. Specification: Max. Load 20KN 50KN 100KN 200KN 300KN Calibration standard Class 0.5 Testing Load Accuracy ±0.5% Load range 0.4%~100% F.S Load Resolution 1/500,000FS Deformation accuracy ≤±0.5% of 0.4%~100% of rated capacity Displacement resolution 0.001mm Test speed(mm/min) 0.001-1000 0.001-1000 0.001-500 0.001-500 0.001-500 Crosshead speed ±0.5% of set speed Pipe diameter range Customized(110mm-3000mmm) Effective testing width 1000mm or (according pipe diameter Custom) Compression Testing Space Customized (According pipe diameter Custom) Position limit switch Upper and lower lights Power supply AC220V±10%, 50Hz/60Hz
