A portable glossmeter is a compact instrument for making objective measurements of the surface brilliance of such materials as paint, plastic and paper.
A glossmeter measures light reflected from a surface by specular reflection. Results depend on the angle of incidence of the light source and the sensor. Five standard angles cover the gamut of applications: 20°, 45°, 60°, 75°, 85°.
A glossmeter can use from one to three angles of measurement, depending on how sophisticated it is. Choice will be made on the basis of intended use:
- 20° for high-brilliance surfaces
- 60° for surfaces of medium brilliance
- 85° for low-brilliance surfaces
- 45° for ceramics, textiles, etc.
- 75° for paper
 |
 |
One angle hand-held glossmeter 60° | PicoGloss 560 MC ElektroPhysik Dr. Steingroever GmbH & Co. KG
Small, portable gloss measuring device with universal 60° measuring geometry and mirror-gloss switch-over. The PicoGloss 560 requires only one calibration...
 |
 |
The Multi Gloss 268Plus is an ultra compact portable gloss meter with three measuring angles in full accordance with ISO, ASTM,...
 |
 |
Three angle hand-held glossmeter 20°, 60°, 85° | MG-268 Konica Minolta
The Multi Gloss 268Plus is an ultra compact portable Gloss Meter with three measuring angles in full accordance with ISO, ASTM,...
 |
  |
One angle hand-held glossmeter 560 MC ERICHSEN
With a geometry of 60°. consisting of: Gloss sensor with battery LC-display...
 |
 |
Hand-held glossmeter (orange peel / DOI) wave-scan dual BYK Gardner USA
Orange Peel and DOI measurement on high to semi gloss surfaces ... appearance control is no longer limited to final topcoat inspection. The...
 |
 |
Hand-held glossmeter (orange peel / DOI) wave-scan dual BYK Gardner
Total Appearance Measurement How to characterize a perfect finish? Paint appearance is described by its brilliance and smoothness, often referred to as DOI (Distinctness of Image) and Orange Peel. For years the BYK-Gardner orange peel and DOI meters have been used at all major car makers and suppliers...
 |
 |
Two angle hand-held glossmeter IG-410 HORIBA Process & Environmental
The IG-410 measures ultra high gloss surfaces such as polished metal. The meter has ten times greater measurement range than the conventional model. Even mirror finishes can be measured too. Weighing in...
 |
 |

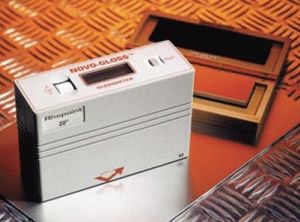

Three angle hand-held glossmeter 20°, 60°, 75° | Novo-Gloss Testing Machines Inc
The Novo-Gloss 20/60/75ºS gloss meter is a fully featured instrument measuring the gloss of surfaces. The 60º angle is the reference angle and can be used to measure any surface from matt...
 |
 |
Three angle hand-held glossmeter 20°-60°-85° | Novo-Gloss Trio Rhopoint Instruments
The Novo-Gloss Trio glossmeter is a fully featured, extremely easy to use instrument measuring the gloss of all flat surfaces. The 60º is the reference angle and is be used to measure any surface from matt to mirror...
 |
 |
Hand-held glossmeter (haze / orange peel / DOI) Model 806H TRICOR Systems Inc.
Analyze Surface Gloss, DOI, Orange Peel & Haze The Model 806H Hand-Held Surface Analysis System measures and analyzes the gloss level, distinctness of image (DOI), orange peel and haze index of flat and curved surfaces regardless of their texture or color. This high-resolution...
 |
 |
Three angle hand-held glossmeter HP-380 Beijing TIME High Technology
Features: *The appearance design conforms to physical dynamics,high accuracy and stable performance *Multi-angle one-key measurement: One-key operation can complete three angles of measurement to meet...
 |
 |
One angle hand-held glossmeter Uni Gloss 60 Konica Minolta Sensing
The UG-60Plus, is an affordable Gloss Meter with a 60° measuring angle, suitable for samples with medium...
