Hose size : 2" 4 SP
.Swage force : 240 tons
.Opening : Die diameter + 38 mm
.Standard dies supplied : 15 18 21 27 33 39 45 51 57 66
.Motor : 4kW / 230-400V 3ph (2,2 kW / 220V 1 ph possible on option)
.Quick change tool : SRC on option
|
|
|
|
|
|
Eaton Aeroquip® MatchMate® ET1280 Crimp Machine
Assembles Hose As Easy As One, Two, Three
BADEN-BADEN, Germany ... Diversified industrial manufacturer Eaton Corporation recently introduced the Aeroquip® MatchMate® hose assembly system. MatchMate guides users through three simple steps to assemble Aeroquip high-quality hoses and through-the-cover (TTC) fittings. This year, Eaton's made hose assembly even easier by introducing the new MatchMate ET1280 crimp machine.
The CE certified ET1280 crimp machine is available for 220 volt hydraulic, hand pump, air/hydraulic; 110 volt hydraulic; and 12 volt electric. ET1280's flexible power supply with the popular MatchMate hoses and fittings make small-batch assemblies in the factory or field as easy as one, two, three. ET1280 unites the best of Aeroquip engineering, supported through the Eaton Walterscheid machining center of excellence. Eaton Walterscheid produces industry leading tube-forming machines, the Walform, and the Walform Plus.
MatchMate hose and fittings are each marked with symbols, indicating that they go together. The no skive trithiocarbonate chemistries (TTC) fittings can then easily be crimped or mated with one of the color-coded crimp dies included in the 8-die package available with the machine. The visual identification system enables dealers and customers to make hose connections quickly, simply and safely.
|
|
SWAGING FORCE 300 Ton
CAPACITY ON 6 SPIRALS HOSE 2" *
CAPACITY ON 4 SPIRALS HOSE 2" interlock
CAPACITY ON 2 SPIRALS HOSE 3"
MAXIMUM CRIMPING Ø 80 mm
DIES OPENING Ø + 43mm
STANDARD VOLTAGE 400V 50Hz 3PH
MOTOR POWER 5,5 KW
WEIGHT WITH OIL 429 KG
DIMENSIONS L x D x H 760 x 580 x 780 mm
DISPENSER QUICK CHANGE OPTIONAL
STORAGE RACK OPTIONAL
ELECTRIC PEDAL OPTIONAL
INTERLOCK DIES OPTIONAL
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
ELECTRIC LIMIT SWITCH included
DOUBLE ACTING CYLINDER included
OIL included
|
|

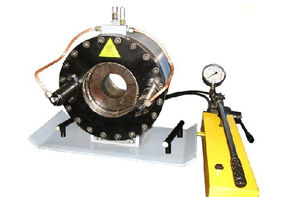

Weight : 55 kg
.Hose size : up to 1 1/4" 4 SP
.Swage force : 137 tons
.Opening : Die diameter + 18 mm
.Standard die packages : 15 21 27 33 or 15 18 21 27 33 39 45
.Double speed pump
|
|
|
Lightweight, portable crimper designed for reliability in field service. Comes with separate box, designed to contain complete set of dies. The pneumatic version has a foot-operated air pump. Crimps no-skive MegaCrimp® couplings for wire-braid hose up to 1".
|
|
|
|
|
|
CERTIFIED PERFORMING BUSINESS: A NEW ERA IN THE CRIMPING WORLD!
Gates' new range of custom-designed self-assembly machinery:
This new machinery programme offers a grease-free, ergonomic and user-friendly package for professional service in a workshop environment, for mobile operations and even for service in the field. It ensures the production of factory quality assemblies fully complying with European Directives and the most stringent international standards
The new range includes hose cutting, marking and crimping machines and comes with the necessary accessories such as a Quick Die Change Tool (QDC) and marking dies.
All machines are designed to be user-friendly and ensure fast, comfortable handling. In all electrical-driven crimpers, a standard built-in storage rack is positioned for quicker die selection, while die sets are logically organised and within easy reach of the operator.
For service in the field Gates has developed a range of small, portable and lightweight crimpers specifically designed for end-users on site so unnecessary downtime can be avoided. These portable machines come with a detachable die storage case, solid and durable handles and resistant rubber protection layers.
Providing the customer with maintenance-free and cost-competitive machinery is an aspect of Gates Integrated System Approach. Within this approach Gates does not only offer a wide array of hoses and couplings manufactured to stringent tolerances but also rigorously validated assembly machines and dies together with optimal crimp data. All these components are designed together to guarantee a perfect fit, enhanced safety and high-quality performance.
|
|
The PC150H offers the ease of use of a horizontal crimper with the power and precise adjustment capabilities usually found in more costly models.
PC200 Series - Including PC200-1, PC200-2 and PC200-3
The PC200 is a high volume, high capacity, stationary crimper, utilizing microprocessor control for the fastest, most accurate crimping system available.
PC400 Series - Including PC400 and PC400-1
The PC400 is a high volume, high capacity, stationary crimper, utilizing microprocessor control for the fastest, most accurate crimping system available.
|
|
|
The PC125 portable crimper with its open design, removable pusher and easy to use, spring loaded die set, is designed for higher production volume and repetitive use. Crimp diameter is set and controlled with an easy to read micrometer. The PC125 is packaged for shop service and includes the crimper and 1 HP, 110V electric pump on a common base, compression ring, pressure plate, magnetized die ring pusher, stop/start remote pendant switch, metric micrometer, adjustable coupling stop and adjustable retraction stop.
|
|
Model CC24
Crimping range (mm) 1 10 — 61
Crimping range (inches) 1 0.39 — 2.40
Crimping force (kN) 1300
Crimping force (tonnage) 130
Crimpings / hour 2 1280
Max. hose size (inches) 1¼
Die set 3 P20
Maximum opening (mm) 4 25
Master die (D / L mm) 84 / 80
Master die (D / L inches) 3.31 / 3.15
Control IS / VS
Motor (kW) 4
Motor (HP) 5.5
QC tool 14 O
Foot pedal 15 O
Control unit: integrated X
Control unit: C1 —
Control unit: C2 —
Back stop device: mechanic O
Back stop device: electric 15 X
Mirror —
Pressure control P1 16 —
Pressure control P2 16 —
AGS auto greasing 16 —
Remotic control unit —
Counter L1, L2, L3 —
ASCII signal 17 O
VS PLUS control 17 O
Length (mm) 597
Width (mm) 586
Height (mm) 613
Length (inches) 23.6
Width (inches) 23.1
Height (inches) 24.2
Weight (kg) 178
Weight (lbs) 393
|
|
Service Crimpers.
Max Hose Diameter: 2” R13 *
4” ½ industrial
Crimping force: 340 T
Dies Size : 6.8-9-12-14-17-20-24-28-32-36-40-44-47-50-54-57-62-67-71
Max Die Opening w/o Dies 160 mm.
Max opening Die Size plus : 38 mm.
Dimensions : L 736 mm x H 810 mm x l 510 mm.
motor power : 3,7 KW
Electrical Power : 400 V 50 Hz 3 Ph
Weight : 265 kg
Back Stop
Quick change tool.
Pedal
To Store for 9 sets of Dies.
According to the hose and fitting.
|
|
Model P16AP
Crimping range (mm) 1 10 — 45
Crimping range (inches) 1 0.39 — 1.77
Crimping force (kN) 955
Crimping force (tonnage) 95
Crimpings / hour 2 —
Max. hose size (inches) 1
Die set 3 P16
Maximum opening (mm) 4 20
Master die (D / L mm) 39 / 64
Master die (D / L inches) 1.54 / 2.51
Control manual
Motor (kW) air pressure
Motor (HP) air pressure
QC tool 14 —
Foot pedal 15 —
Control unit: integrated X
Control unit: C1 —
Control unit: C2 —
Back stop device: mechanic —
Back stop device: electric 15 —
Mirror —
Pressure control P1 16 —
Pressure control P2 16 —
AGS auto greasing 16 —
Remotic control unit —
Counter L1, L2, L3 —
ASCII signal 17 —
VS PLUS control 17 —
Length (mm) 337
Width (mm) 402
Height (mm) 271
Length (inches) 13.3
Width (inches) 15.9
Height (inches) 10.7
Weight (kg) 28
Weight (lbs) 62
|
|
.Hose size : 2" 4 SP and 4" industrial
.Swage force : 263 tons
.Opening : Die diameter + 52 mm
.Standard dies supplied : 15 18 21 27 33 39 45 51 57 66 73. Bigger sizes also available up to 122.
.Motor : 4kW / 230-400V 3ph (2,2 kW / 220V 1 ph possible on option)
.Quick change tool : SRC on option
.Alternative : can be supplied with 5.5 kW power pack
|
|
Hose size : 2" 4 SP and 6" industrial
. Swage force : 320 tons
. Opening : Die diameter + 55 mm
. Opening without dies : 260 mm
. Maximum crimp diameter 230 mm
. Motor : 5,5kW / 230-400V 3ph
|
|

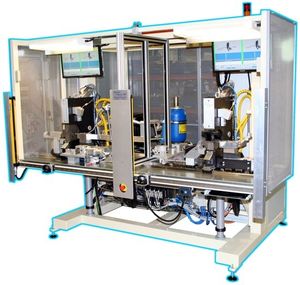

Tube Terminator
Hand-guided one-step crimp/seal copper and aluminum tube welder
Seals refrigerator/air conditioner tubing -- even when charged
Produces quick, airtight bonds without brazing
|
|
