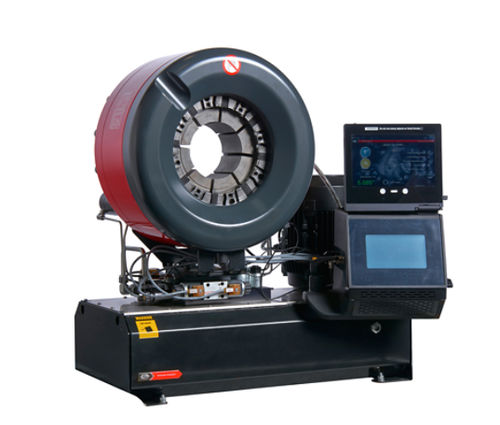

Hydraulic hose crimping machine GC™96TSi™

for hoseshydraulichigh-capacity

Product Overview
The GC96TSi™-3 crimper is capable of crimping 3" six-wire and up to 6" I.D. industrial hose. This crimper allows distributors to make reliable and professional looking assemblies providing more value to the end user. The large crimper head allows industrial hose assemblies to be made with a variety of terminations using crimpable ferrules and sleeves. The GC96TSi™ crimper has additional versatility since in conjunction with optional spacer dies and GC32™ dies; it can make Gates hydraulic hose assemblies also.

• Electronic Touch Screen control panel for fast input of crimper settings.
• Horizontal front-end feed makes crimping easier and convenient.
• 550 ton force that allows crimping of a wide variety of couplings.
• 2 speed die closure and rapid retract permits fast assembly fabrication.
• Full range die sets that enable product of a wide range of hoses.
• Crimps up to 3" 6 Wire and 6" industrial hoses.

Intuitive Smart Crimping
Our most advanced hydraulic hose crimper is designed exclusively to assemble Gates products using an intuitive touch-screen control panel that continually accesses updated Gates eCrimp specifications. The touch screen tablet is removable which allows for live feedback and visual diagnostics. Additionally, this provides a more convenient way to get machine updates in environments that don’t have constant access to Wi-Fi. The GC96TSi was thoughtfully designed to simplify the user experience with features such as the horizontal load and rear mounted mirror for safe and effective crimping. Likewise, the self-greasing head and build-up reducing valving keeps the crimper going with less maintenance.

Features and Benefits

• On-board Gates eCrimp™ specifications continually updated via Wi‑Fi.
• Reduced maintenance with a self-lubricating crimper head using high-compression grease.
• Standard quick change tool for simple die loading.
• Horizontal front-end feed makes crimping easier and convenient.
• 550 ton force that allows crimping of a wide variety of couplings.
• Full range die sets that enable product of a wide range of hoses.
• Improved assembly speed with a pre-filled valve for fast attack.
• Magnetic charge port for constant tablet power while docked.

Available Parts (table)
Part # | Product # | Description
74800008 | 74800008 | GC96TS
78392/GC96TSI-3 | 74809003 | 78392 GC96TSI-3 CRIMPER
78640/GC96 TSI 3 STAND | 74809010 | 78640 GC96 TSI-3 STAND
78968/GC96TSI POTENTIOMETER | 74820132 | 78968 GC96TSI POTENTIOMETER
| 74827263 | GC96TSI INVERTER

Technical specifications

• Crimp capacity: up to 3" six-wire and up to 6" I.D. industrial hose.
• Crimp force: 550 ton.
• Die action: 2-speed die closure and rapid retract.
• Die sets: Full range die sets; compatible with optional spacer dies and GC32™ dies for Gates hydraulic hose assemblies.
• Controls: Electronic touch-screen tablet control panel, removable tablet for diagnostics and updates; on-board Gates eCrimp™ specifications (Wi‑Fi update capable).
• Feed orientation: Horizontal front-end feed for ease and convenience.
• Maintenance features: Self-greasing crimper head (high-compression grease); build-up reducing valving; pre-filled valve for fast attack.
• Tooling: Standard quick change tool for simple die loading; magnetic charge port for tablet while docked.
• Included/related service parts: variants and accessories listed in parts table (GC96TS, GC96TSI-3 crimper, stand, potentiometer, inverter).
