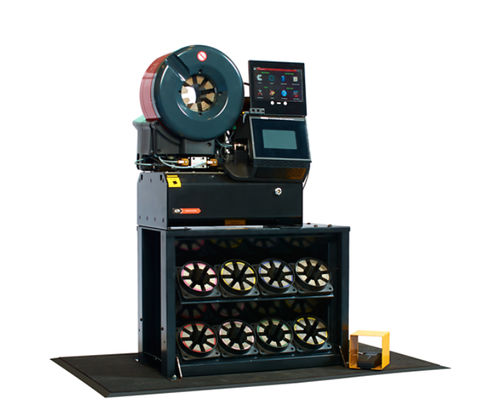

Hydraulic hose crimping machine GC™32TSi™

automatichydraulichigh-capacity

Overview
The Gates GC32TSi (part #78827) is a smart hydraulic hose crimper with an integrated touch‑screen tablet and on‑board access to the Gates eCrimp® database. It combines precision measurement, automated guidance and advanced die retention to produce factory‑quality, leak‑free hose assemblies for industrial applications.

Key Capabilities

• Touch‑screen tablet control with intuitive icon navigation.
• Crimp capacity up to 2" 6‑wire and 2.5" industrial hoses.
• Pinch decompression and precision crimp‑diameter measurement to ensure O.D. tolerance.
• Maximum crimping force: 420 tons.
• Rack and stand sold separately; compatible with GC™32 and GC96™ crimpers.

Features and Benefits

• On‑board Gates eCrimp® specifications updated via Wi‑Fi for correct die and setting selection.
• Self‑lubricating crimper head reduces maintenance frequency.
• Quick‑change die system with machined die retention plates for fast, secure die loading.
• Horizontal front‑end feed for easier assembly handling.
• Full‑range die sets to cover a wide hose range and improve production flexibility.
• Pre‑filled valve and 2‑stage pump for faster cycle times.
• Magnetic charge port for continuous tablet power while docked.
• Electrical: 208–260V, 50–60 Hz, single phase, 20 A (NEMA L6‑20 plug); often listed as 220V single phase.
• Rated working pressure (max): 4,800 psi (330 bar).
• Example feature dimensions: 27" x 20" x 30".

Product Details (table)
Part #: 78827 / GC32TSi 220V
Product #: 74807004
Description: 78827 GC32TSI CRIMPER 220V
UPC: 770075556886
Height (in): 37
Height (mm): 940
Specifications: Machine dimensions 23" W x 19.5" D x 37" H. Stand (optional): 31 3/4" W x 16 1/2" D (height adjustable) x 25 1/2" H. Maximum crimping force: 420 tons. Motor: 5 HP. Power source: 208–260V, 50–60 Hz, 1 phase, 20 A (NEMA L6‑20). Pump: 2‑stage.
Width (in): 23
Width (mm): 584

Construction
Color: Red

Packaging details
Customer Pack: 1
Weight (lbs.): 557.4

Technical specifications

• Model / commercial name: GC™32TSi™
• Part number (variant): 78827 (GC32TSI 220V)
• Product number: 74807004
• UPC: 770075556886
• Maximum crimping force: 420 tons (features reference 410 tons in some materials)
• Crimp capacity: up to 2" 6‑wire and 2.5" industrial hoses
• Rated working pressure (max): 4,800 psi (330 bar)
• Motor: 5 HP
• Power source / Electrical: 208–260V, 50–60 Hz, single phase, 20 A (NEMA L6‑20 plug)
• Pump: 2‑stage
• Machine dimensions: 23" W x 19.5" D x 37" H
• Stand dimensions (optional): 31 3/4" W x 16 1/2" D x 25 1/2" H (height adjustable)
• Weight (packed): 557.4 lbs
• Color: Red
• Connectivity: eCrimp® database access via Wi‑Fi; removable touch‑screen tablet with magnetic charge port
• Maintenance features: pinch decompression, precision crimp measurement, machined die retention plates, quick‑change die loading, self‑lubricating crimper head
